Dell Precision 7875 Tower - Installing the External Solid-State Drive Assembly

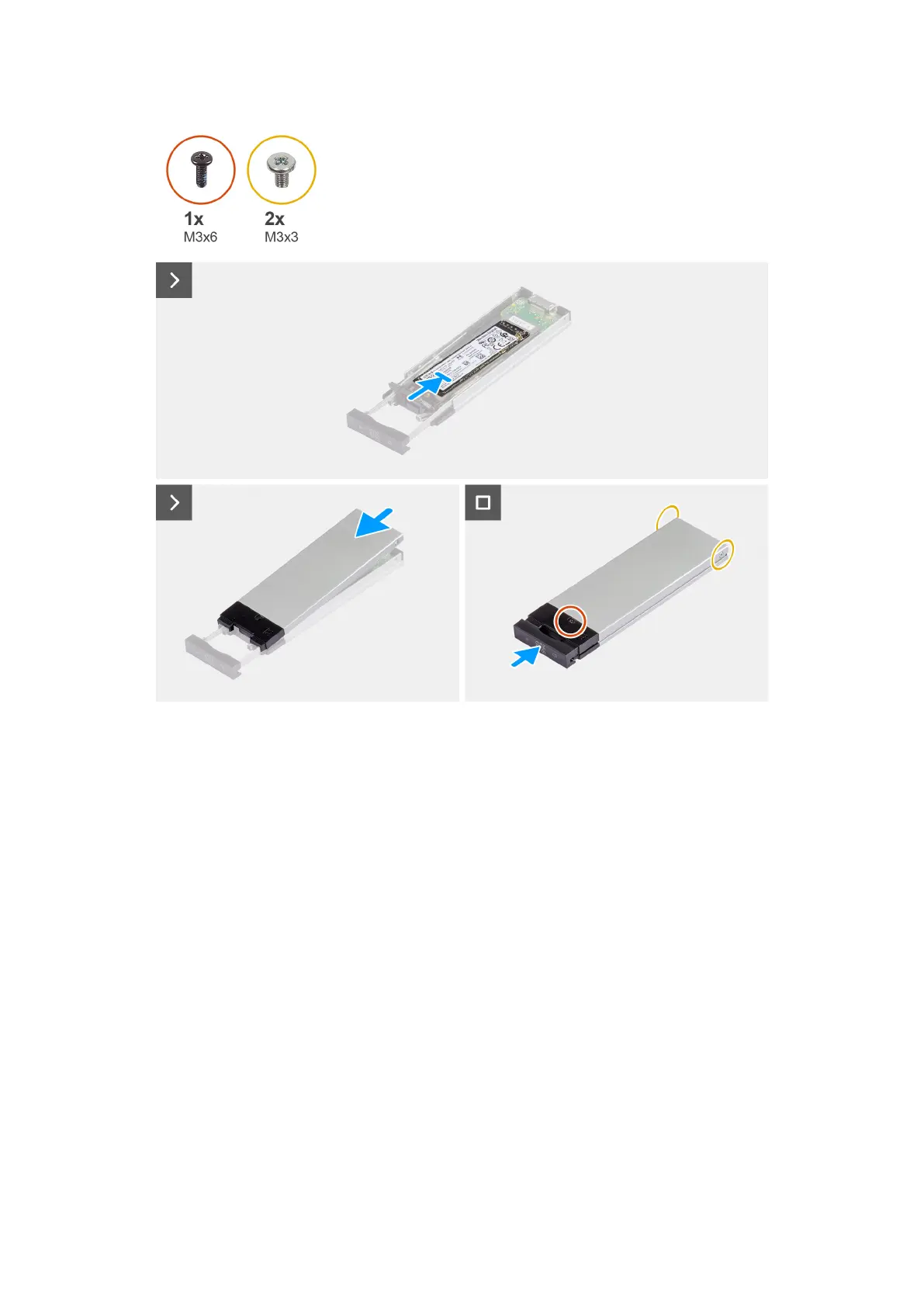

Figure 36. Installing the external M.2 2280 solid-state drive
Steps
1. Align the notch on the solid state drive with the tab on the solid-state drive connector.
2. Insert the solid state drive at a 45-degree angle into the slot on the solid-state drive assembly.
3. Place the cover over the solid-state drive assembly.
4. Install the single (M3x6) screw and the two (M3x3) screws to secure the cover to the solid-state drive assembly.
Next steps
1. Follow the procedure in After working inside your computer.
Installing the external solid-state drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the external solid-state drive assembly and provide a visual representation of the
installation procedure.
