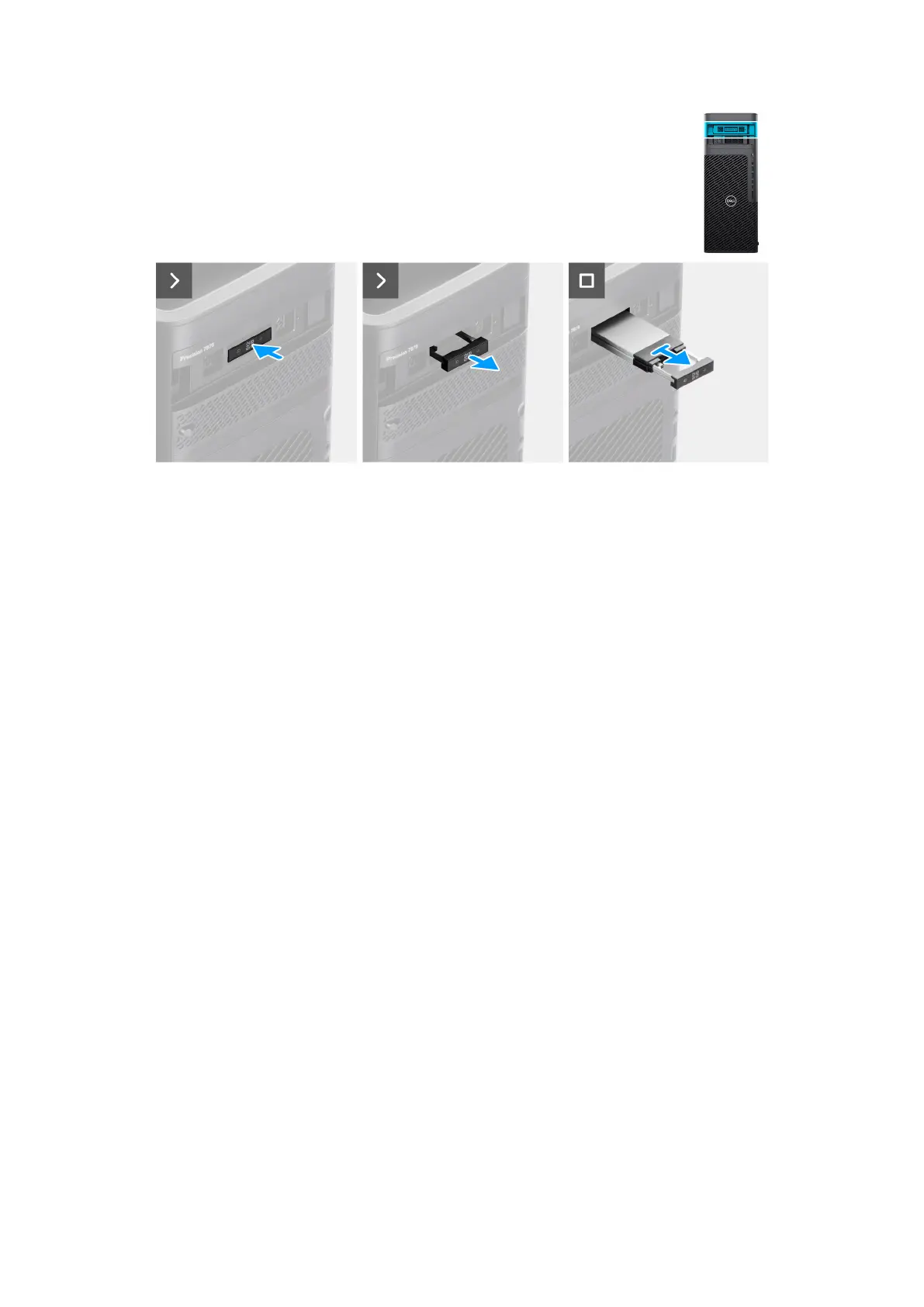

Figure 32. Removing the external solid-state drive assembly
Steps
1. Push the release button on the external flex bay bracket to open the release latch.
2. Hold the release latch and slide the solid-state drive assembly out of the external flex bay slot.
Removing the external M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the external solid-state drive assembly.
About this task
The following images indicate the location of the external M.2 2230 solid-state drive and provide a visual representation of the
removal procedure.
58
Removing and installing Customer Replaceable Units (CRUs)
