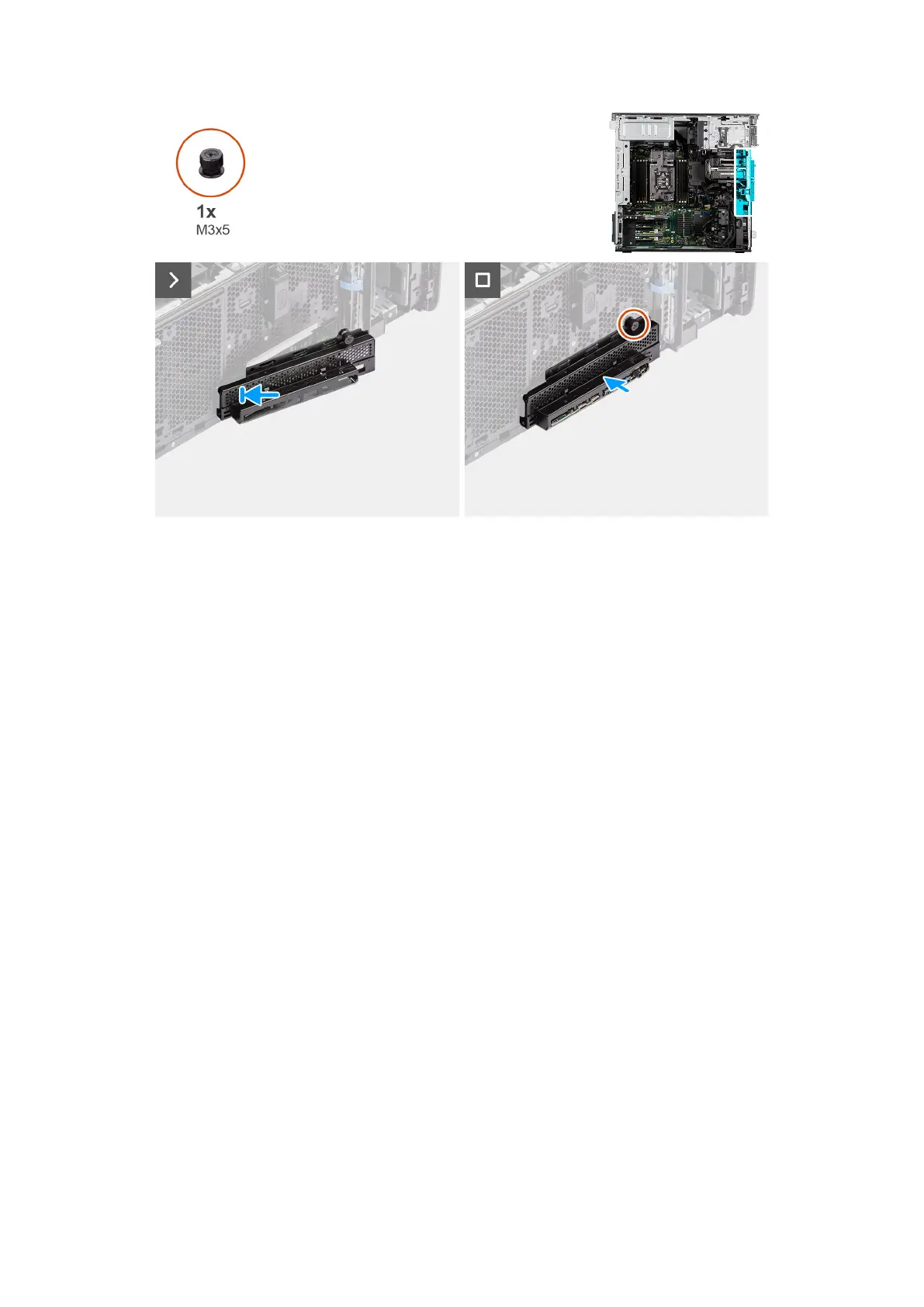

Figure 17. Installing the front I/O bracket
Steps
1. Align and slide the front I/O bracket into its slot on the chassis.
2. Tighten the thumbscrew (M3x5) to secure the front I/O bracket to the chassis.
Next steps
1. Install the front bezel.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Front bezel - Hard drive
Removing the front bezel with hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task
The following images indicate the location of the front bezel with hard drive and provide a visual representation of the removal
procedure.
