About this task
The following images indicate the location of the internal hard-drive cage and provide a visual representation of the installation
procedure.

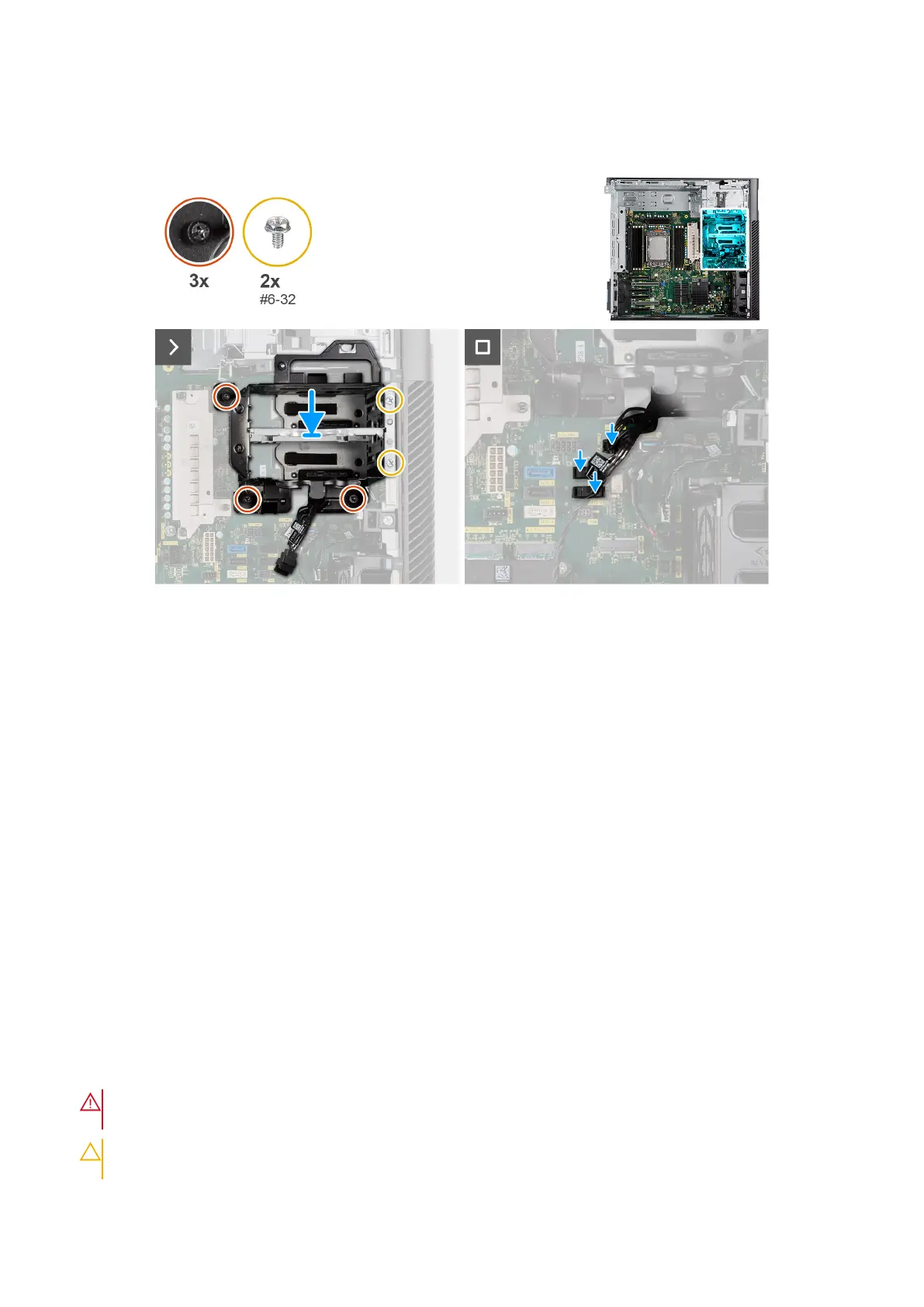

Figure 106. Installing the internal hard-drive cage
Steps
1. Slide and insert the internal hard-drive cage into the slot on the chassis.
2. Replace the two (#6-32) screws to secure the internal hard-drive cage to the chassis.
3. Tighten the three (M3) thumbscrews to secure the internal hard-drive cage to the system board.
4. Connect the SATA power-cables and SATA data-cable to the connectors on the system board.
Next steps
1. Install the hard-drive fan assembly.
2. Install the 3.5-inch hard-drive assembly.
3. Install the 2.5-inch hard-drive assembly.
4. Install the air shroud.
5. Install the side cover.
6. Follow the procedure in After working inside your computer.
Voltage-regulator heat sink
Removing the voltage-regulator heat sink - Location 1
Prerequisites
1. Follow the procedure in Before working inside your computer.
WARNING:
The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to
cool before you touch it.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The
oils in your skin can reduce the heat transfer capability of the thermal grease.
134 Removing and installing Field Replaceable Units (FRUs)
