Dell Precision 7875 Tower - Removing the 2.5-Inch Hard-Disk Drive Bracket

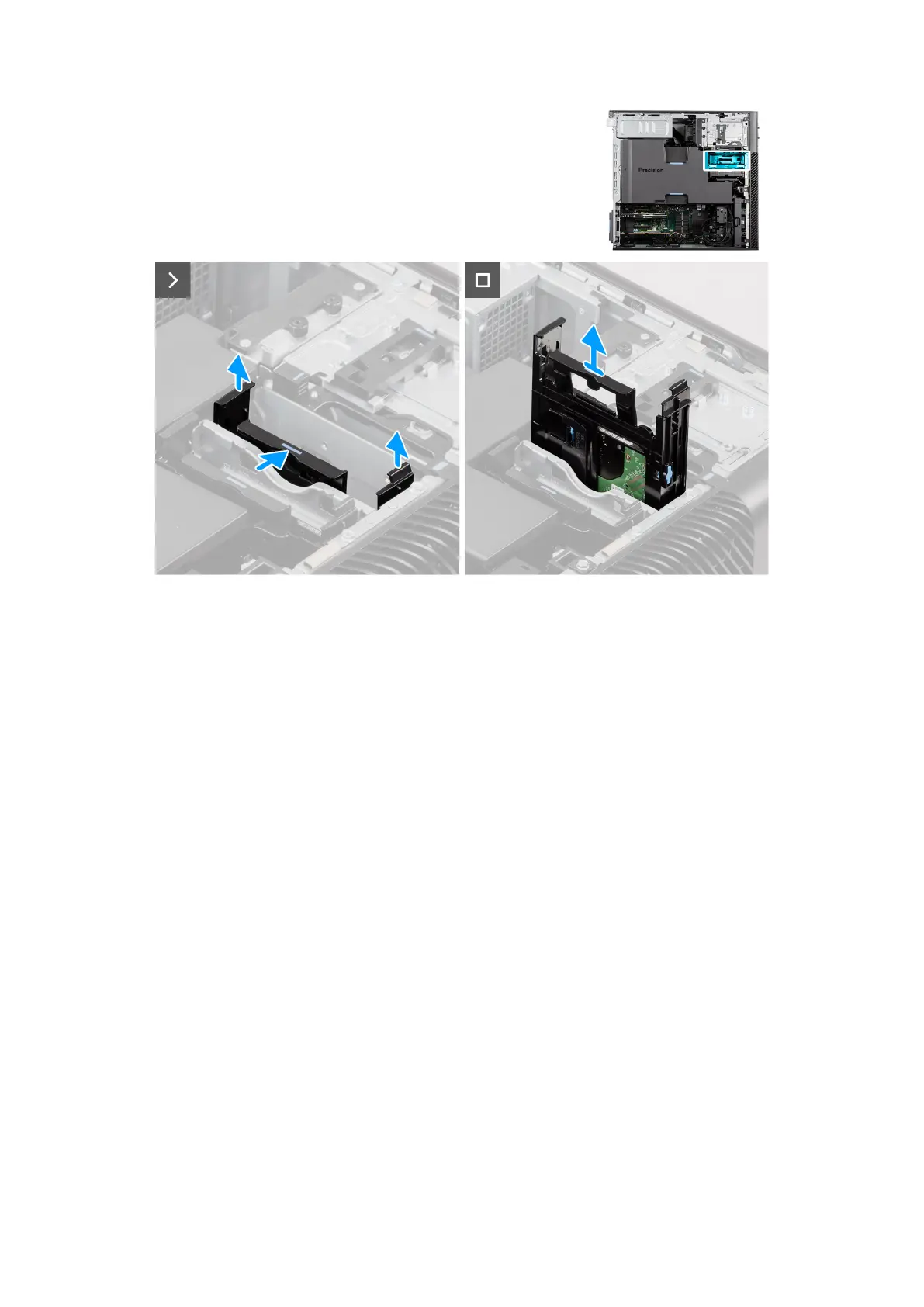

Figure 50. Removing the 2.5-inch hard-drive assembly
Steps
1. Press the securing tabs to release the 2.5-inch hard-drive assembly from the chassis.
2. Slide the 2.5-inch hard-drive assembly out of the hard-drive bracket.
Removing the 2.5-inch hard-disk drive bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the 2.5-inch hard-drive assembly.
About this task
The following images indicate the location of the 2.5-inch hard-drive bracket and provide a visual representation of the removal
procedure.
