Dell Precision 7875 Tower - Installing the Voltage-Regulator Heat Sink - Location 1

2. Remove the side cover.
3. Remove the air shroud.
About this task
The following image indicates the location of the voltage-regulator heat sink and provides a visual representation of the removal
procedure.

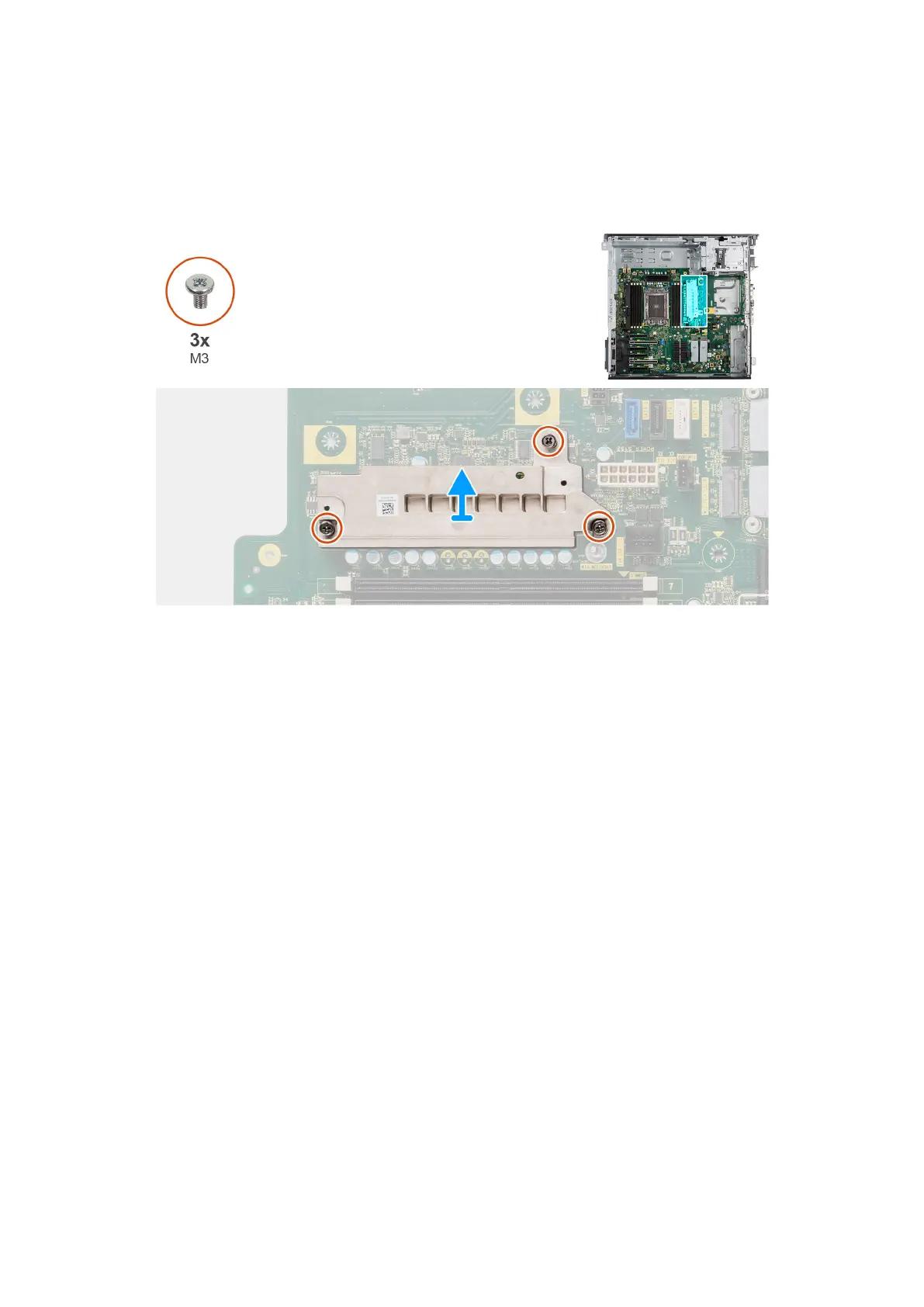

Figure 107. Removing the voltage-regulator heat sink - Location 1
Steps
1. Loosen the three (M3) captive screws that secure the voltage-regulator heat sink to the system board.
2. Lift the heat sink off the system board.
Installing the voltage-regulator heat sink - Location 1
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the voltage-regulator heat sink and provides a visual representation of the
installation procedure.
