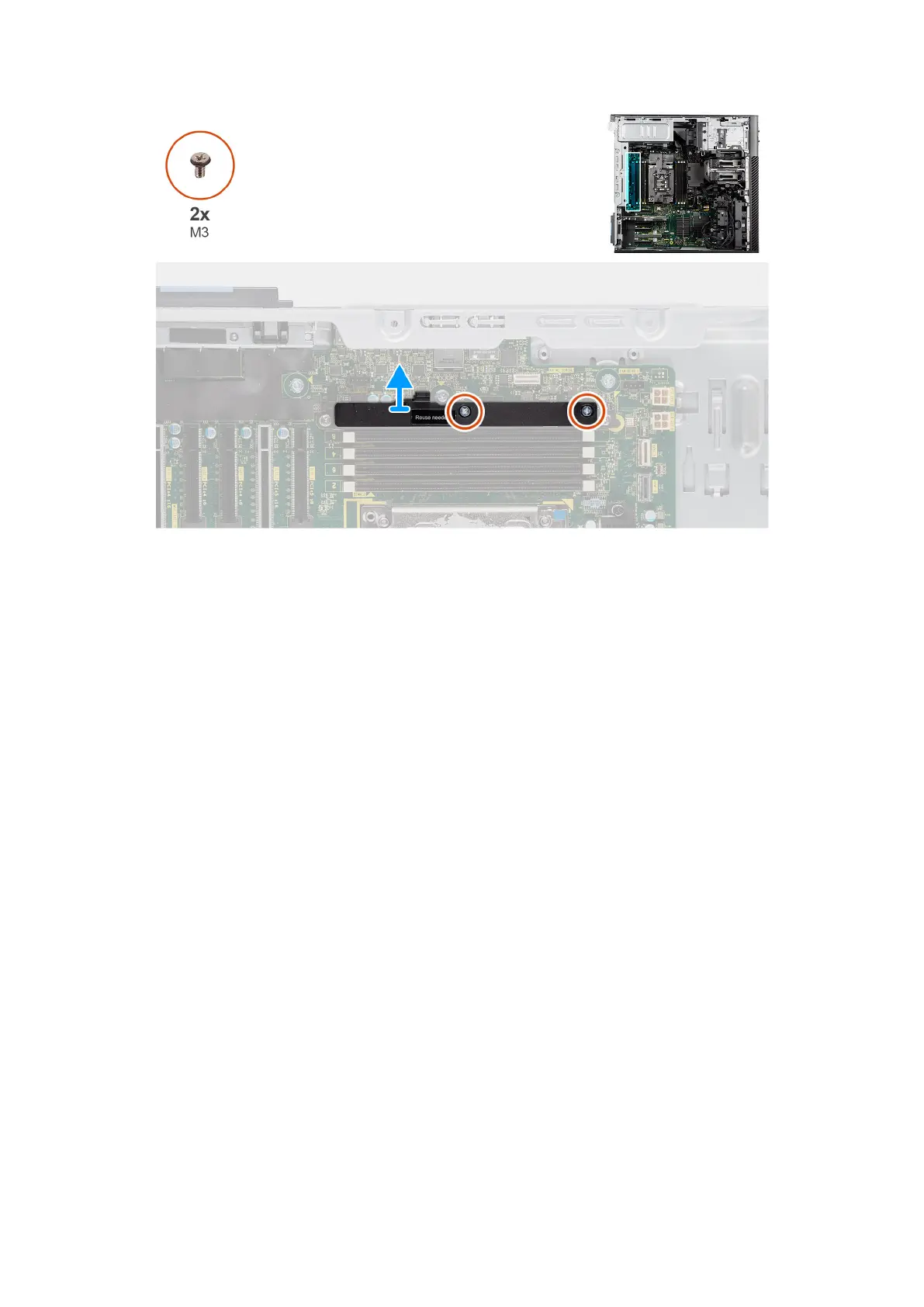

Figure 91. Removing the rear bottom air shroud
Steps
1. Remove the two (M3) screws that secure the rear bottom air shroud to the system board.
2. Remove the rear bottom air shroud out of the computer.
Installing the rear bottom air shroud
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the rear bottom air shroud and provides a visual representation of the installation
procedure.
Removing and installing Customer Replaceable Units (CRUs)
119
