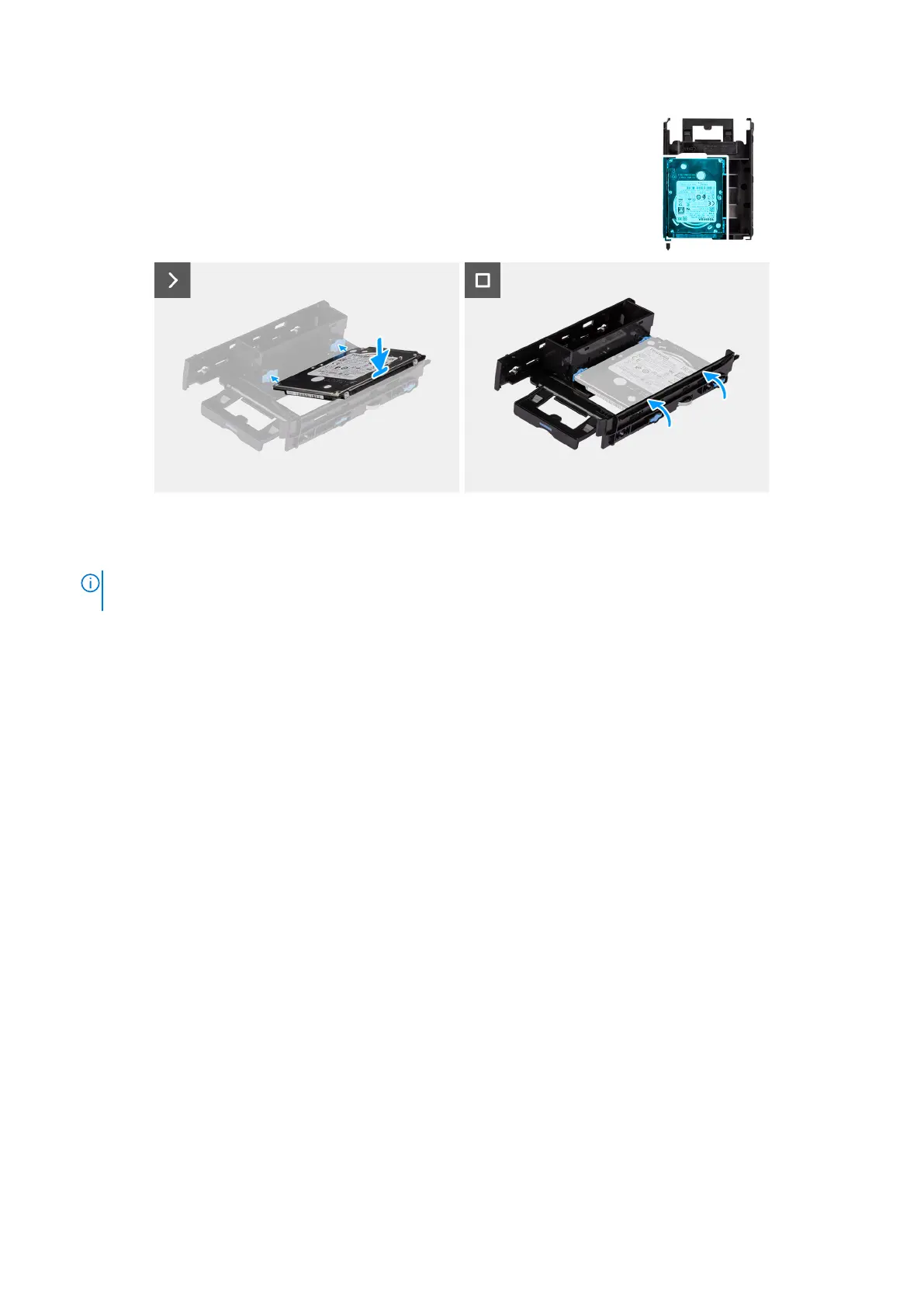

Figure 52. Installing the 2.5-inch hard-drive bracket
Steps
1.
NOTE:
If your hard-drive bracket was installed for a 3.5-inch drive, the rubber grommets must be positioned to fit a
2.5-inch hard-drive.
Place the hard drive into the hard-drive bracket and align the tabs on the bracket with the slots on the hard drive.
2. Snap the hard-drive into the hard-drive bracket.
Next steps
1. Install the 2.5-inch hard-drive assembly.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Installing the 2.5-inch hard-drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 2.5-inch hard-drive assembly and provide a visual representation of the
installation procedure.
