Dell Precision 7875 Tower - Front I;O Bracket; Removing the Front I;O Bracket

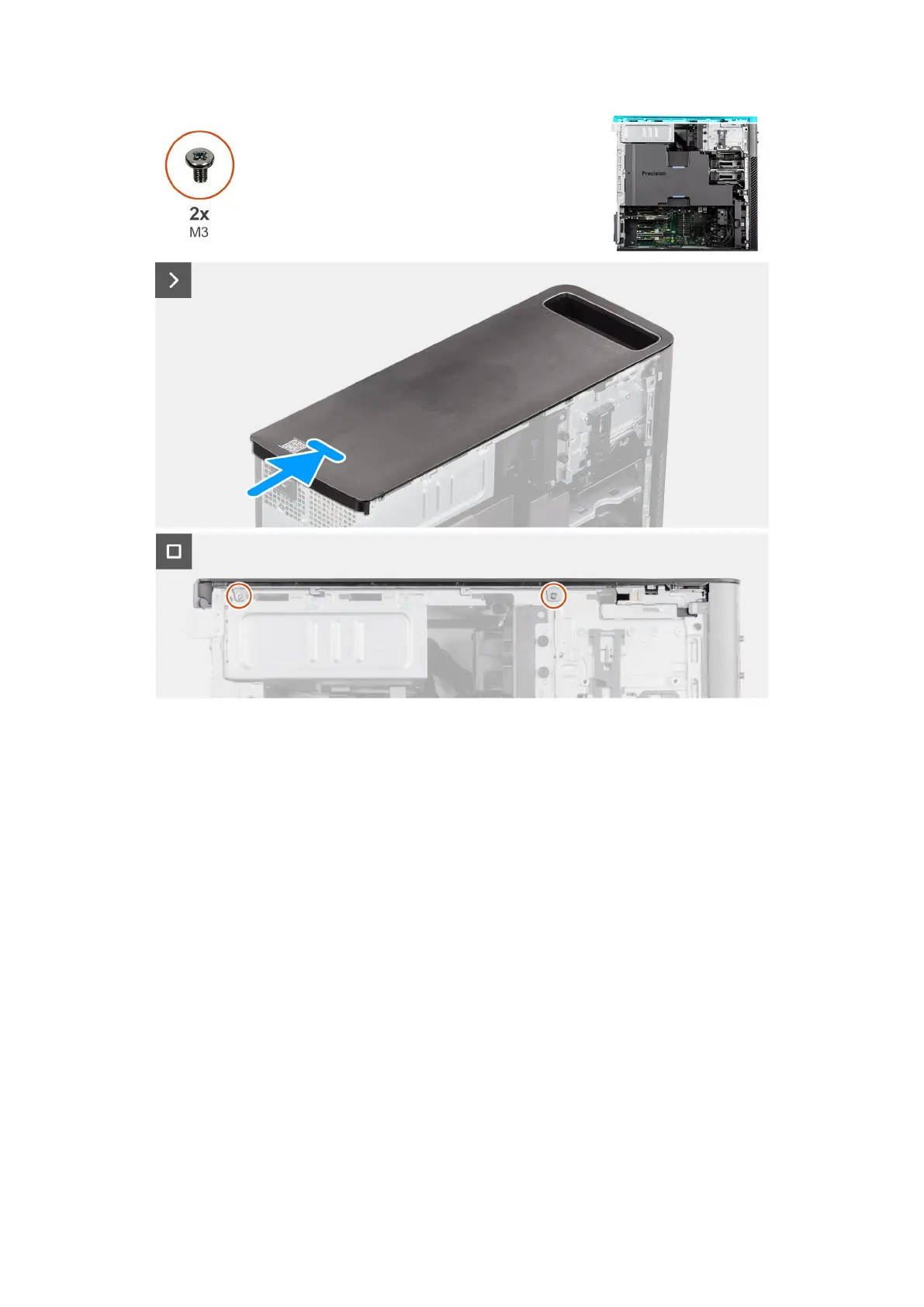

Figure 15. Installing the top cover
Steps
1. Slide and align the tabs on the top cover with the slots on the chassis.
2. Press the top cover back towards the top of the computer to secure it.
3. Replace the two (M3) screws to secure the top cover to the chassis.
Next steps
1. Install the side cover.
2. Follow the procedure in After working intopyour computer.
Front I/O bracket
Removing the front I/O bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
42
Removing and installing Customer Replaceable Units (CRUs)
