Steps
1. Remove the two (M3) screws that secure the rear bottom air shroud to the system board.
2. Remove the 12 (#6-32) screws that secure the system board to the chassis.
3. Lift the system board at an angle and remove the system board off the chassis.
Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the system board and provide a visual representation of the installation procedure.

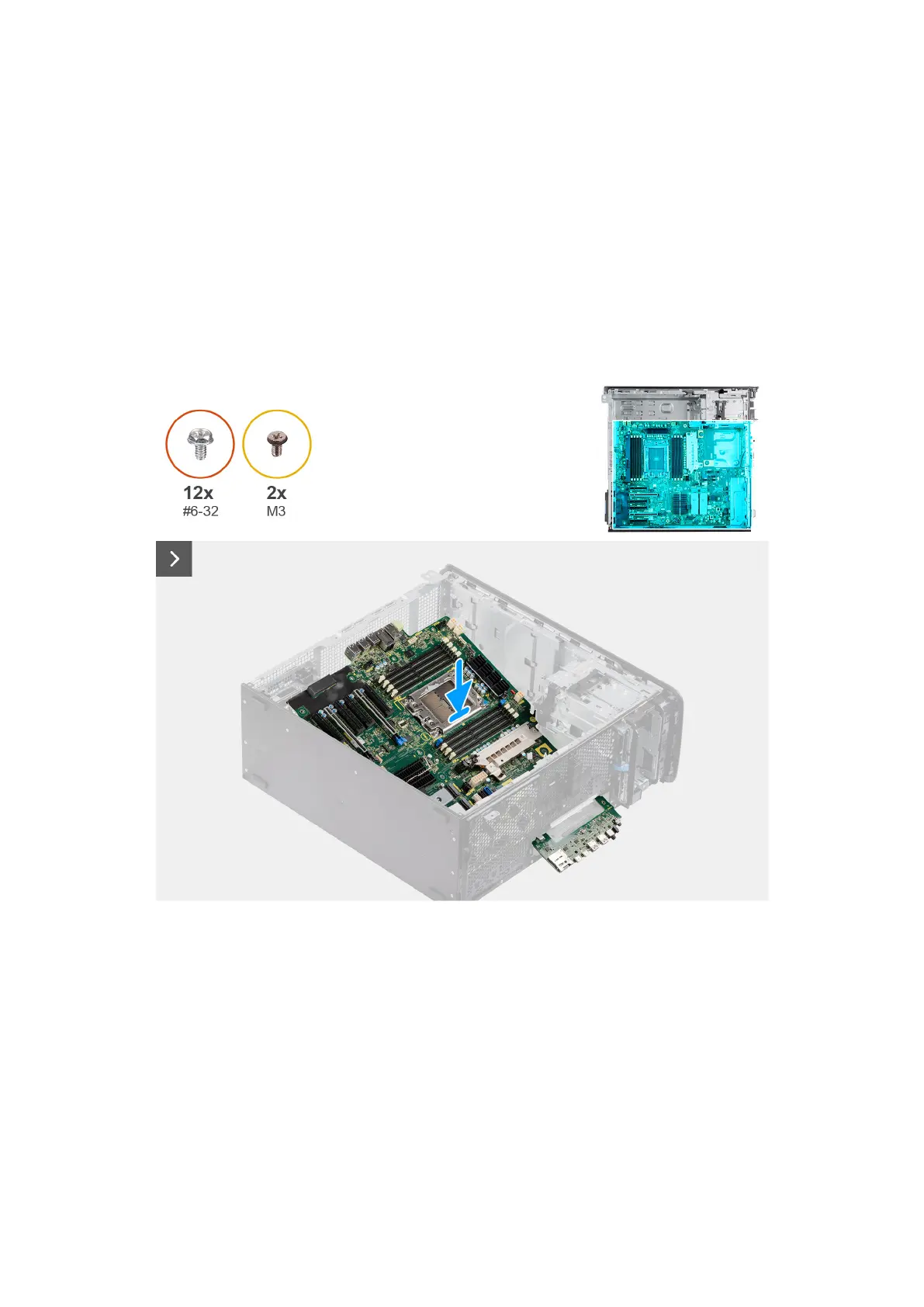

Figure 120. Installing the system board
Removing and installing Field Replaceable Units (FRUs)
147
