Dell Precision 7875 Tower - Top Cover; Removing the Top Cover

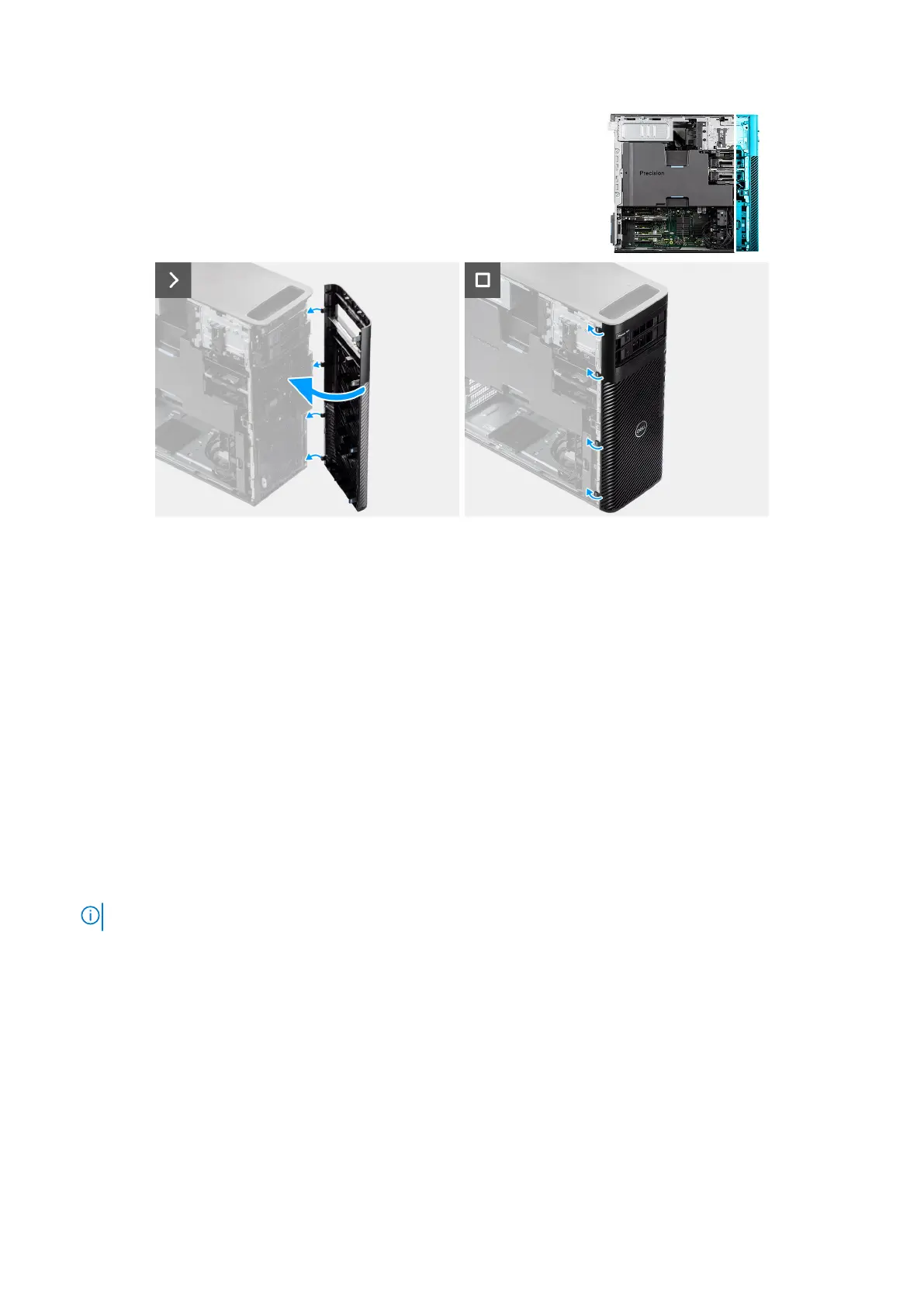

Figure 13. Installing the front bezel
Steps
1. Position the front bezel to align the tabs on the bezel with the slots on the chassis.
2. Press the bezel until the tabs clicks into place.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Top cover
Removing the top cover
Prerequisites
1. Follow the procedure in Before working intop your computer.
NOTE: Ensure that you remove the security cable from the security-cable slot (if applicable).
2. Remove the side cover.
About this task
The following images indicate the location of the top cover and provide a visual representation of the removal procedure.
40
Removing and installing Customer Replaceable Units (CRUs)
