Dell Precision 7875 Tower - Removing the Voltage-Regulator Heat Sink - Location 2

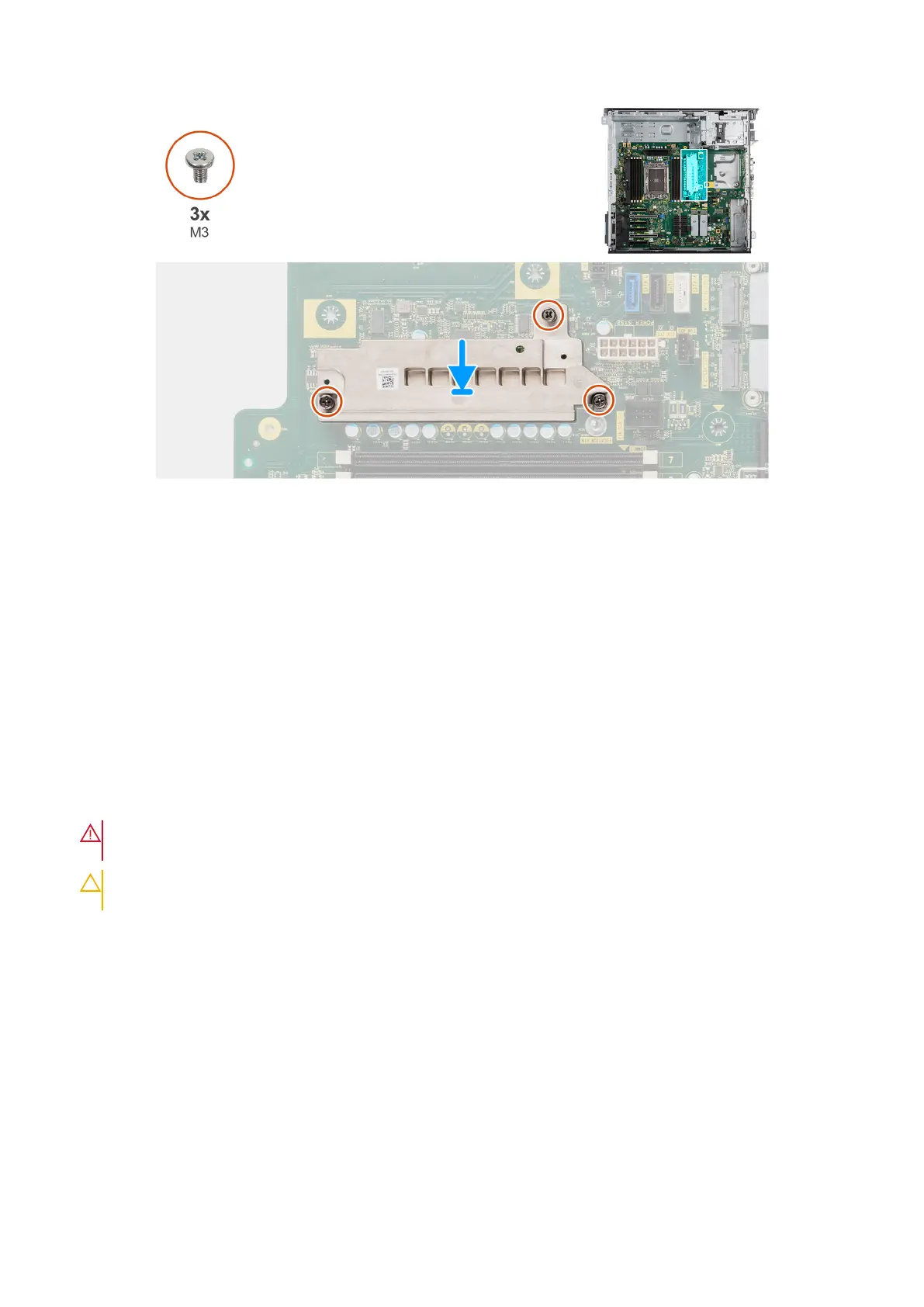

Figure 108. Installing the voltage-regulator heat sink - Location 1
Steps
1. Align the screw holes on the voltage-regulator heat sink to the screw holes on the system board.
2. Tighten the three (M3) captive screws to secure the voltage-regulator heat sink to the system board.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Removing the voltage-regulator heat sink - Location 2
Prerequisites
1. Follow the procedure in Before working inside your computer.
WARNING:
The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to
cool before you touch it.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The
oils in your skin can reduce the heat transfer capability of the thermal grease.
2. Remove the side cover.
3. remove the air shroud.
About this task
The following image indicates the location of the voltage-regulator heat sink and provides a visual representation of the removal
procedure.
