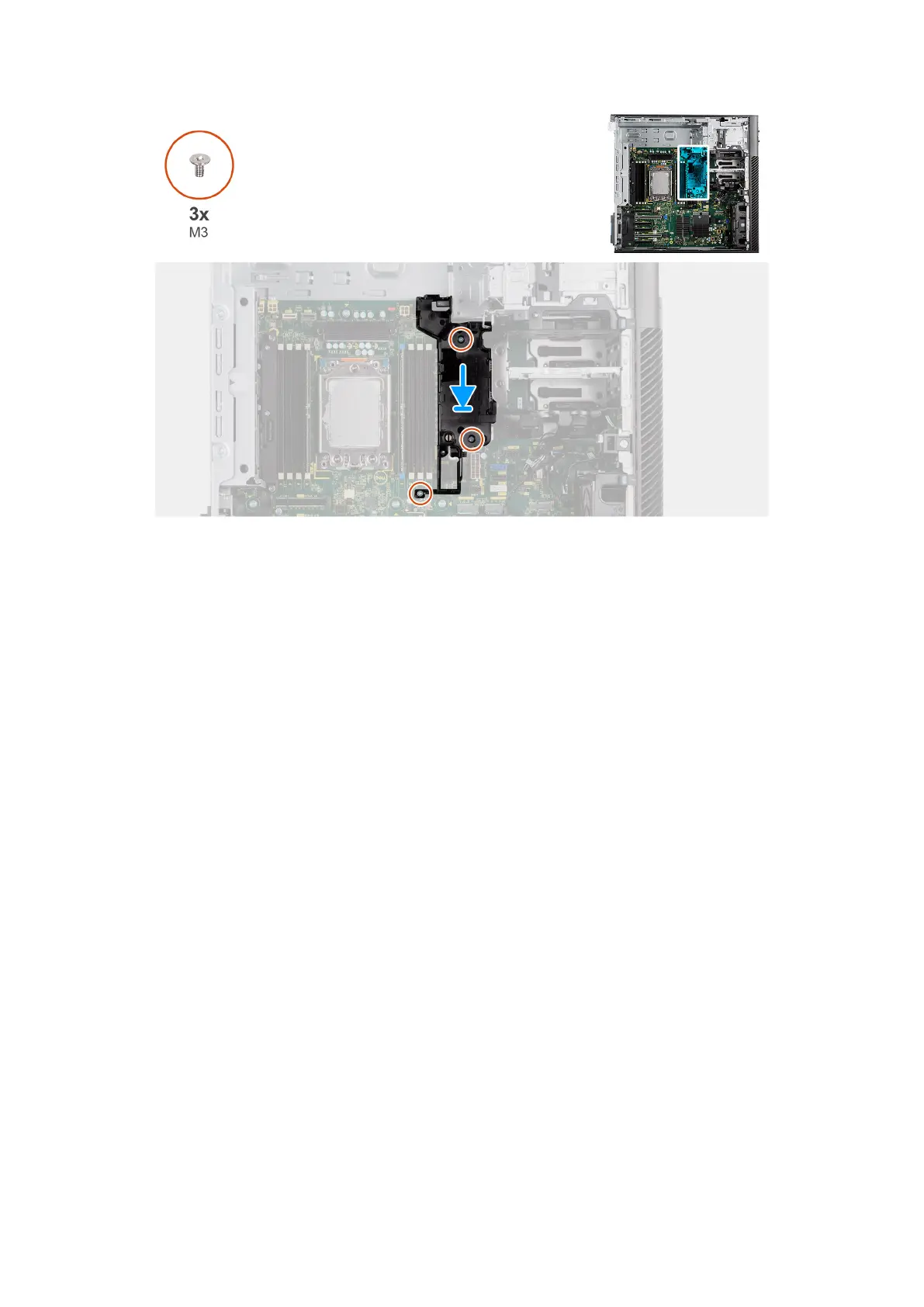

Figure 90. Installing the bottom air shroud
Steps
1. Place the bottom air shroud over the voltage heat sink regulator.
2. Align the screw holes of the bottom air shroud with the holes on the system board.
3. Tighten the three (M3) captive screws to secure the bottom air shroud to the system board.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Removing the rear bottom air shroud
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
About this task
The following image indicates the location of the rear bottom air shroud and provides a visual representation of the removal
procedure.
118
Removing and installing Customer Replaceable Units (CRUs)
