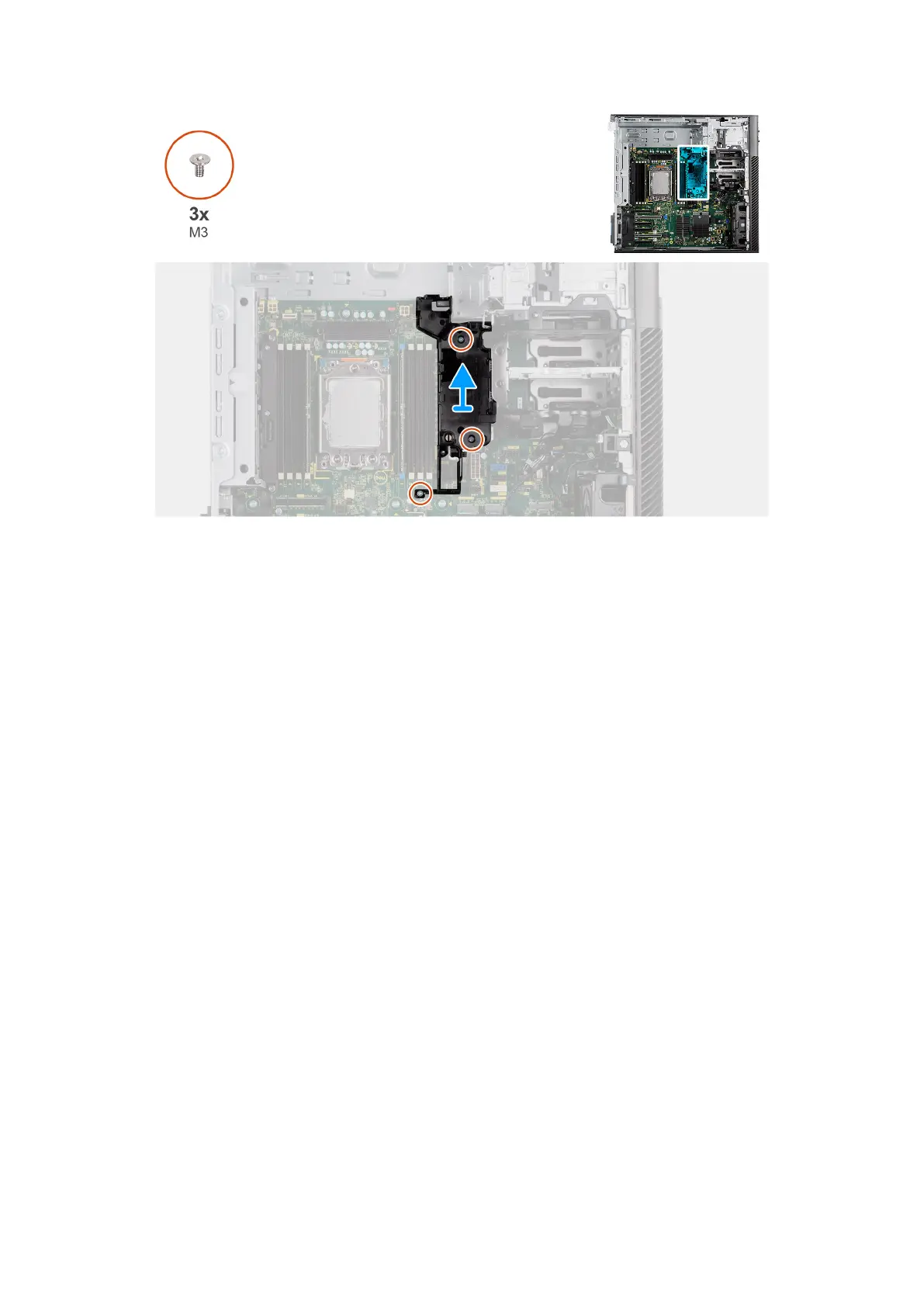

Figure 89. Removing the bottom air shroud
Steps
1. Loosen the three (M3) captive screws securing the bottom air shroud to the system board.
2. Lift the bottom air shroud from the computer.
Installing the bottom air shroud
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the bottom air shroud and provide a visual representation of the installation
procedure.
Removing and installing Customer Replaceable Units (CRUs)
117
