Major components of Precision 7875 Tower
The following image shows the major components of Precision 7875 Tower.

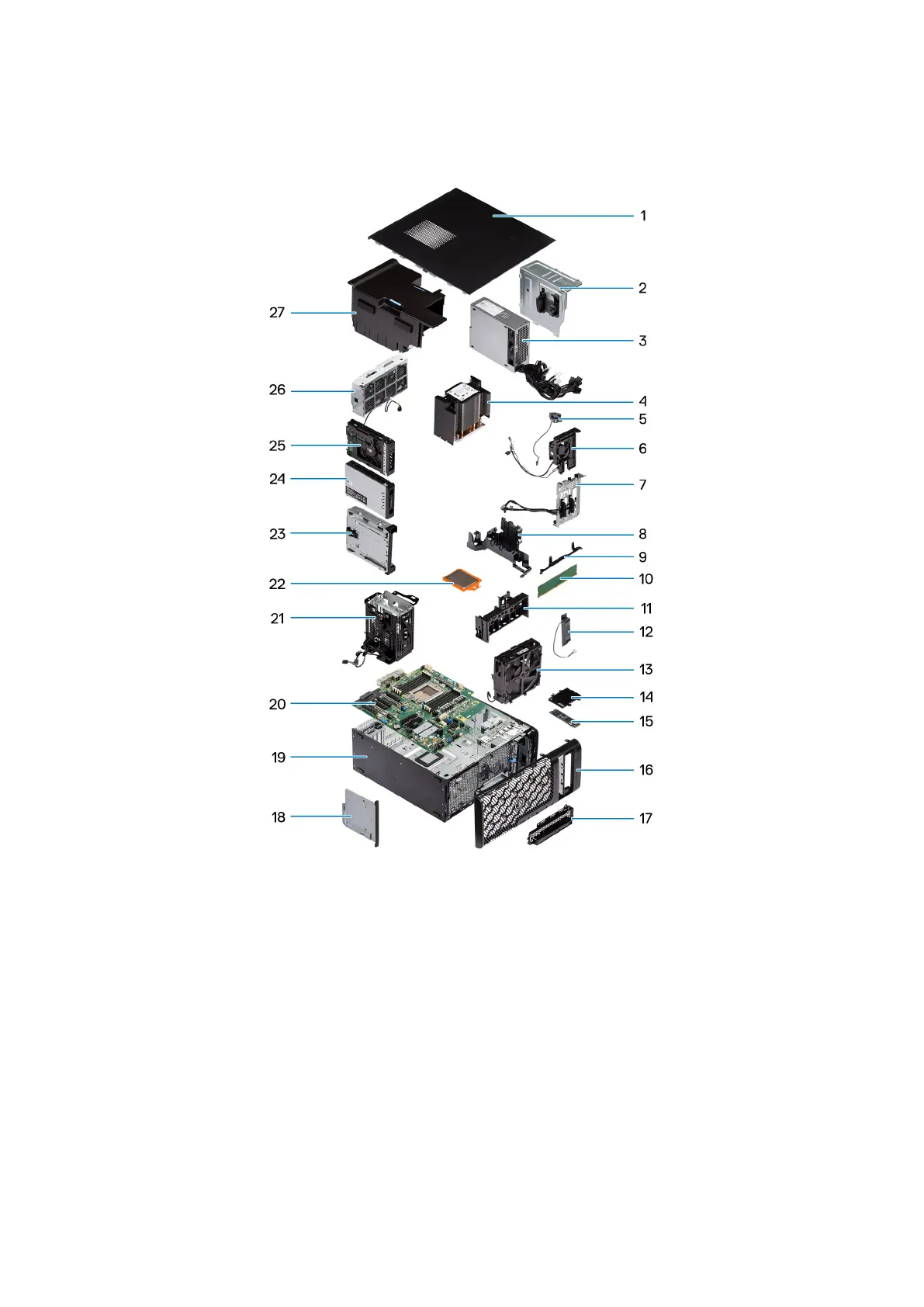

Figure 9. Major components of Precision 7875 Tower
1. Side cover
2. Power-supply unit cover
3. Power-supply unit
4. Heat sink
5. Intrusion switch
6. Hard-drive fan assembly
7. Back plane
8. Bottom-air shroud
9. Rear bottom-air shroud
10. Memory module
11. PCIe holder
12. Speaker
13. Front-fan assembly
14. Solid-state drive heat-sink
15. M.2 solid state drive
