About this task
The following images indicate the location of the NVMe-fan assembly and provide a visual representation of the removal
procedure.

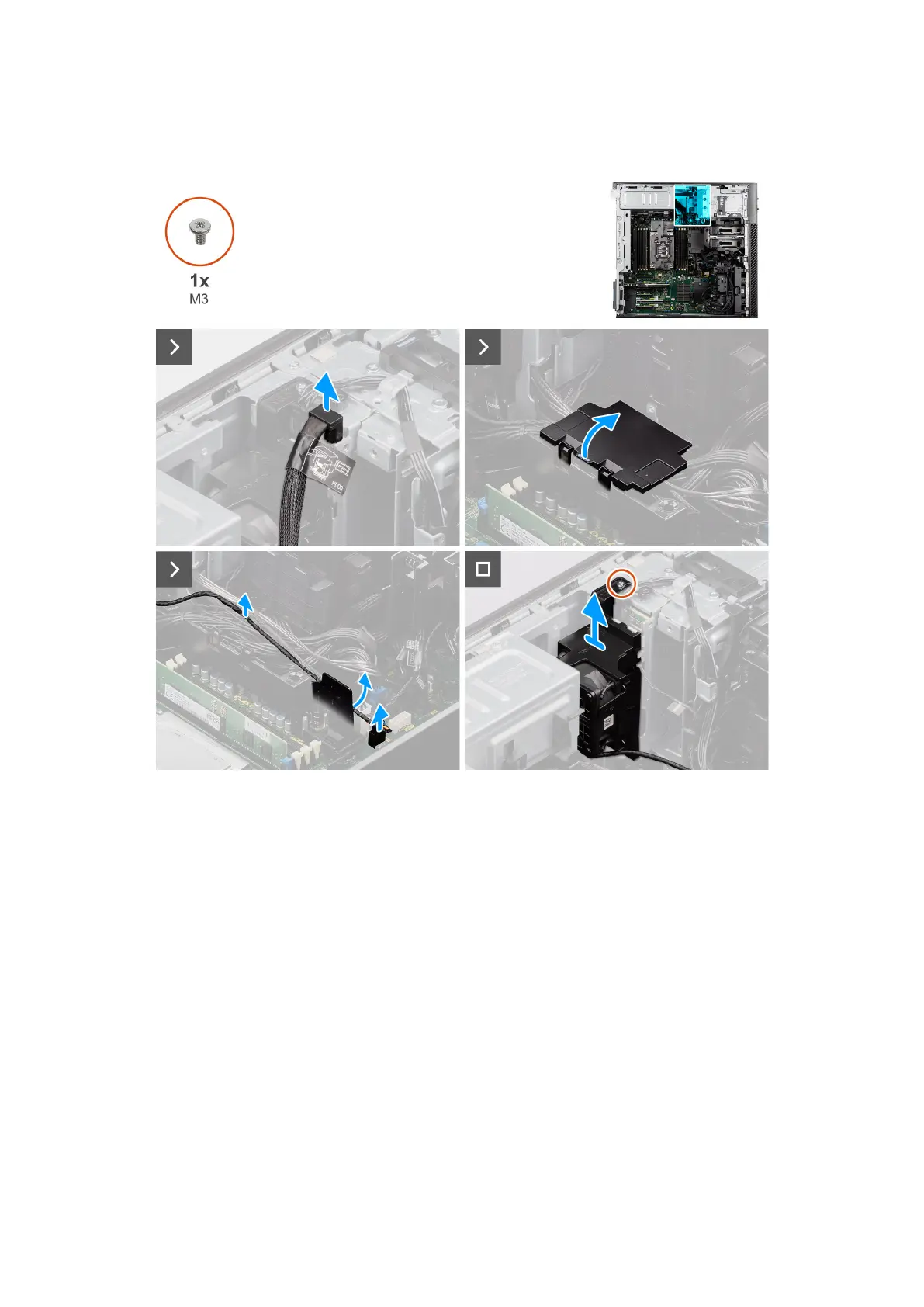

Figure 95. Removing the NVMe-fan assembly (optional)
Steps
1. Disconnect the HDD0 cable from the connector on the backplane.
2. Disconnect the fan hard drive cable from the connector on the system board.
3. Open the lid of the bottom-air shroud cover and unroute the cables that are routed inside.
4. Remove the single (M3) screw securing the NVMe-fan assembly to the backplane.
5. Lift and remove the NVMe-fan assembly along with the cable from the computer.
Installing the NVMe-fan assembly (optional)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the NVMe-fan assembly and provide a visual representation of the installation
procedure.
124
Removing and installing Field Replaceable Units (FRUs)
