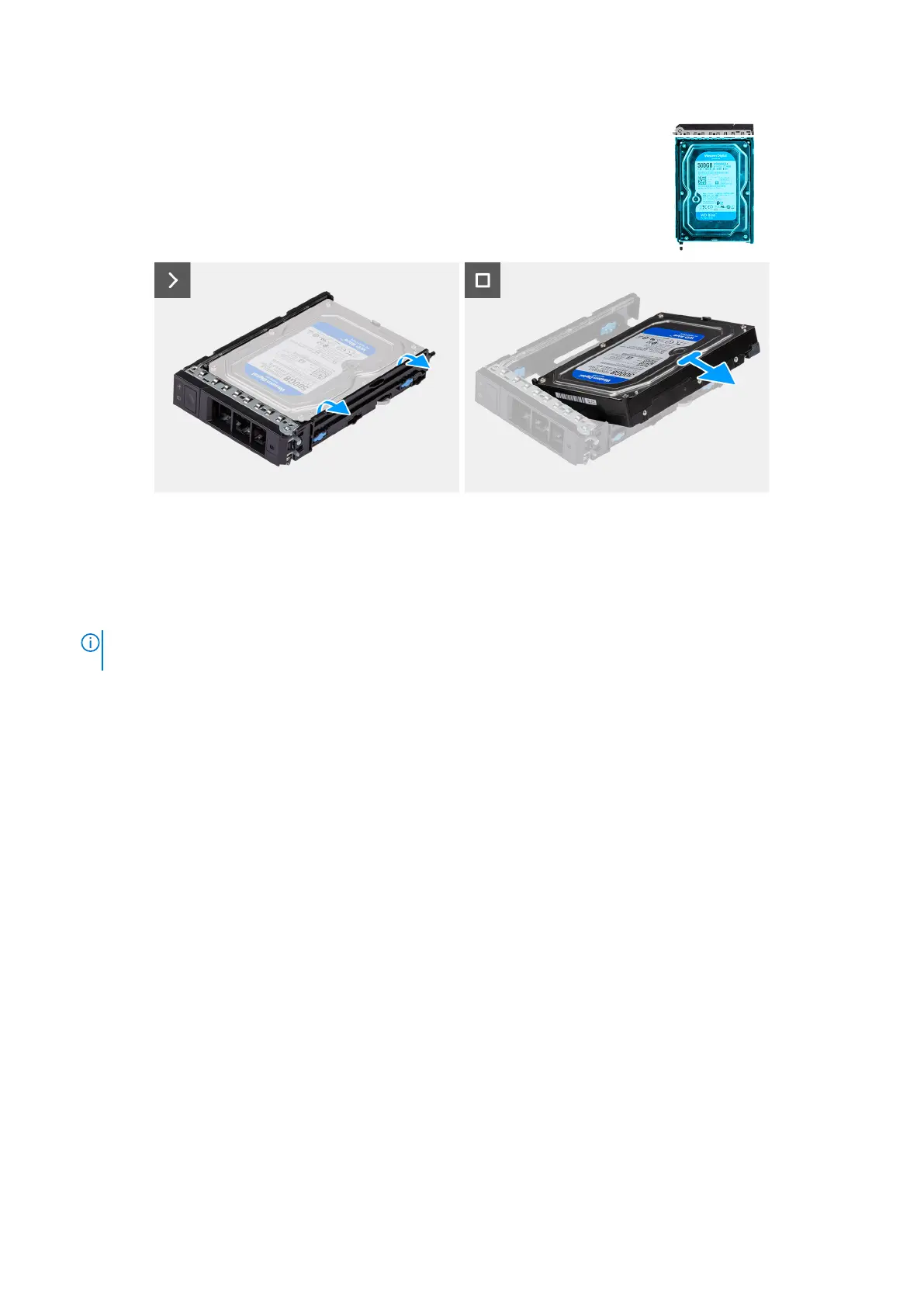

Figure 27. Removing a 3.5-inch hard drive from the external hard-drive assembly
Steps
1. Pry the sides of the external hard-drive bracket to release the pins on the bracket from the slots on the hard drive. Lift and
remove the hard drive off the external hard-drive bracket.
2. Lift and remove the hard drive off the external hard-drive bracket.
NOTE:
Perform step 1 to step 2, to remove the second external 3.5-inch hard-drive assembly from the lower bay (if
applicable).
Installing a 3.5-inch hard drive from the external hard-drive
assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of a 3.5-inch hard drive from the external hard-drive assembly and provide a visual
representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
53
