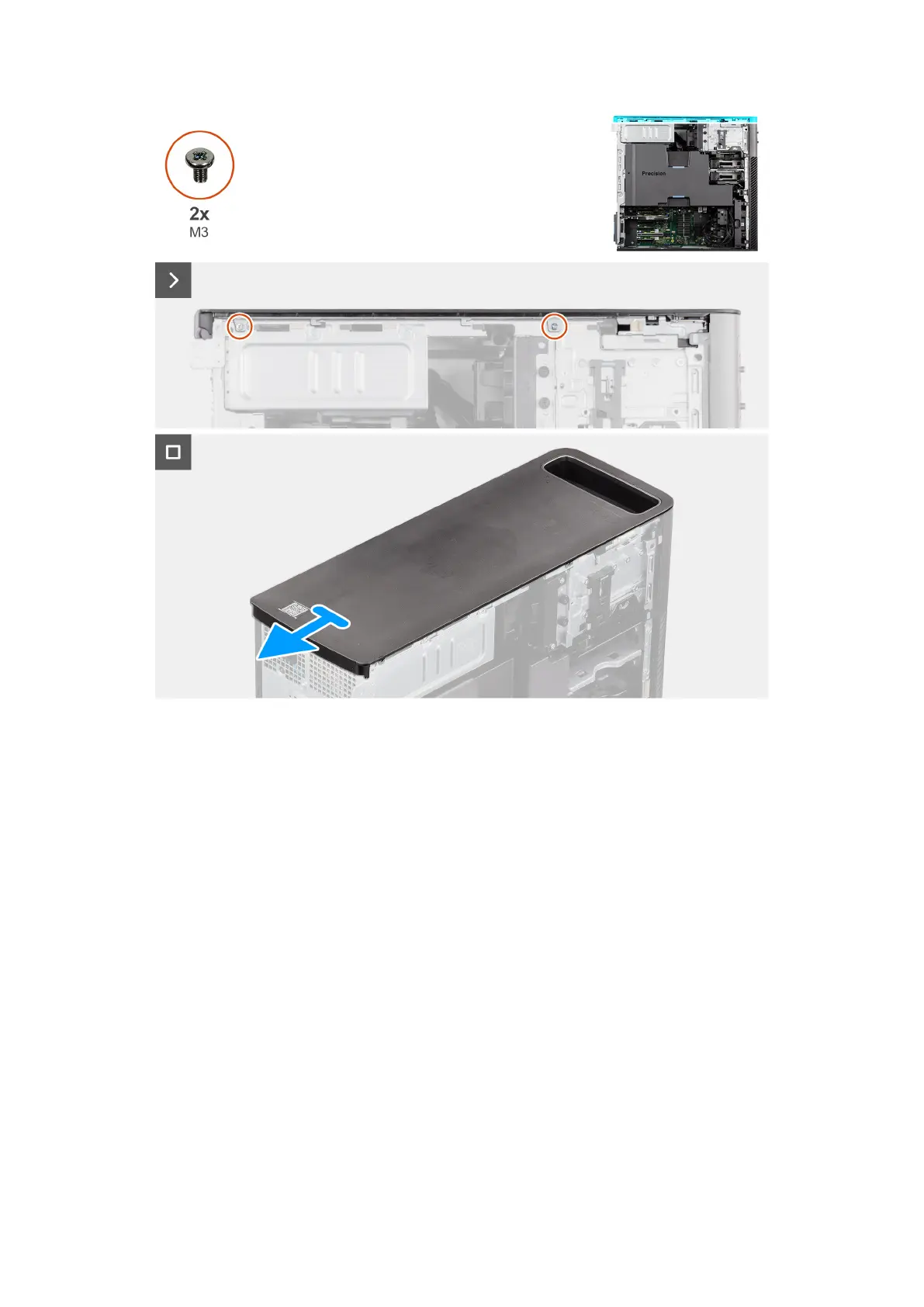

Figure 14. Removing the top cover
Steps
1. Remove the two (M3 screws) that secure the top cover to the chassis.
2. Slide and remove the top cover.
Installing the top cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the top cover and provide a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
41
