Dell Precision 7875 Tower - Installing the Front-Fan Assembly

3. Remove the air shroud.
4. Remove the PCIe holder.
About this task
The following images indicate the location of the front-fan assembly and provide a visual representation of the removal
procedure.

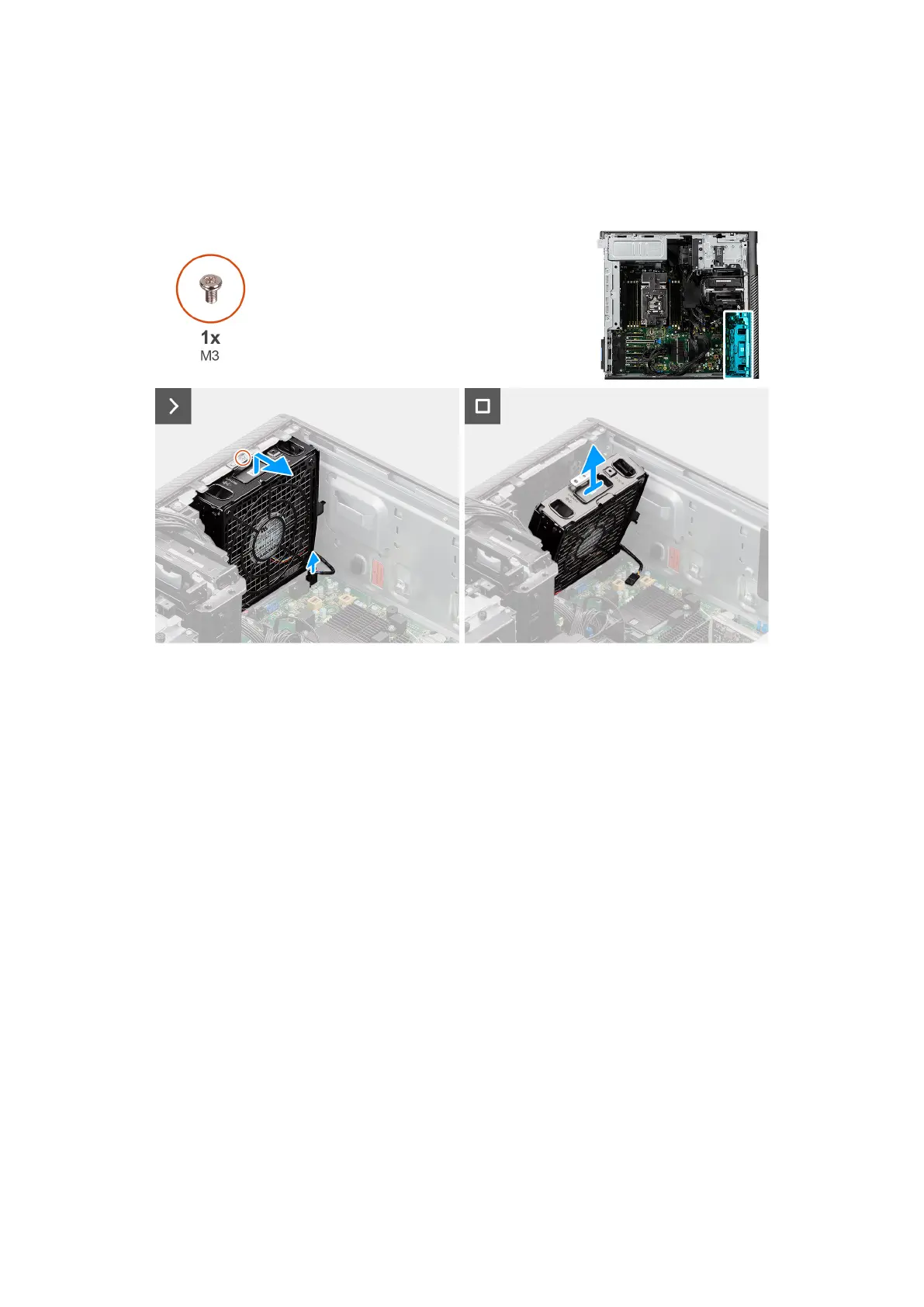

Figure 44. Removing the front-fan assembly
Steps
1. Remove the single (M3) screw that secures the front-fan assembly to the chassis.
2. Disconnect the fan cable from the connector on the system board.
3. Move the fan assembly at an angle from the chassis.
4. Lift and remove the front fan-assembly from the computer.
Installing the front-fan assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front-fan assembly and provide a visual representation of the installation
procedure.
