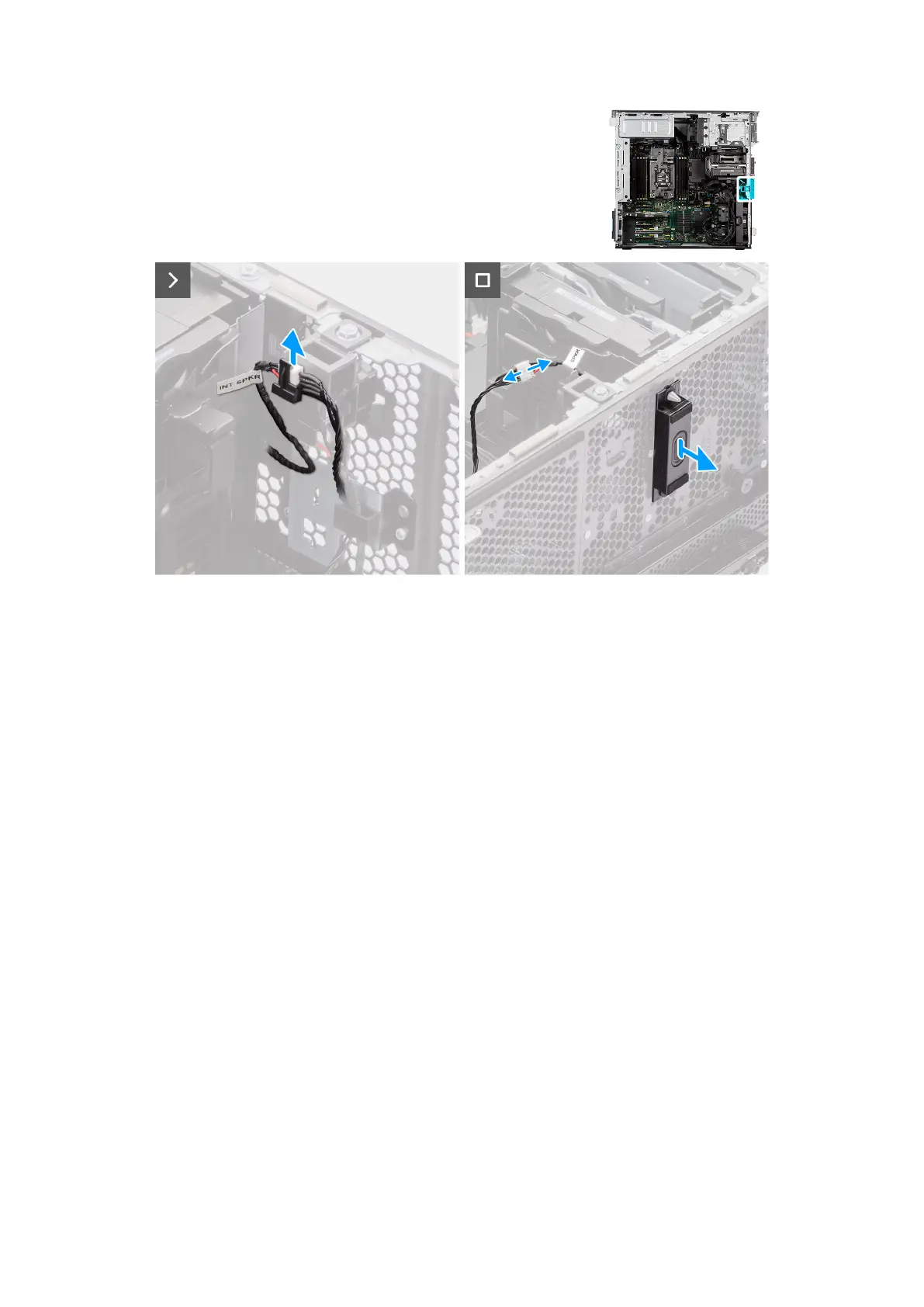

Figure 83. Removing the speaker
Steps
1. Disconnect the speaker cable from the connector on the system board.
2. Unroute the speaker-dongle cable from the routing guide on the intrusion switch.
3. Disconnect the speaker cable from the speaker-dongle cable.
4. Press the two tabs and pull the speaker along with the cable from the slot on the chassis.
Installing the speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the speaker and provides a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
111
