Dell Precision 7875 Tower - Installing the Front I;O Bracket

About this task
The following images indicate the location of the front I/O bracket and provide a visual representation of the removal procedure.

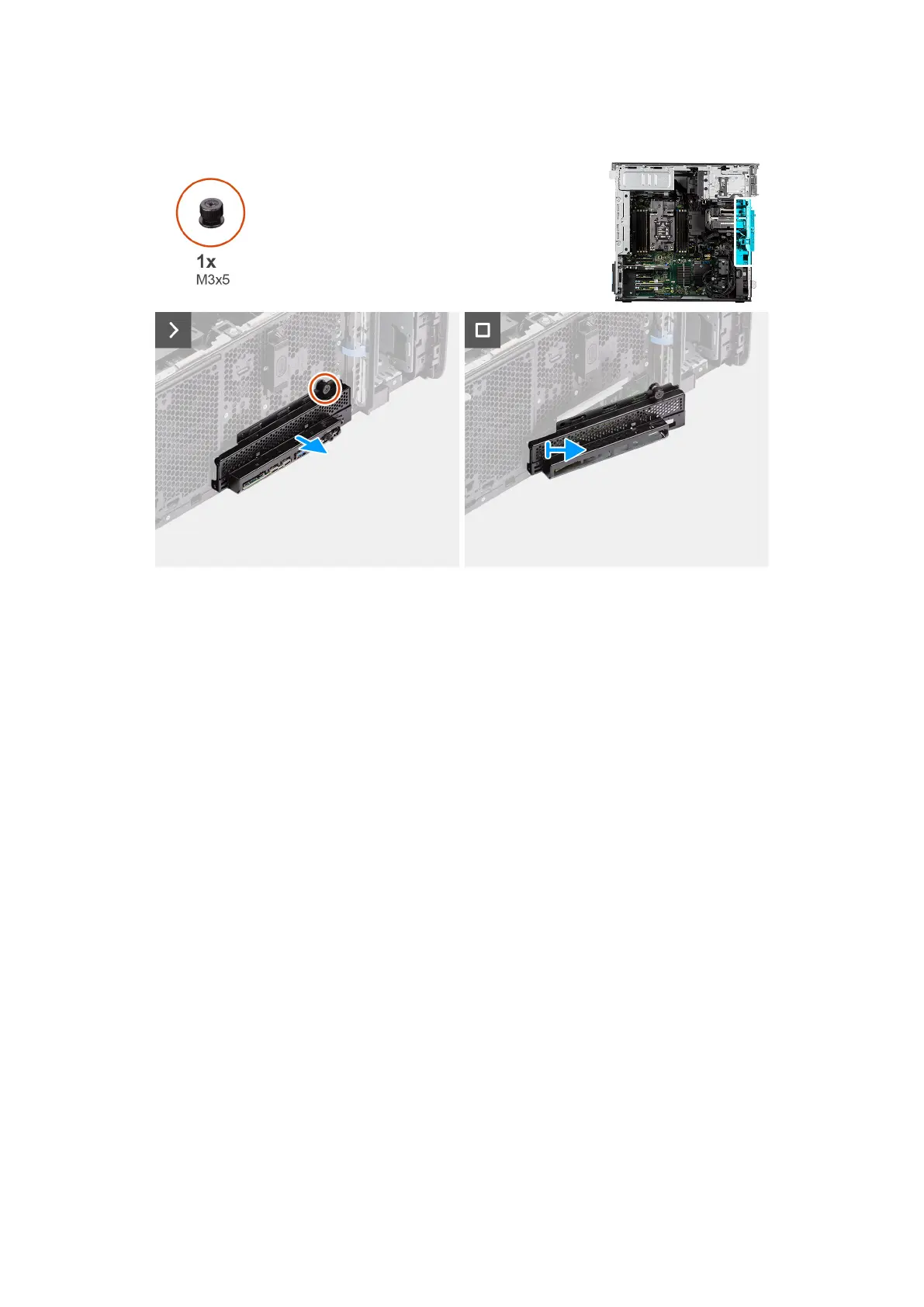

Figure 16. Removing the front I/O bracket
Steps
1. Loosen the thumbscrew (M3x5) that secures the front I/O bracket to the chassis.
2. Slide the front I/O bracket to free it from its slot on the chassis.
3. Remove the front I/O bracket from the computer.
Installing the front I/O bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front I/O bracket and provide a visual representation of the installation
procedure.
