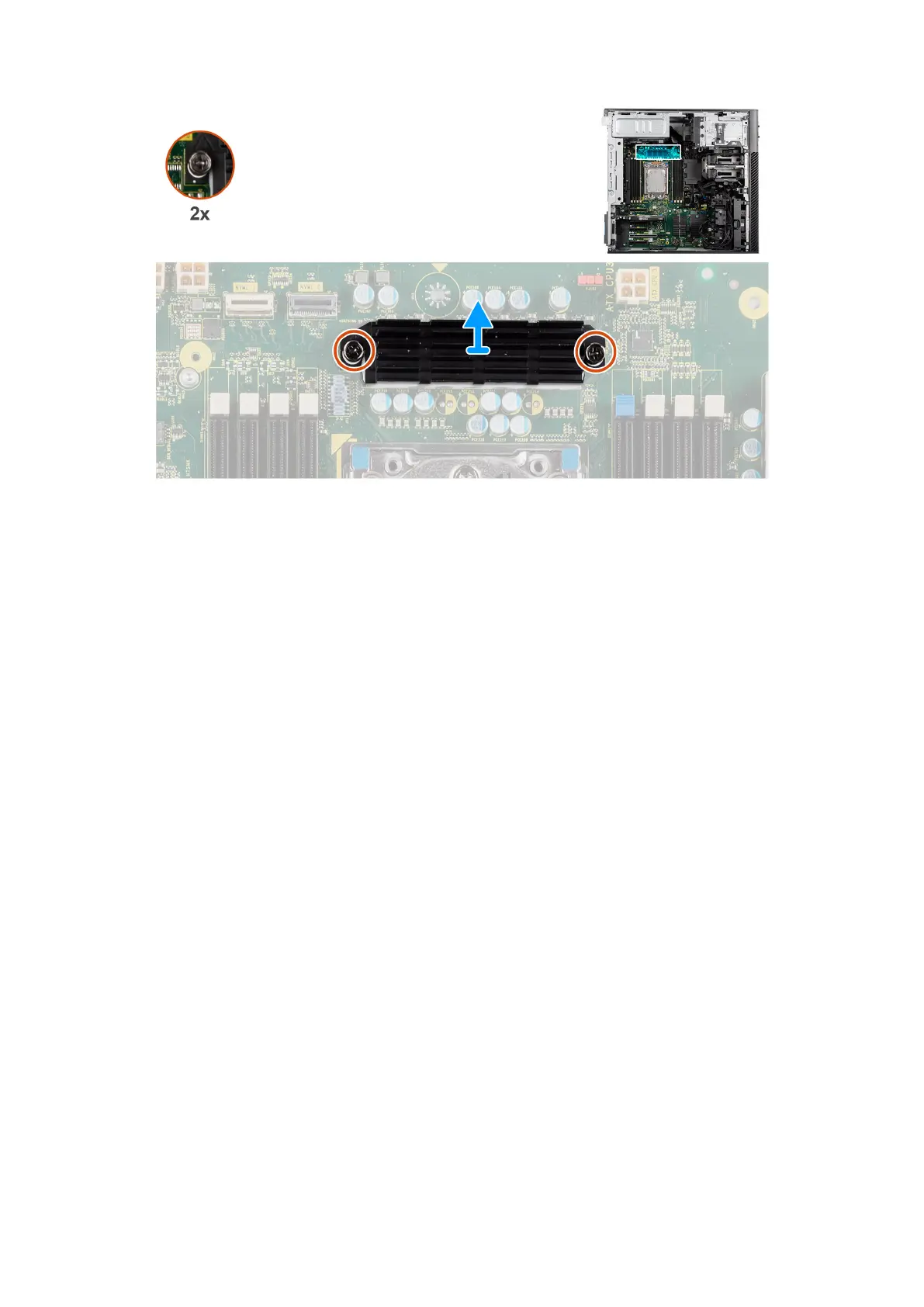

Figure 109. Removing the voltage-regulator heat sink - Location 2
Steps
1. Loosen the two captive screws that secure the voltage-regulator heat sink to the system board.
2. Lift the heat sink off the system board.
Installing the voltage-regulator heat sink - Location 2
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the voltage-regulator heat sink and provides a visual representation of the
installation procedure.
