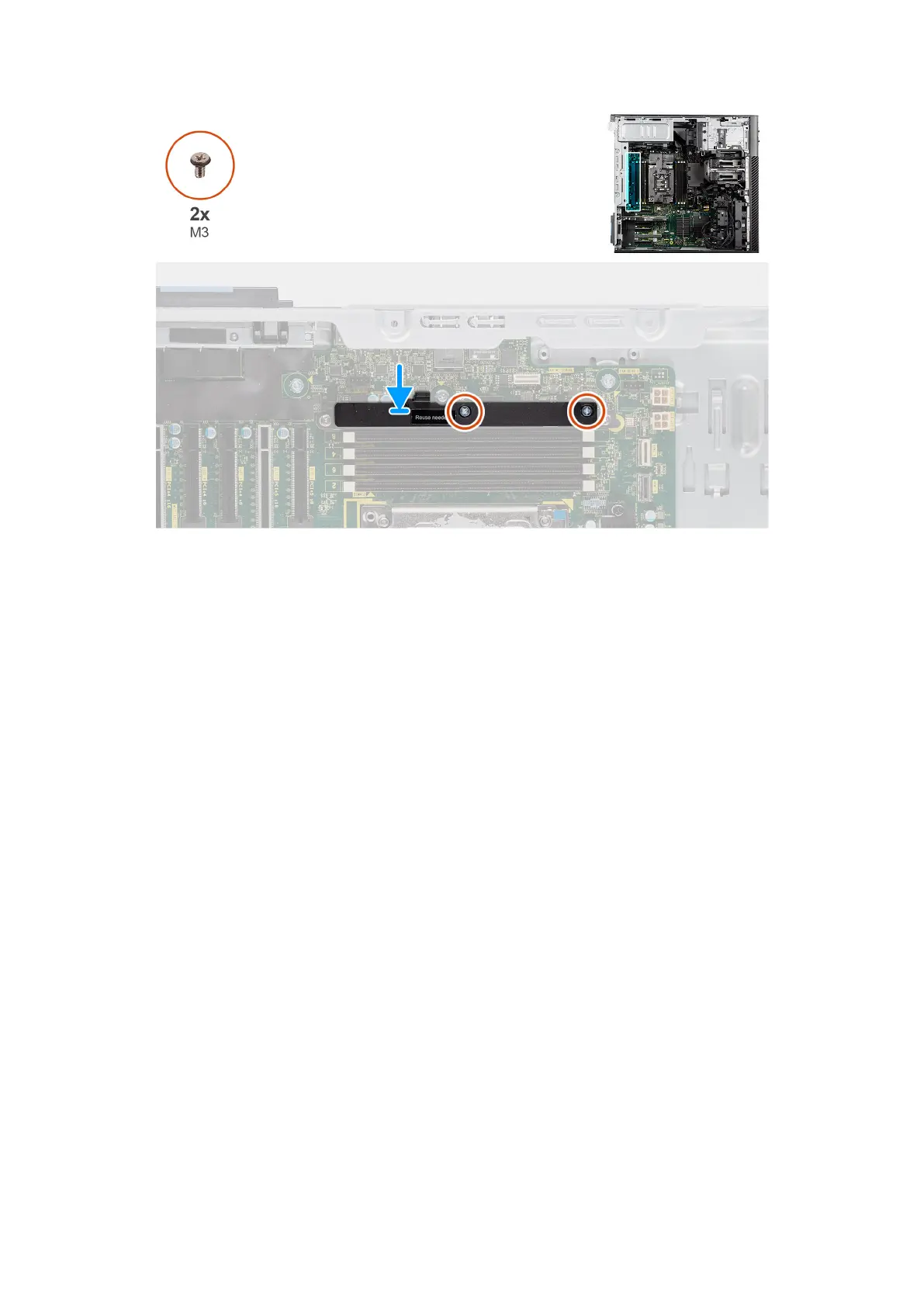

Figure 92. Installing the rear bottom air shroud
Steps
1. Place the rear bottom air shroud on the system board.
2. Align the screw holes of the rear bottom air shroud with the holes on the system board.
3. Replace the two (M3) screws to secure the rear bottom air shroud to the system board.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
