About this task
The following images indicate the location of the NVMe-backplane assembly and provide a visual representation of the removal
procedure.

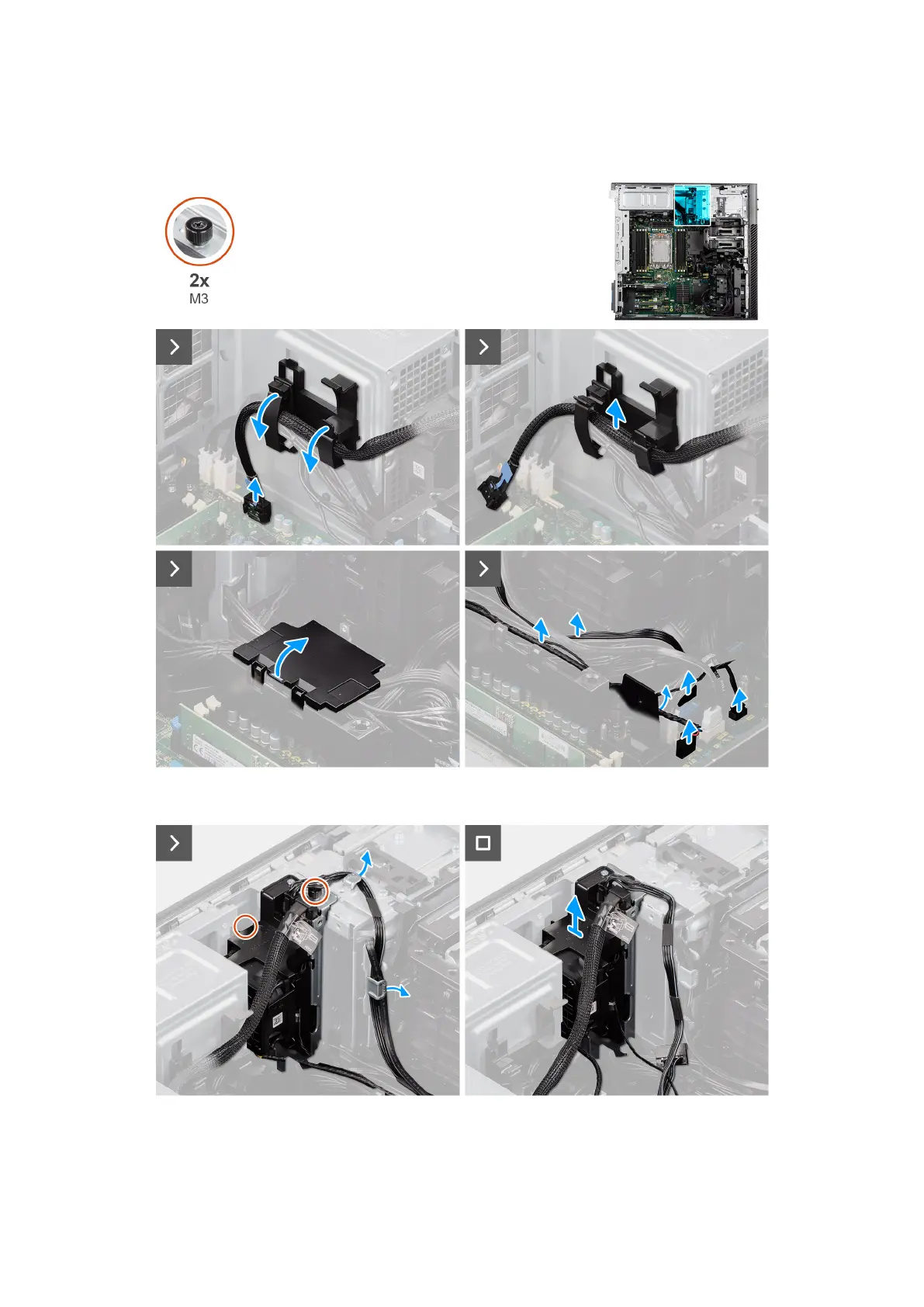

Figure 97. Removing the NVMe-backplane assembly (optional)
Figure 98. Removing the NVMe-backplane assembly (optional)
Steps
1. Disconnect the NVMe cable from the connector on the system board.
126
Removing and installing Field Replaceable Units (FRUs)
