Dell Precision 7875 Tower - Page 142

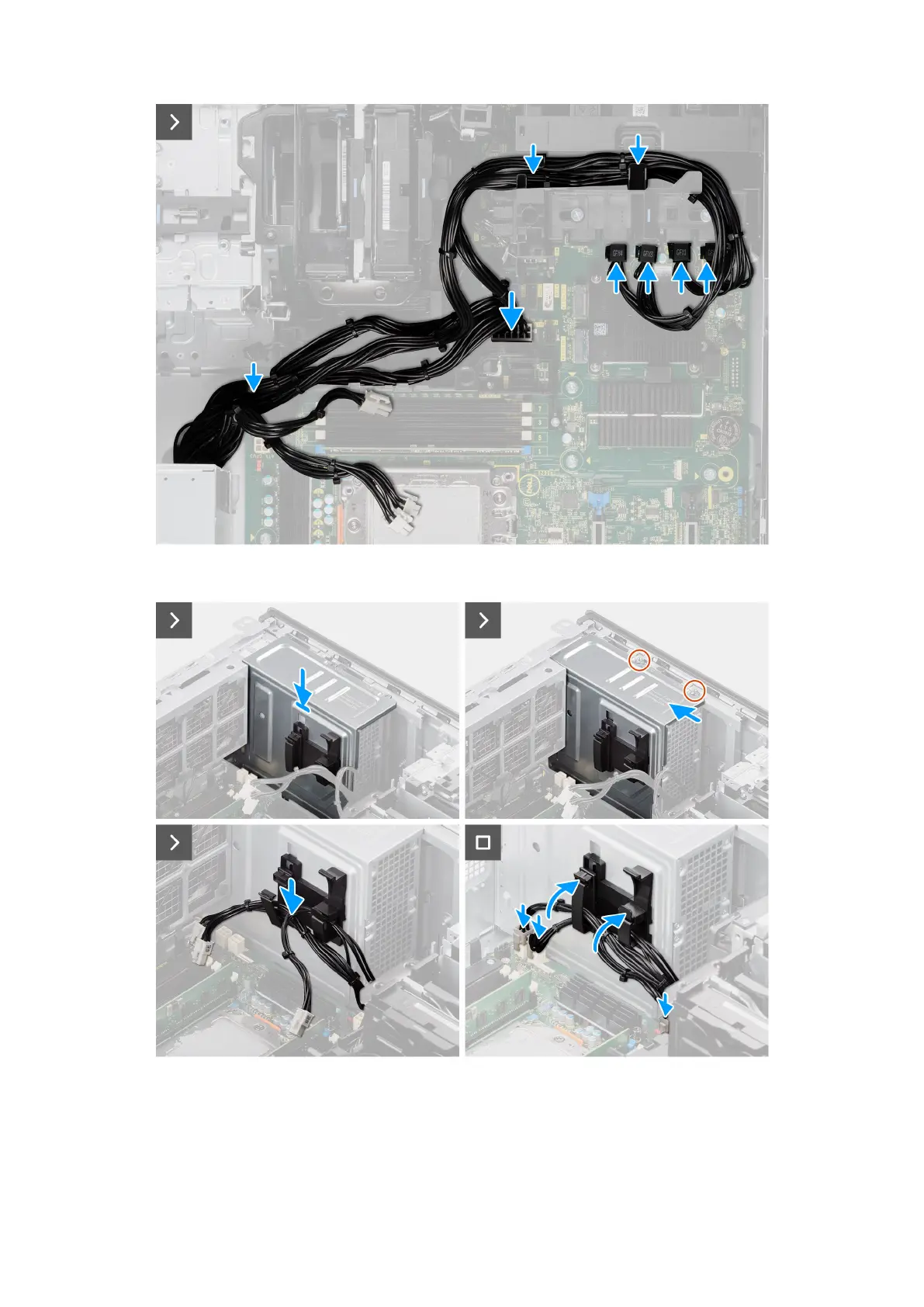

Figure 115. Installing the power-supply unit
Figure 116. Installing the power-supply unit
Steps
1. Slide the power-supply unit into the chassis until the securing tab snaps into position.
2. Replace the four (#6x32) screws to secure the power-supply unit to the chassis.
142
Removing and installing Field Replaceable Units (FRUs)
