About this task
The following images indicate the location of the UltraSpeed Quad card and provide a visual representation of the installation
procedure.
NOTE: Precision 7875 Tower supports only one UltraSpeed Quad card in slot 5.

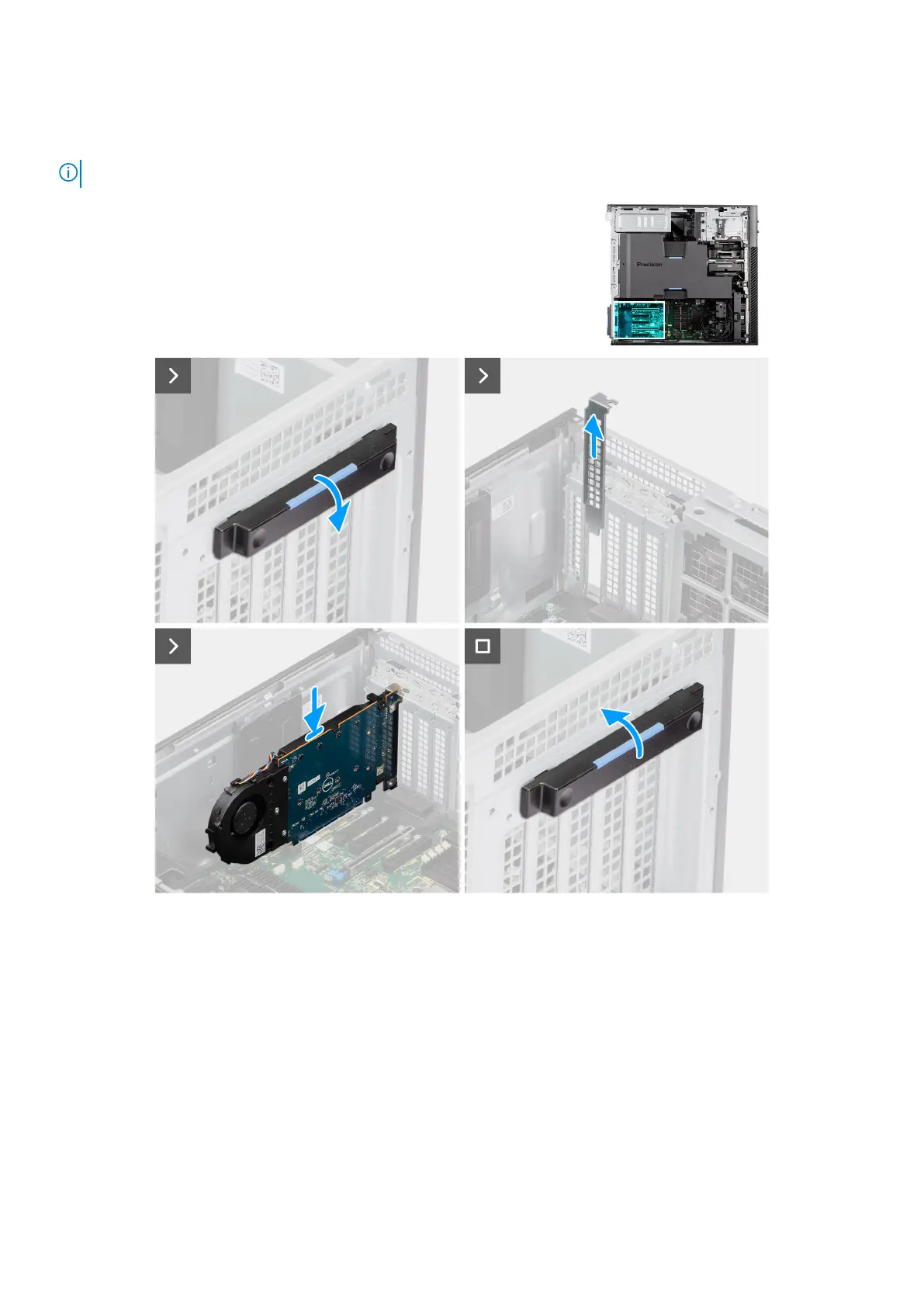

Figure 59. Installing the UltraSpeed Quad card
Steps
1. Push down the PCIe latch to open the PCIe door.
2. Slide and lift the PCIe filler from the PCIe slot.
3. Align and place the UltraSpeed Quad card into the expansion slot.
4. Lift the PCIe latch to close the PCIe door.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
