MAINTENANCE & FAULT FINDING
2. Place the ribbon material
on rewind roll
3. Adjust the centre screw 2
(8 mm top Key) according
the instructions below.

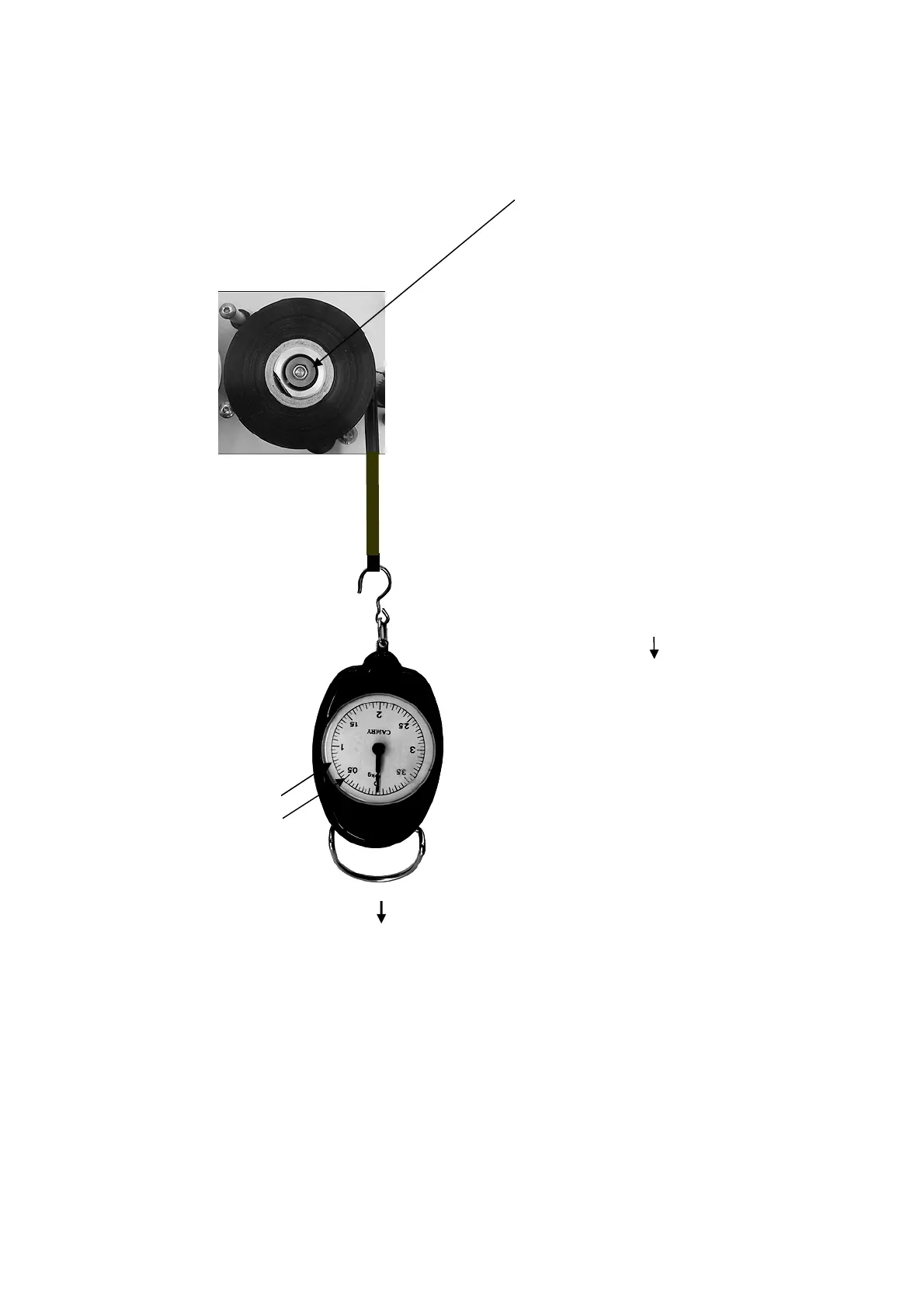

4. Connect a spring balance to
the ribbon material, and pull
the ring
5. The release moment (1)
should be approximately. 0.6
– 0.7 Kg.
6. Once moving the gauge
should indicate
approximately 0.500 Kg (2)
for correct adjustment.
Pull
