Every field is surrounded by a virtual rectangle. The anchor point determines where
the x and y coordinate touches this rectangle. The anchor point is also used as the
point of rotation. The default is Top Left.
DESIGN ITEMS
General Settings for Design Items
Certain settings are common for most design item
explained before getting to the individual Design Items.

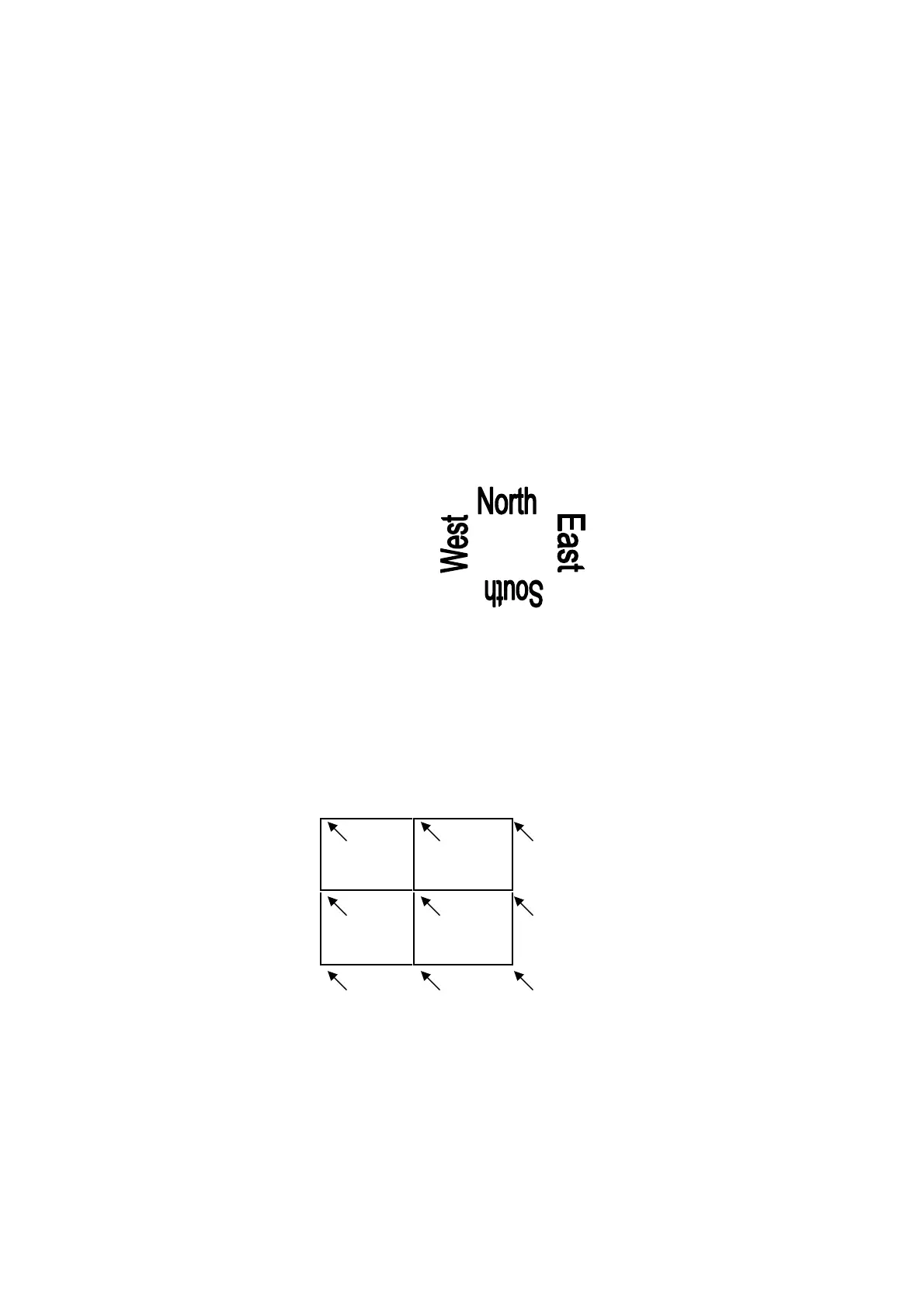

Rotation
A design item can be rotated to 0, 90,180 and 270 degrees. Directions a
North, South, East and West. By pressing
Anchor Point
Top
Centre
Top
Right
Right
Centre
Centre
Top Left
Left
Centre
Bottom
Left
Bottom
Centre
Bottom
Right
