20140704#1.0 EBS Ink Jet Systeme 3
Components of Portable
Printer System
See the figures:
.
1. Upper guide roll.
2. Nozzle plate - front part of the
print head (ink outlet).
3. Lower guide roll, to synchronize
printing.
4. Laser pointer (shows the position
of the lowest nozzle during
printing).
5. Openings with plugs for adjusting
electromagnets.
6. Trigger - a print release button,
also used by other functions.
7. Printer base, battery and magnet
compartment.
8. Printer holder.
9. USB port with a cap.
10. Keypad.
11. Name plate.
12. LCD touch screen.

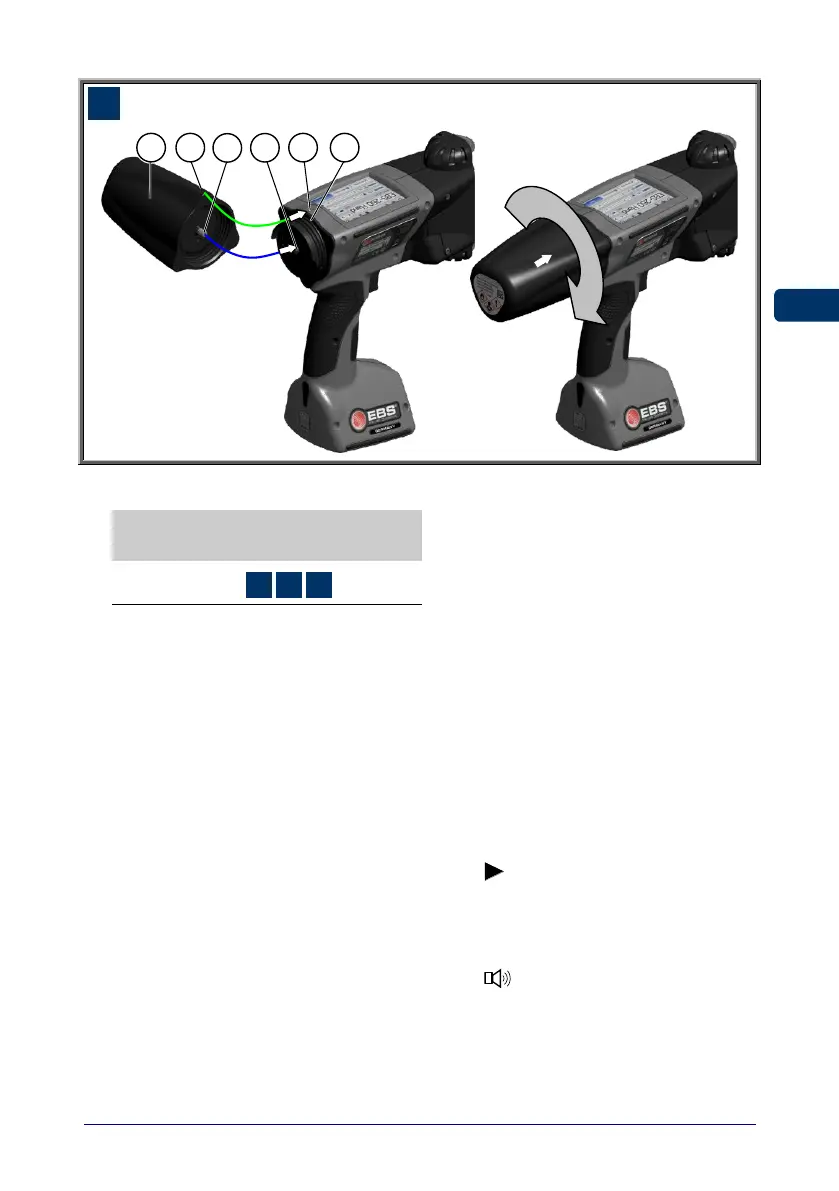

13. Ink container.
14. Ink container labels.
15. Battery charge socket.
16. Charge plug.
17. Guarantee seal.
18. Printer's ON/OFF button.
19. Printer ON LED indicator.
20. Battery charge LED indicator.
21. Radio communication LED
indicator.
22. PRINT ON/OFF LED indicator
(Print on state).
23. Print ON/OFF button.
24. Function key.
25. ”+” key.
26. ”-” key.
27. Printer middle line.
28. Power pack to charge printer
batteries.
29. Plug of power pack 28.
30.
OPEN/CLOSED indicator for
ink container.
31. Container valve.
32. Ink system needle.
33. Ink container gasket.
34. Buzzer - a buzzing signal
generator, located inside element
8 of the printer.
