Ecolab Elados EMP II E60 - Selecting; Setting Operation Mode; Current; User Defined

417101438_EMPII_E60.docx
- 103 -
Rev. 11-02.14
10.2.4.1 Selecting

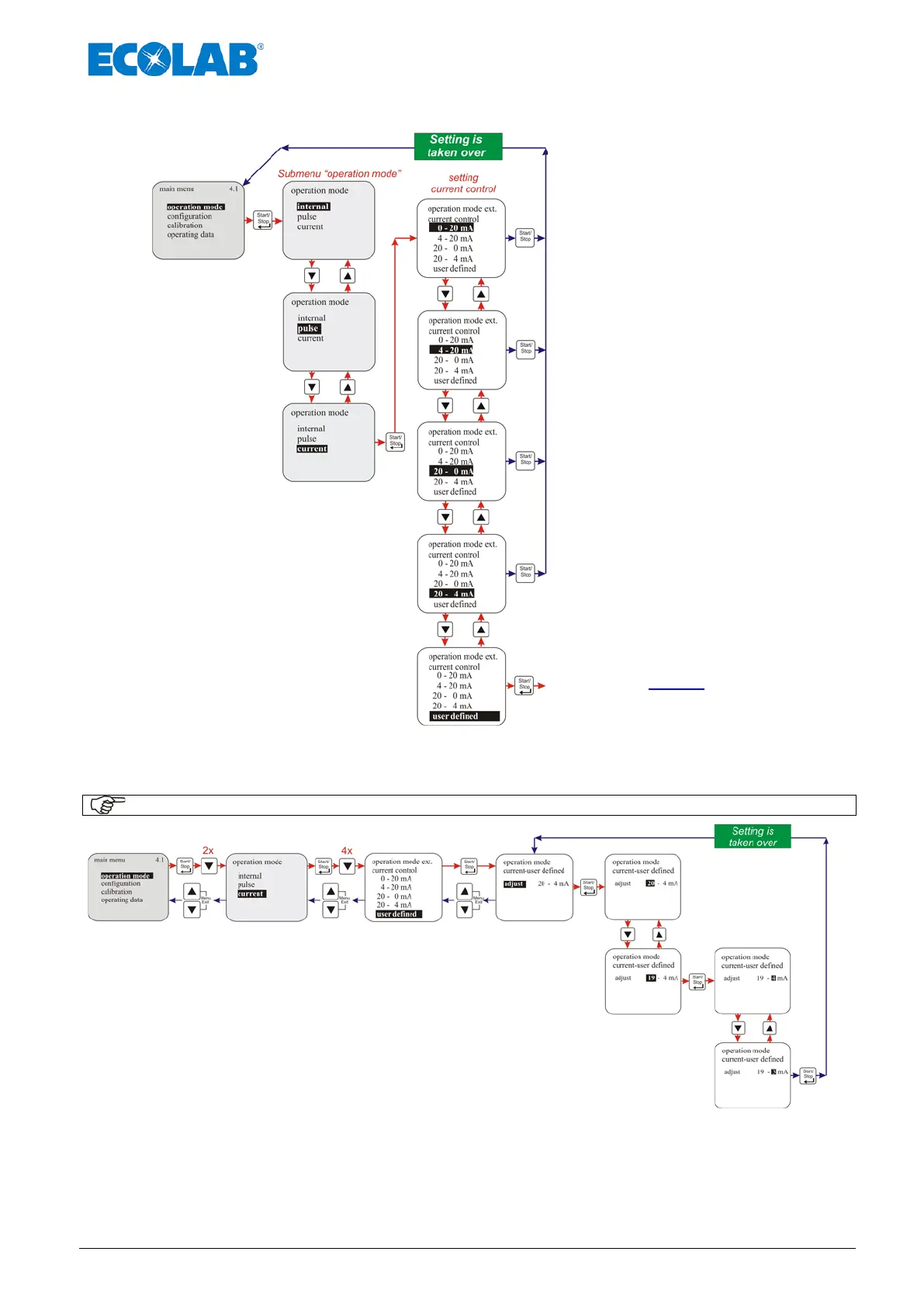

Fig. 10.11 Operating mode / current
(external standard signal): Selecting
see chapter 10.2.4.2
10.2.4.2 Setting operation mode / current / user defined
NOTE
The difference in the set values must be greater than or equal to 5. (e.g. min 10 max 15).
Fig. 10.12 Setting operating mode / current / user defined
