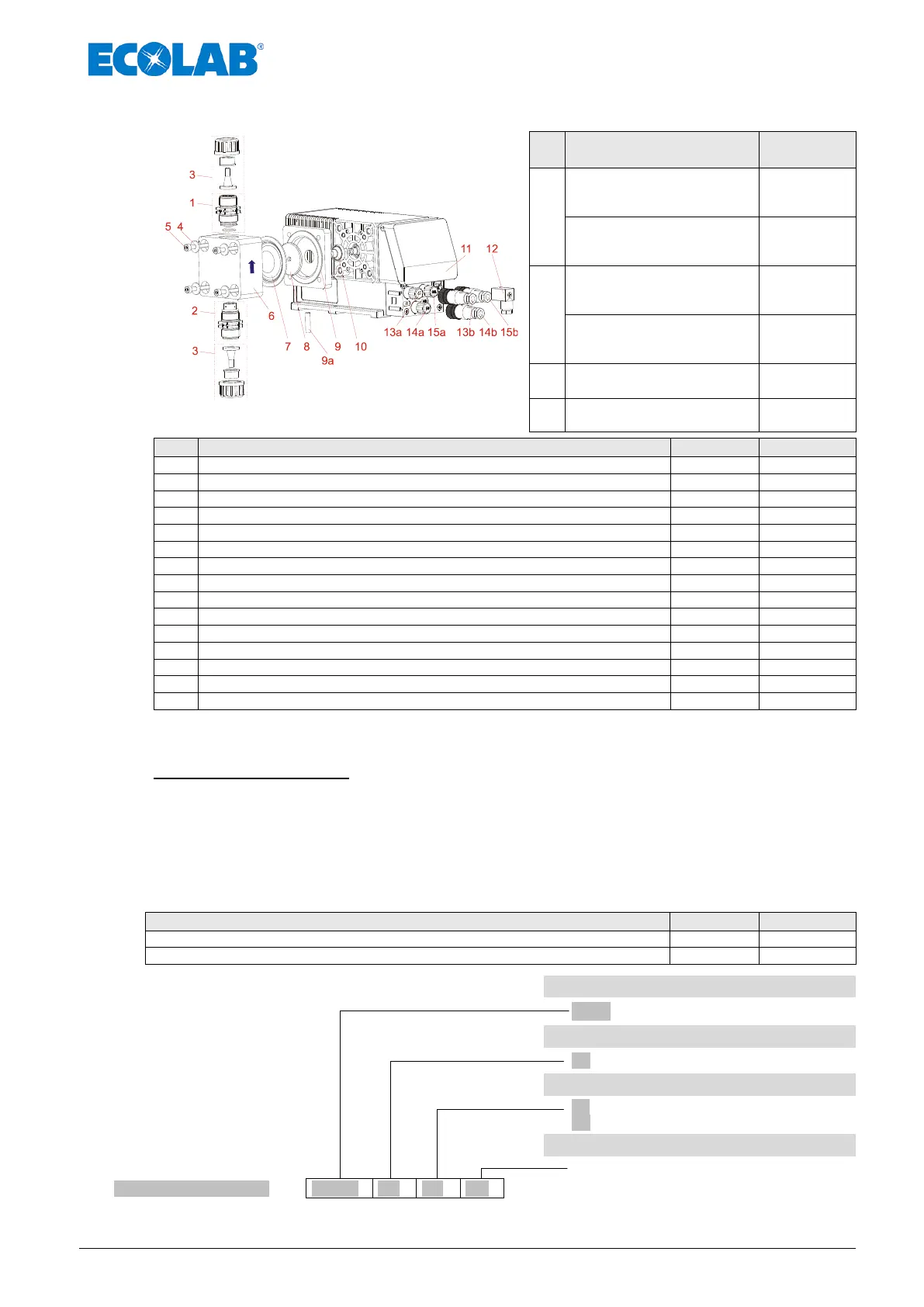

13.4 Exploded drawing / list of parts, type 00240
Fig. 13.2 Exploded drawing / list of parts, type 00240
Description
1
(Viton B), DRV PVFPKE000
249494
(10099740)
DRV PVEPKE000
249495
(on request)
2
(Viton B), SAV PVFPKE000
249474
(10005334)
SAV PVEPKE000
249475
(on request)
3
Connection set, PVDF,
G 5/8 i - hose 6/12, 10/16
4
Disc, B15 x 5.3 x 1.6
DIN9021 ISO7093 V2A
Socket head screw, M5 X 50 DIN 912 V
Dummy connector for empty report input
Cap for empty report and stroke signal output
Dummy connector for pulse and standard signal input
Plug for 4-terminal (3-terminal) empty report input
Plug for 4-terminal, special coding, empty report and stroke signal output
Plug for 5-terminal pulse and standard signal input
13.5 Wearing part set – type 00240
consisting of (each 1 x):
• Suction valve (Pos. 2)
• Pressure Valve (Pos. 1)
• Connection set for hose 4/6, 6/8, 6/12 mm (Pos. 3)
• Diaphragm (Pos. 7)
• Support disk (Pos. 8)
• Bellow (Pos. 10)
Description - Wearing Part Set EMP II
1. Pump type (pump capacity)
00240 = 24 l/h
2. Valve material
PV = PVDF
3. Sealing material
FP = Viton B
EP = EPDM
KE = ceramics
