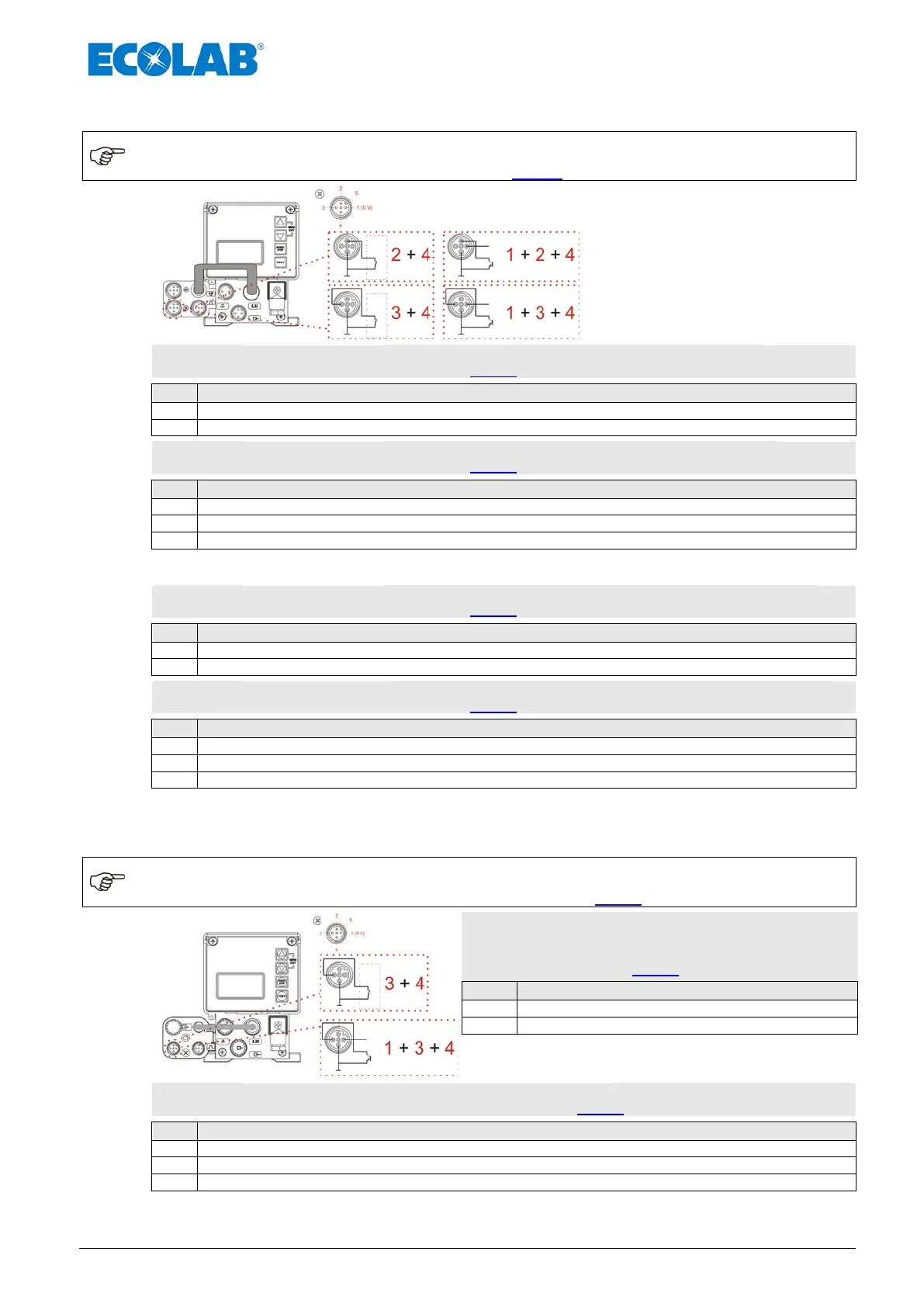

8.2.3.1 Installing the batch pulse
NOTE
The batch function must be activated in menu first. The selection must also be made of
whether the pins 2+4 (input “pulse”) or 3+4 (input “metering lock”) should be used for the
batch metering start pulse (see chapter 10.3.15 “Configuration / batch”)
Fig. 8.9 Installing the batch impulse
2 + 4 = Input batch metering with potential-free contact with selection input „pulse“ at
configuration / batch (see chapter 10.3.15).
1 +2 + 4 = Input batch metering with electronic switch (NPN) with selection input „pulse“ at
configuration / batch (see chapter 10.3.15)
or
3 + 4 = Input batch metering with potential-free contact with selection input „metering lock“ at
configuration / batch (see chapter 10.3.15).
1 +3 + 4 = Input batch metering with electronic switch (NPN) with selection input „metering lock“ at
configuration / batch (see chapter 10.3.15).
8.2.3.2 Installing the metering lock (optional connector VII or VIII)
NOTE
The metering lock function must be activated in menu first. The selection must also be
made of whether the pins 2+4 (input “pulse”) or 3+4 (input “metering lock”) should be
used for the metering monitoring input (see chapter 10.3.15).
3 + 4 = Input metering monitoring with potential-free
contact, with selection „metering lock“ at
configuration metering monitoring
(see chapter 10.3.13).
Fig. 8.10 Installing the metering lock (optional connector VII or VIII)
1 +3 + 4 = Input metering monitoring with electronic switch (NPN) with selection input „metering lock“
at configuration metering monitoring (see chapter 10.3.13).
