Ecolab Elados EMP II E60 User Manual

417101438_EMPII_E60.docx
- 91 -
Rev. 11-02.14
8 Upgrading the EMPII E60 to the EMPII E60
PLUS
To upgrade the EMP II E60 to the EMP II E60
PLUS
and thus access the additional functions,
obtain the dongle box or the MicroFlow
PLUS
from our range of accessories.
The dongle box is a slot extension, as well as a means of connecting an oval gear meter for
measuring the metering rate. If the dongle box is fitted and is activated by switching the pump
off and then on again, "E60+" appears on the bottom left of the pump's display unit. If an
OGM
PLUS
(oval gear meter) is connected to slot V on the dongle box and is activated by
switching the pump off and then on again, "E60++" appears on the pump's display unit, and
the oval gear meter function is automatically enabled under Configuration in the Pump menu.
In addition to the slot expansion, the MicroFlow
PLUS
enables a special flow rate monitoring
sensor to be analysed via conductivity measurements. When the MicroFlow box is connected
and is activated by switching the pump off and then on again, "E60+microflow" appears on
the bottom left of the pump's display unit, and the MicroFlow function is automatically enabled
in the appropriate sub-menu under Configuration in the Pump menu.
If the pump software recognises that there is a dongle box, OGM
PLUS
or MicroFlow box
connected, and the communication is then interrupted between the pump and the peripheral
unit (through the removal of the unit, for example), an error message is displayed
(see chapter 12.2
"Alarm signals (Display)").
To prevent this error message appearing repeatedly, the communication (connection) must
be restored, or the analysis must be disabled in the pump software (see chapter
12.2.1
"Disabling a dongle box, OGM
PLUS
, MicroFlow
PLUS
in the pump software").
The only outward difference between a dongle box and a MicroFlow box is a sticker with the
appropriate item number (dongle box Art. No. 248606, EBS No. 10016094, MicroFlow box
Art. No. 248611, EBS No. on request)

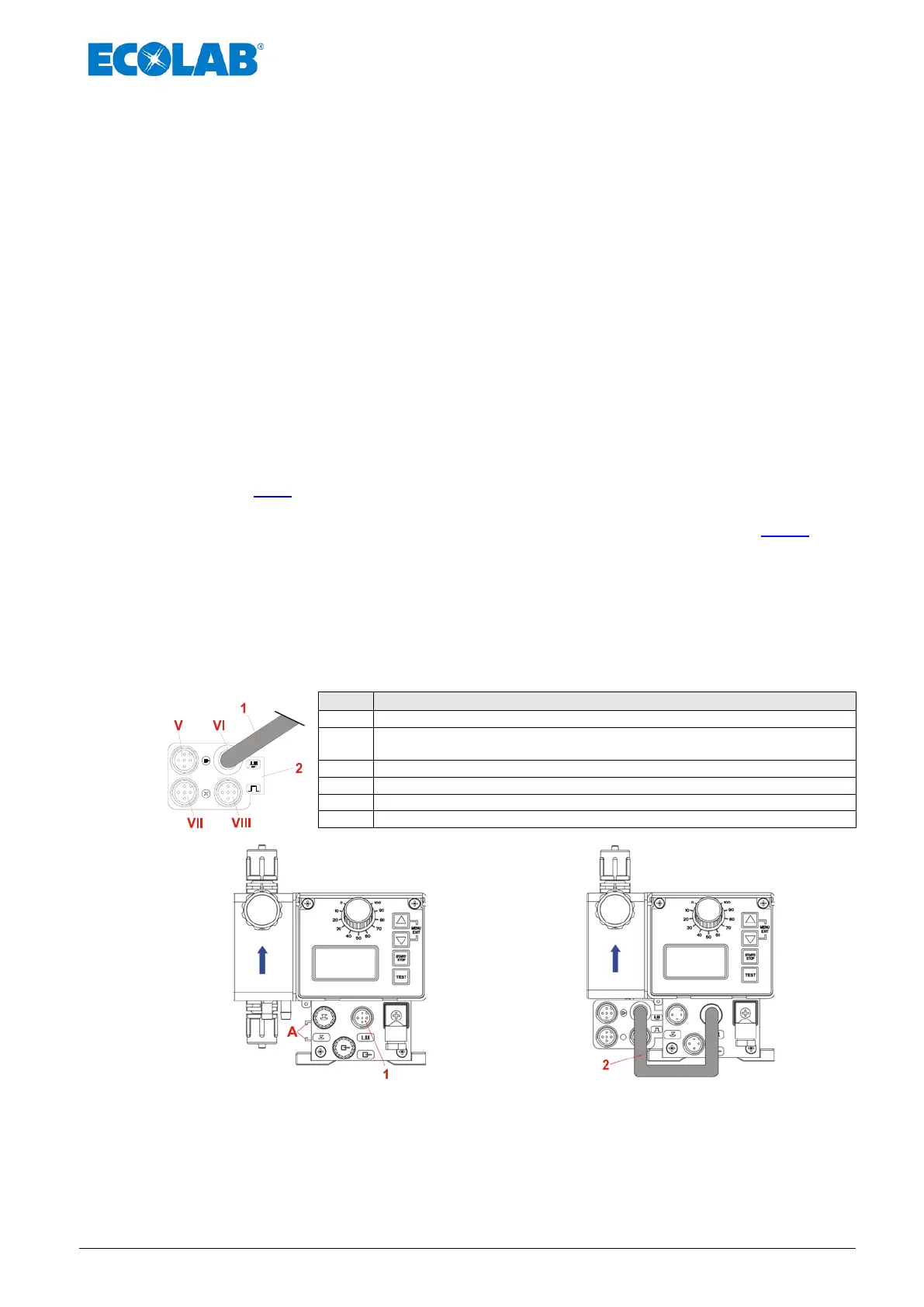

8.1 Fitting of the Dongle Box respectively the MicroFlow-Box
Pos.
Description
V
input for oval gear meter or MicroFlow transducer
VI
Fixed connector cable for connecting the pulse input to the EMP pump
(input II)
1
Connection lead for connection to input II of the pump
2
Dongle-box or MicroFlow-box
VII
input for batch pulse and metering lock
VIII
input for pulse, standard signal input (mA) and metering lock
Fig. 8.1 Fitting of the Dongle-Box respectively the MicroFlow-Box
Fig. 8.2 Fitting of the Dongle-Box or the MicroFlow-Box 1
Fig. 8.3 Fitting of the Dongle-Box or the MicroFlow-Box 2
