14.5 Delivery capacity depending on the backpressure and stroke setting
Setting accuracy + 15 % - 5 % of the nominal value; all data relate to water at 20 °C and
comply with the notes in the operating instructions.

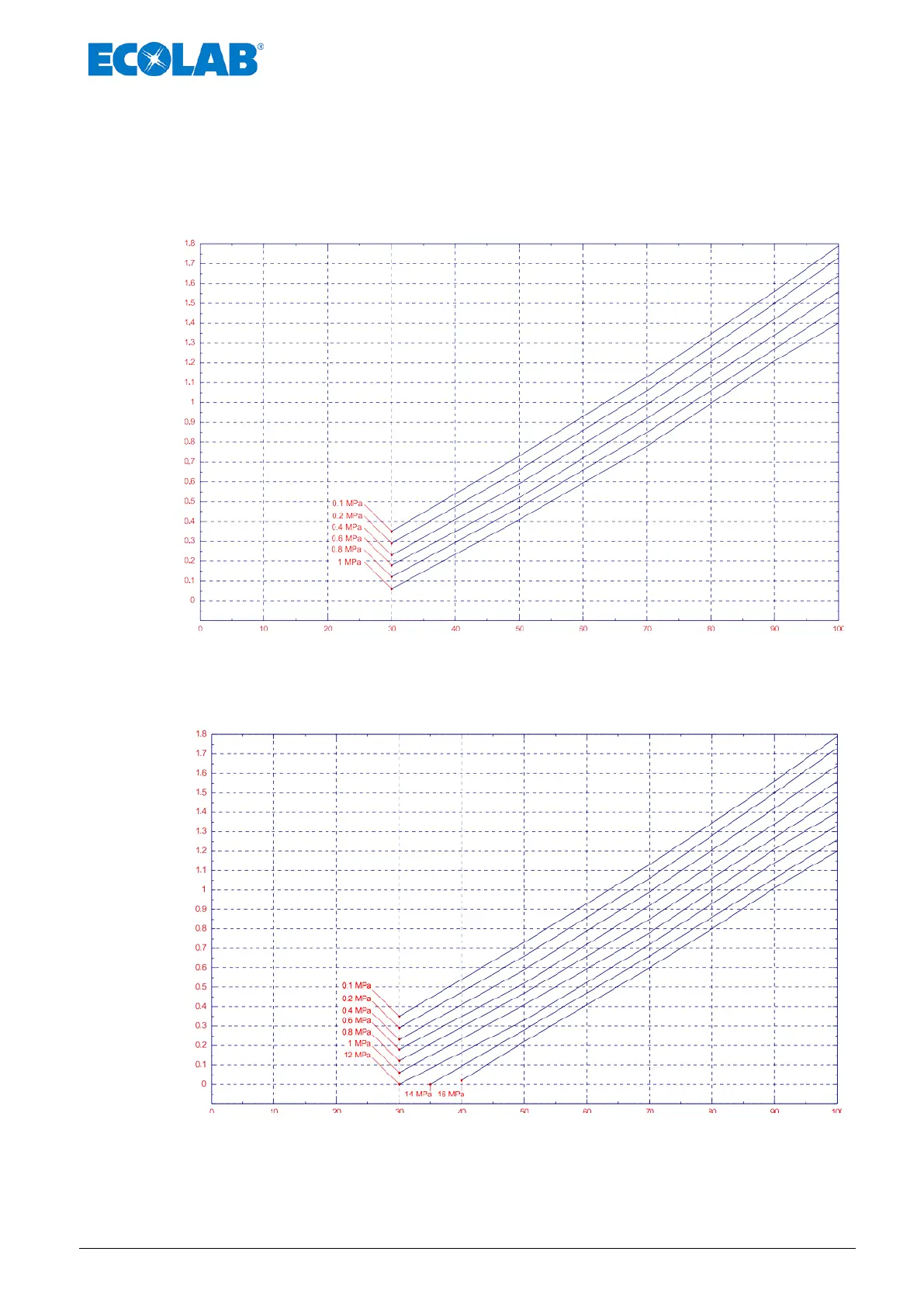

14.5.1 Delivery capacity type V3014 / 1 MPa (10 bar)
Stroke length setting (%)
Fig. 14.9 Delivery capacity type V3014 / 1 MPa (10 bar)
14.5.2 Delivery capacity type V3014 / 1,6 MPa (16 bar) (special version: higher pressures)
Metering volume (l/h)
Stroke length setting (%)
Fig. 14.10 Delivery capacity type V3014 / 1,6 MPa (16 bar) / (special version: higher pressures)
