10.4.4 Calibration / Manual
If the calibration value to be entered is known, a “dry calibration” (immediate entry of the
value without a previous calibration process) can be conducted.
However, this method is not very accurate as no consideration is given to the on-site
conditions (back-pressure, viscosity, cable cross-sections and lengths etc).

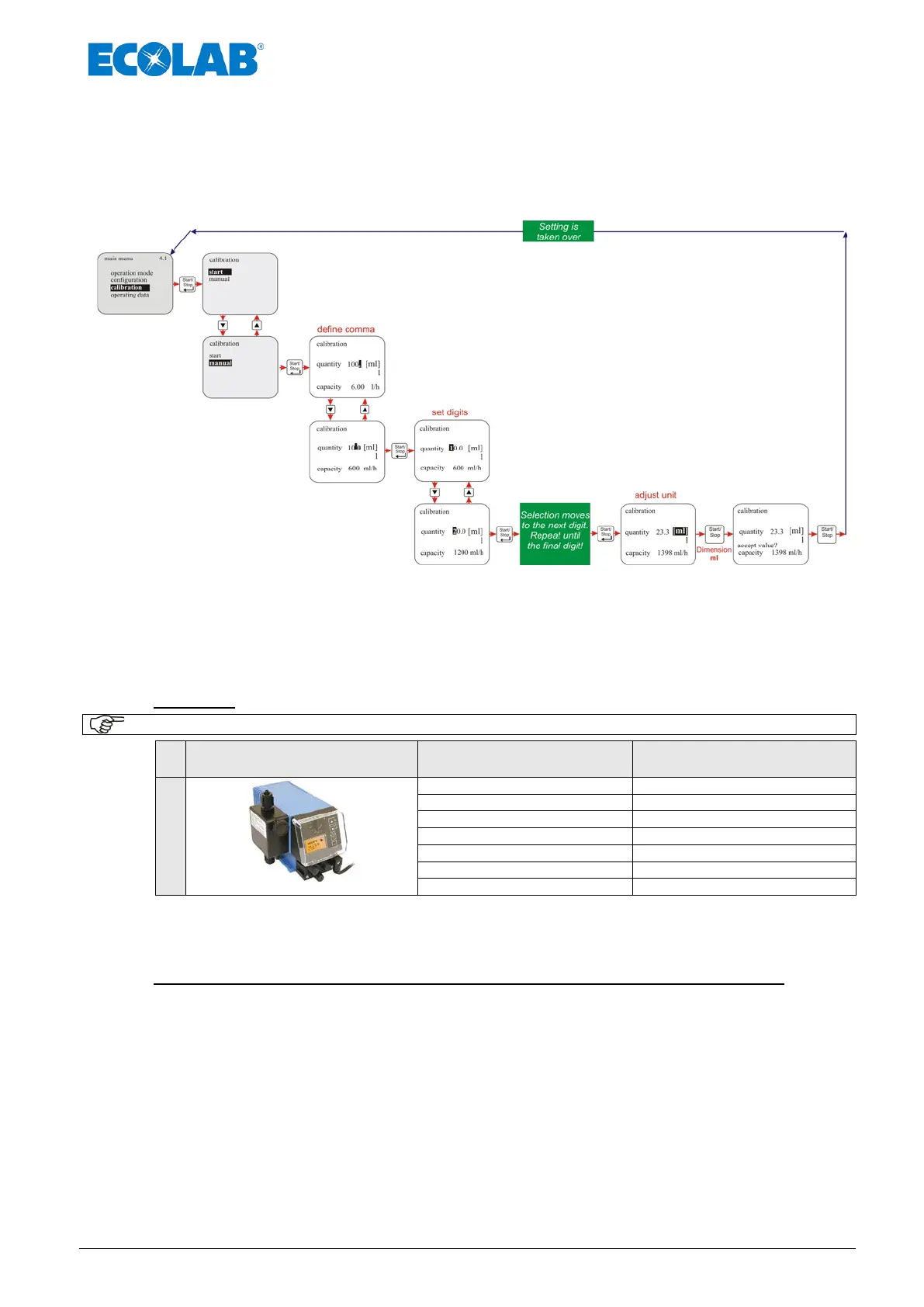

Fig. 10.60 Calibration / Manual
10.4.4.1 Calibration data table
The pump capacity in l/h is allocated to the pump’s electronics on the basis of the calibration
values entered in the table.
Example: A specified value of 23.3 ml results in a pump capacity of 1.4 l/h.
NOTE
These values relate to the metering medium of water at 20°C
Pump
Pump capacity [l/h]
at 50 (60) Hz
Pump calibration value [ml]
at 50 (60) Hz
EMP II
Fig. 10.61 Calibration data table
1,4 (1,7)
23,3 (28,3)
2,5 (3,0)
41,6 (50,0)
4,3 (5,1)
71,6 (85,0)
4,8 (5,7)
80,0 (95,0)
7,2 (8,6)
120 (143)
11,2 (13,0)
187 (217)
24,0 (29,0)
400 (483)
10.5 Operating data
The following operating data is recorded and displayed under this menu item:
Operating hours
Liter
Amount of pulses
