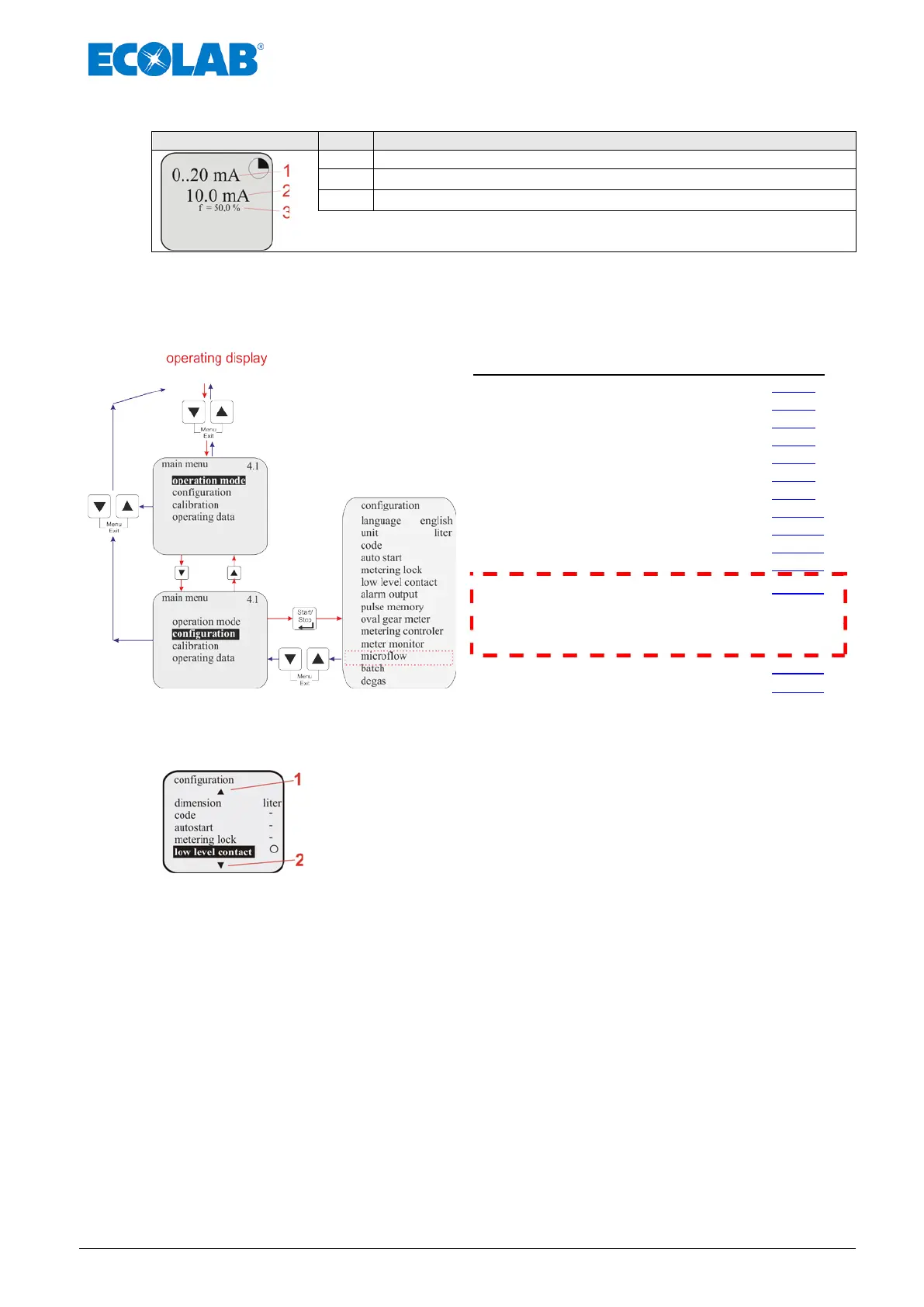

Ecolab Elados EMP II E60 User Manual

417101438_EMPII_E60.docx
- 104 -
Rev. 11-02.14
10.2.4.3 Display in the operating display
Display
Pos.
Description
1
Range of input signal, preset in the menu
2
Actual connected current value
3
Stroke frequency in %
Fig. 10.13 Display in the operating display
10.3 Configuration
10.3.1 Overview
Fig. 10.14 Configuration overview
Configuration of: see chapter:
 Menu language 10.3.3
 Units
10.3.4
 Code entry
10.3.5
 Startup settings
10.3.6
 Metering lock
10.3.7
 Low-level contact
10.3.8
 Alarm output
10.3.9
 Pulse memory
10.3.10
 Oval gear meter
10.3.11
 Metering controller
10.3.12
 Metering monitoring
10.3.13
 MicroFlow
10.3.14
This menu item only appears in conjunction with the
MicroFlow metering monitor, which is available as an
accessory, and replaces the menu item “metering
monitoring”.
 Batch 10.3.15
 Degas 10.3.16
10.3.2 “Scrolling the display“
Fig. 10.15 Configuration “Scrolling the
display”
The display possesses a "scroll function", i.e. some menu items are
only shown on the display when the end of the menu is reached on
the display. Using the symbols ▲ (Pos. 1) or ▼ (Pos. 2) on the
display, you can see which direction you can scroll in.
1 = (▲)scroll the display upwards
2 = (▼)scroll the display downwards
10.3.3 Configuration / Language
This is used to select the menu language.
