10.3.15.3 Batch / Input (only at E60 WITHOUT Dongle-box)
The “Input” setting is used to determine which input (pulse input or metering lock) at plug II
(or at plug V if a dongle-box is used) of the pump should be used to evaluate the start pulse
for the batch metering.
The start pulse cable connection depends on the selected input:
Input pulse
= plug II (or plug VII) Pin 2+4
see chapter 7.2.3.4 “Installing the batch
function” and 8.2.3.1 “Installing the batch
pulse ”.
Input metering lock
= plug II (or plug VII) Pin 3+4
NOTE
In this case, the original function (e.g. pulse) can no longer be used.
When using a dongle box, a separate input is available.

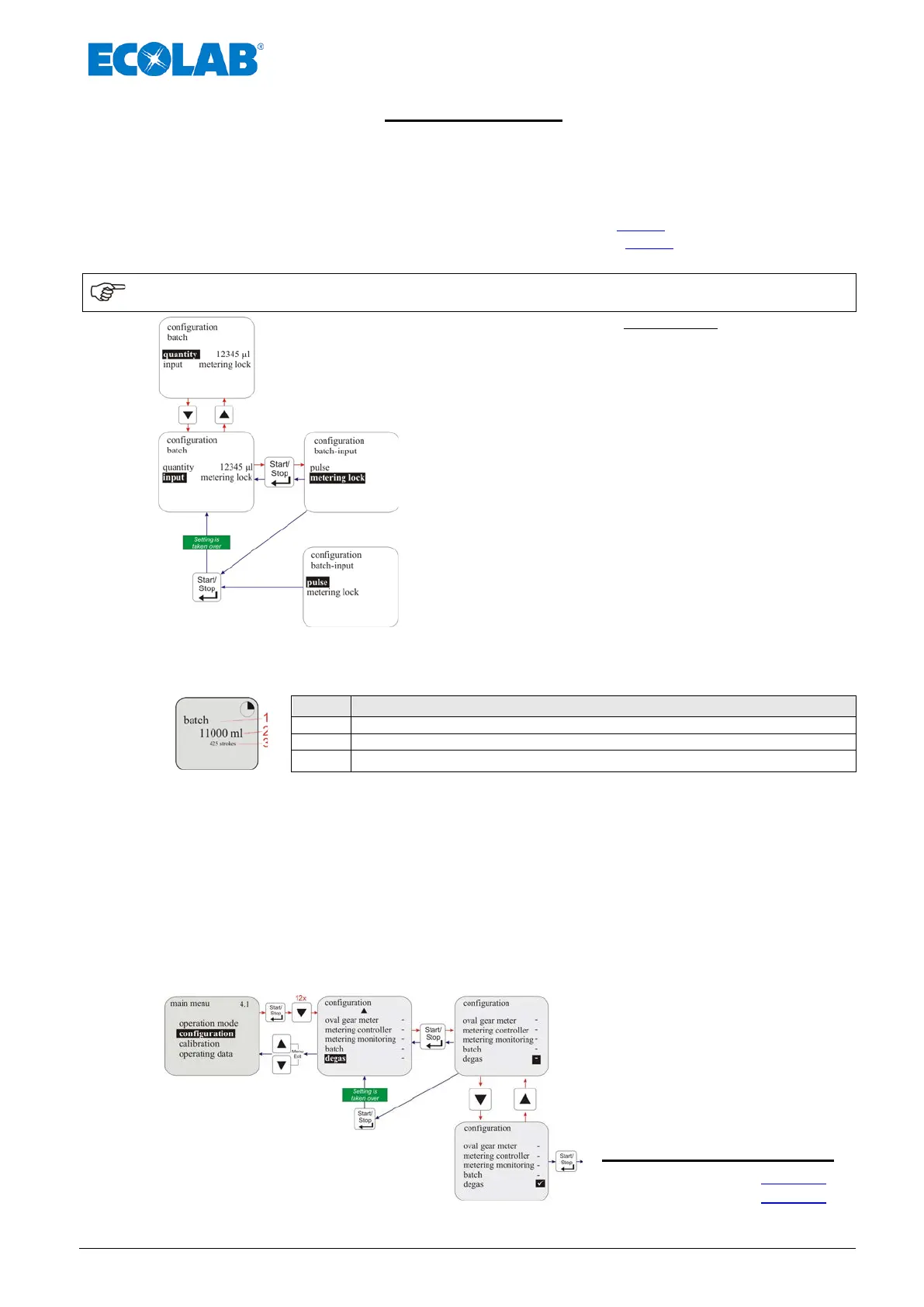

Fig. 10.49 Configuration Batch / Input (only at E60 WITHOUT Dongle-box)
Default setting = Metering lock
10.3.15.4 Display in the operating display
Pos
Description
1
Operation mode
2
Quantity remaining to be metered
3
Strokes remaining to be executed
Fig. 10.50 Configuration Display in the operating display
10.3.16 Configuration Degas
PLUS
On activating the “Degas
PLUS
” function and connecting an appropriate degassing valve, this
function enables the metering system to be degassed for a controlled time period. When
installing/commissioning the degassing valve, please consult the appropriate operating
instructions, art no. 417101377, EBS no on request.
10.3.16.1 Selecting
Fig. 10.51 Configuration Degas
PLUS
Selecting
- “Degas
PLUS
“ is inactive
(Default setting)
 “Degas
PLUS
“ is active
If degassing control is active, the
following items appear in the
submenu:
Menu item see chapter
• Degas strokes 10.3.16.2
• Degas break 10.3.16.3
