Ecolab Elados EMP II E60 User Manual

417101438_EMPII_E60.docx
- 90 -
Rev. 11-02.14

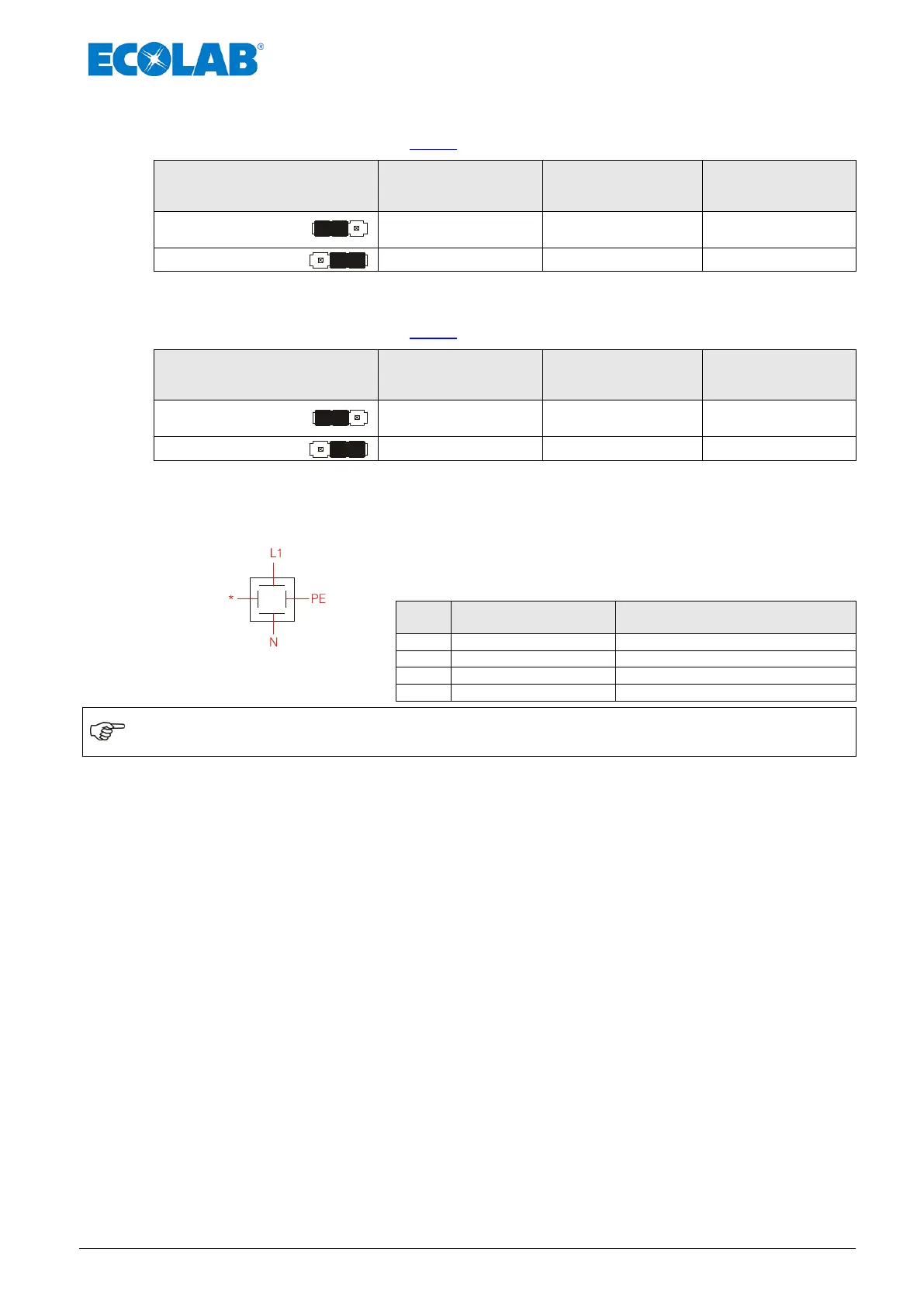

7.2.4.4 In the alarm output "ON"  configuration setting
(see Menu Description in chapter 10.3.9 “Configuration / Alarm output”)
Jumper
If “No Alarm“
(Alarm relay has not
pulled in)
If “Alarm“
(Alarm relay has
pulled in)
Power Off
(Alarm relay has not
pulled in)
Closing function:
(Default setting)
contact open contact closed contact open
Opening function:
contact closed contact open contact closed
7.2.4.5 In the alarm output “OFF”  configuration setting
(see Menu Description in chapter 10.3.9 “Configuration / Alarm output”)
Jumper
If “No Alarm“
(Alarm relay has
pulled in)
If “Alarm“
(Alarm relay has not
pulled in)
Power Off
(Alarm relay has
pulled in)
Closing function:
(Default setting)
contact closed contact open contact open *
Opening function:
contact open contact closed contact closed
* fail-safe function, (safe in the event of failure)
7.2.5 Connector assignments of slot IV, mains power supply
Fig. 7.24 Connector assignments of slot IV, mains
power supply
The mains power supply enters through a four-terminal frontal
plug connector. This already has a plug screwed into it in the
factory.
Pin
Conductor coloring
(cable connection)
Assignment
L1
black
Mains / external conductor
N
blue
Neutral wire
PE
yellow / green
Protective earth wire
*
-
Not assigned
NOTE
To ensure the imperviousness of the mains power connection to humidity, the gasket
(contained in the delivery scope and already built-in in the as-delivered condition) must be
inserted and the fixing screw tightened into the middle of the plug.
 Connect the mains power supply cable to the power grid.
