Chapter 17 Monitoring AG
17.1 Overview
The monitor uses ISA sidestream gas analyzer (hereinafter called ISA analyzer), Dräger AG
sidestream Minimodule (hereinafter called Dräger Minimodule), and IRMA mainstream module
(hereinafter called IRMA module) to monitor the anesthetic gas which can be used to measure the
gases of adult, pediatric and neonatal patients during anesthesia, recovery and respiratory care.
And the anesthetic gas includes Halothane (HAL), Isoflurane (ISO), Enflurane (ENF),
Sevoflurane (SEV), Desflurane (DES), CO
2
, N
2
O, and O
2
(Optional). The user can view the AG
measurement result via connected CMS.

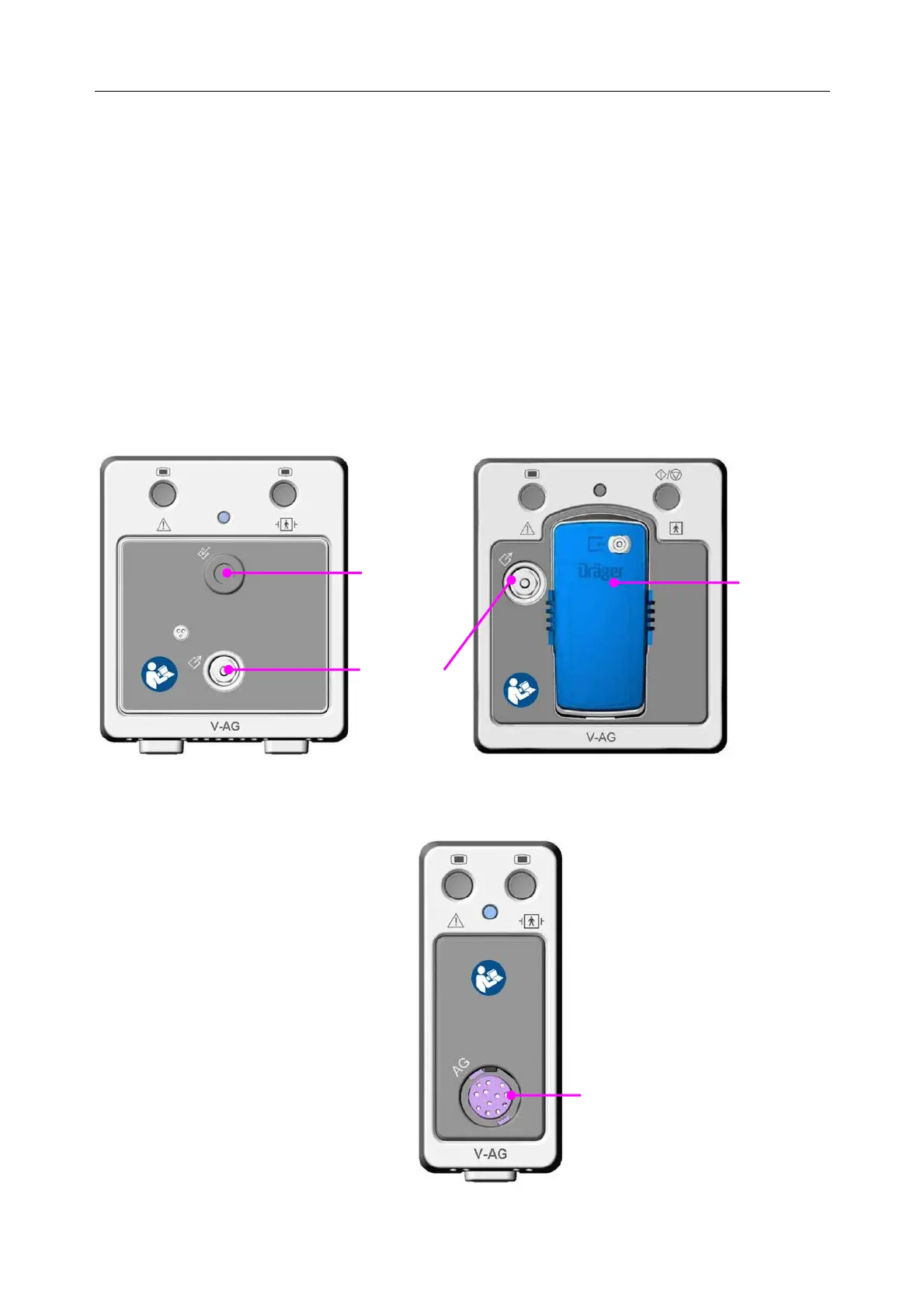

Identifying AG Module
Sideatream Module: From left to right are ISA analyzer and Dräger Minimodule.
Mainstream Module: IRMA module
Gas inlet
Gas outlet
Connector for
A
G transduce
r
Watertrap
holder
