Patient Monitor User Manual Basic Operation
- 27 -
4 Second module-specific key, such as the zero key for IBP.
5 Module name.
Plugging/ Unplugging Modules
Users can plug and unplug modules during monitoring.
To plug a module, insert the module until the lever on the module clicks into place.
To unplug a module, press the lever upwards and pull the module out.
NOTE:
Make sure the indicator on the module is on after the module is plugged in the monitor.
Otherwise, re-plug the module until the indicator is on.
3.1.4 XM Module
The XM module is integrated with functions of multiple measurement modules of ECG, RESP,
SpO
2
, TEMP, IBP and NIBP. Plug the XM module in the XM module slot on the left side of the

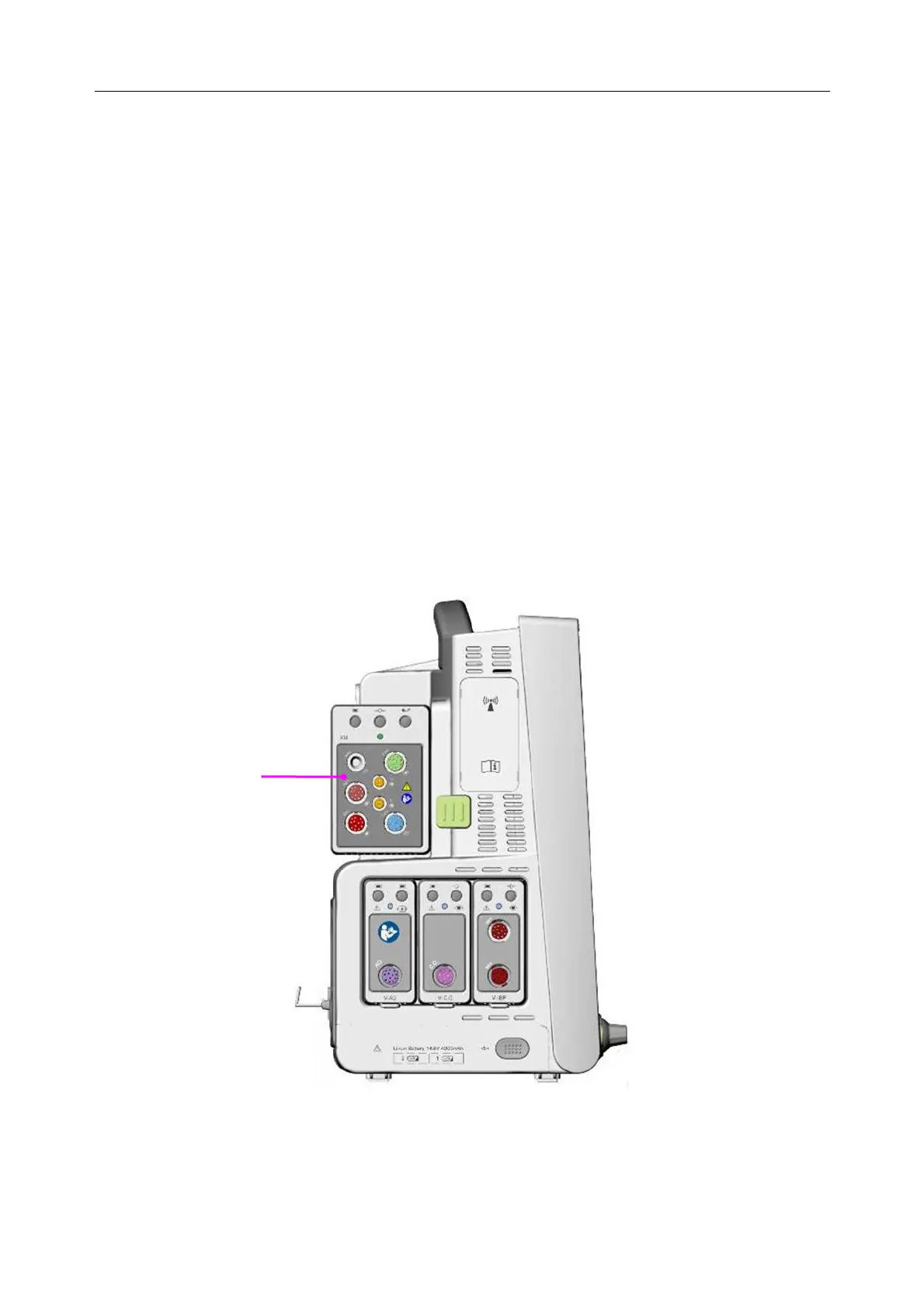

monitor, and it is connected with the monitor as shown below:
XM module
mounted on
the left of
the monitor
