Patient Monitor User Manual Basic Operation
- 26 -
7 V-ICG module: Impedance cardiography module
8 V-Link module: for connection with external devices
9 V-AG module (Sidestream): Dräger Minimodule for sidestream
10 V-NIBP module: Omron non-invasive blood pressure module
11 V-AG module (sidestream): Anesthetic gas module for sidestream
12 V-CO
2
module (sidestream): Respironics carbon dioxide module for sidestream
13 V-CO
2
module (sidestream): EDAN carbon dioxide module for sidestream
14 V-RM module: Respiration mechanics module
Example Module

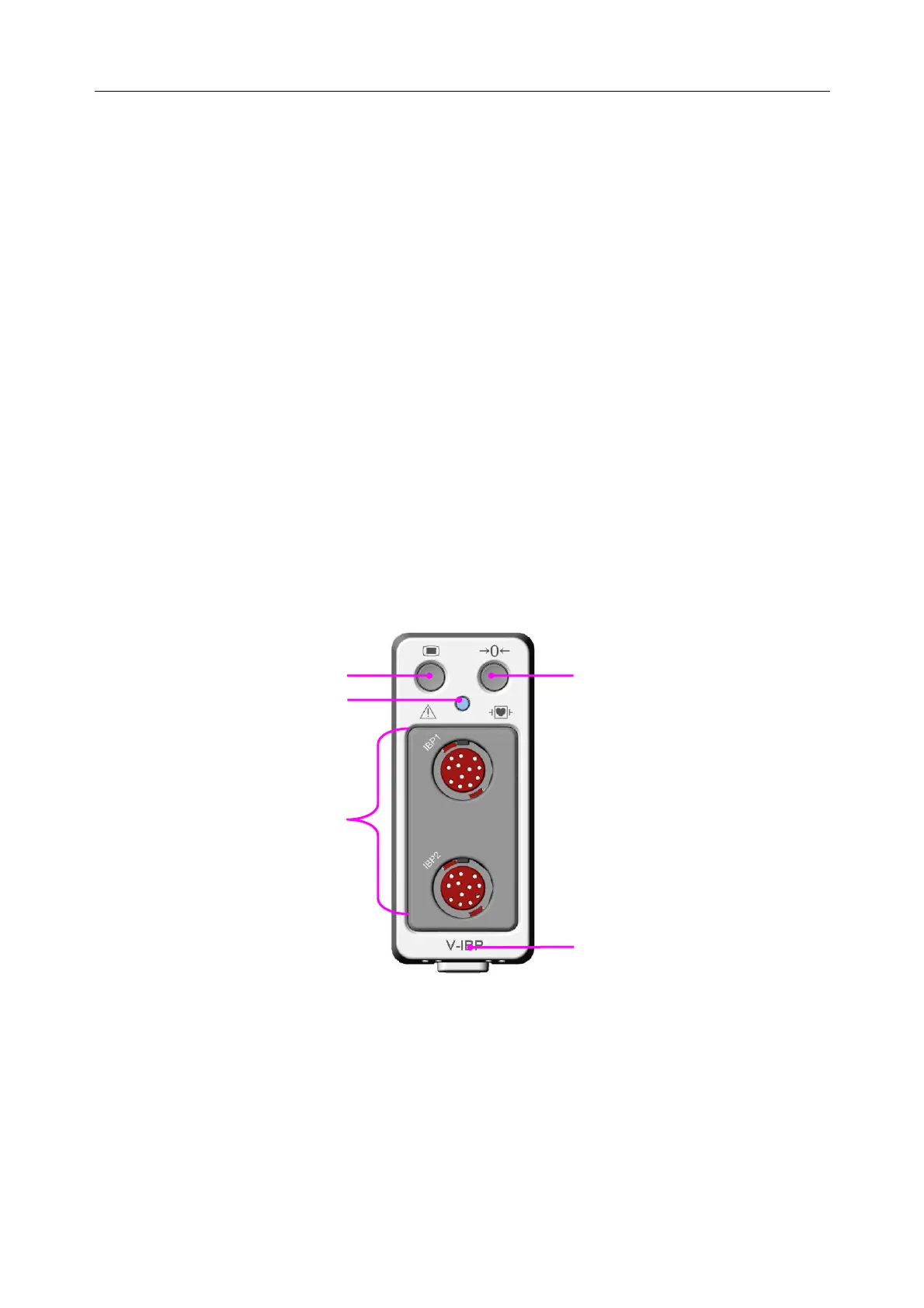

The structure of each plug-in module is similar: the module name is located at the bottom part;
hard keys are in the upper part; measurement connectors are in the lower part. Take the V-IBP
module for example:
1 Setup key: press to enter setup menu of the measurement module.
2 Indicator
On: when the module works normally.
Flash: when the module is being initialized or malfunctioning.
Off: when the module is unconnected.
3 Connectors for transducer/sensor
1
2
3
4
5
