Patient Monitor User Manual Product Specifications
- 279 -
Interface Signal 12 V power supply and PWM waveform
Interface Type PS2 connector

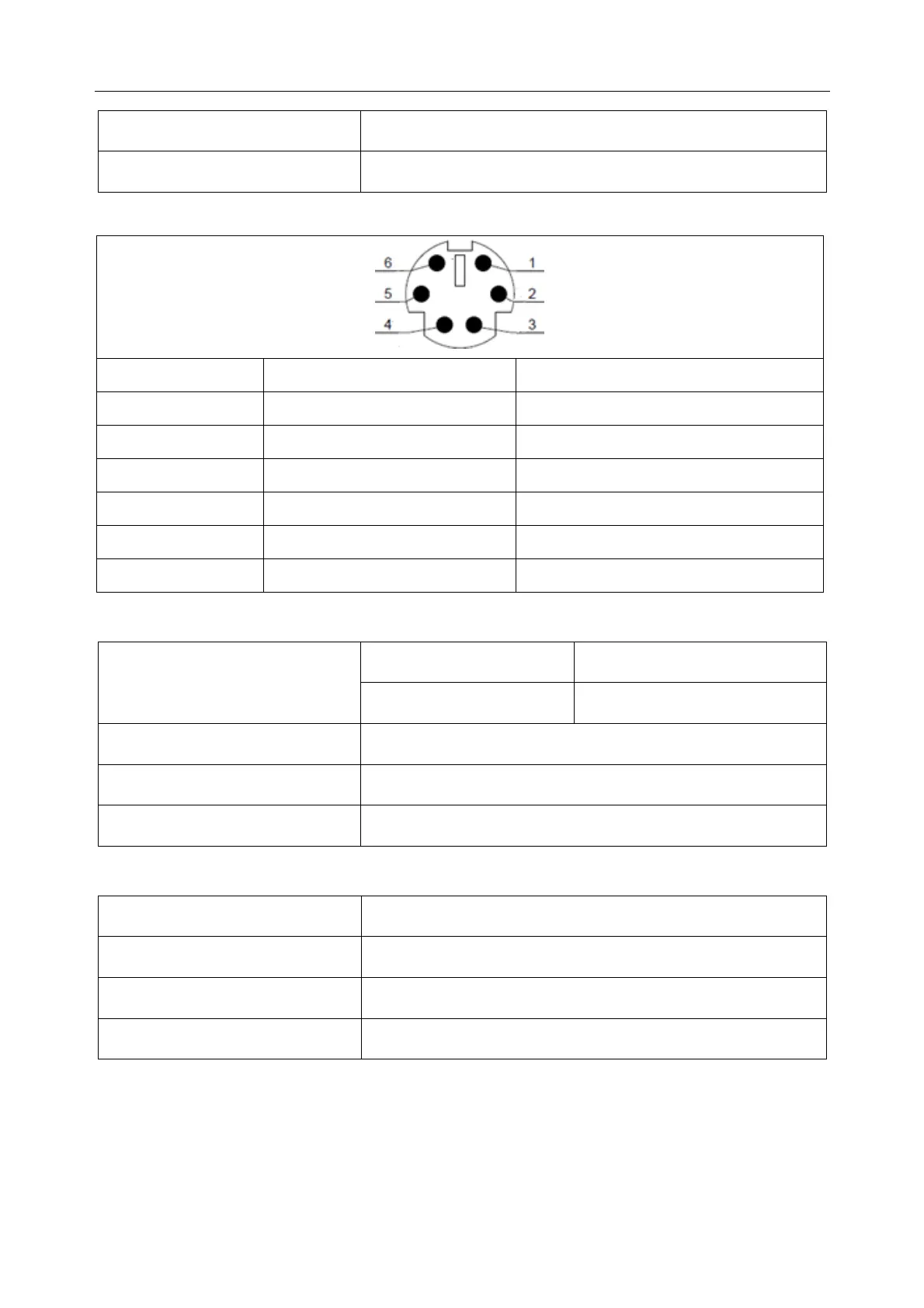

PS2 connector Definition for Analog Output/Defibrillator Synchronization/Nurse Call
PIN.NO. Signal name Signal Description
1 ANALOG_OUT Analog out signal
2 GND Ground
3 SYS_OUT Defibrillator Synchronization signal
4 +12V Nurse call power
5 GND Ground
6 NURSE_OUT Nurse call control signal
A.25.4 USB Interfaces
Number of USB Interfaces elite V5/ elite V6 Standard: 4
elite V8 Standard: 4; optional: 4
Drive Mode HOST interface, USB1.0/2.0 protocol
Power Supply 5 VDC ± 5%, 500 mA Max.
Interface Type USB A-type port
A.25.5 VGA Interface
Number of VGA Interface 1
Horizontal Refreshing Rate (30-94) KHZ
Video Signal 0.7 Vpp @ 75 Ohm, HSYNC/VSYNC signal TTL
Interface Type DB-15 female receptacle
A.25.6 DVI Interface*
*Auto drive is only applicable to DVI display. A HDMI-to-DVI tieline is required.
