Patient Monitor User Manual Basic Operation
- 24 -
NOTE:
1 If incomplete display occurs on the screen of an external display connecting to the
monitor via the VGA output, adjust it with the button for automatic screen adapting of
the external display, or refer to its user manual.
2 The functions of nurse call, analog output and defibrillator synchronization are only
available when the XM module is inserted in the monitor.
3.1.2 Parameter Amplifier Mainframe
Users can connect one Parameter Amplifier Mainframe (PAM) to the monitor via a particular link
cable. The PAM provides 8 slots for mounting measurement modules. The number of modules
mounted in the PAM varies with the number of slots needed by different modules.

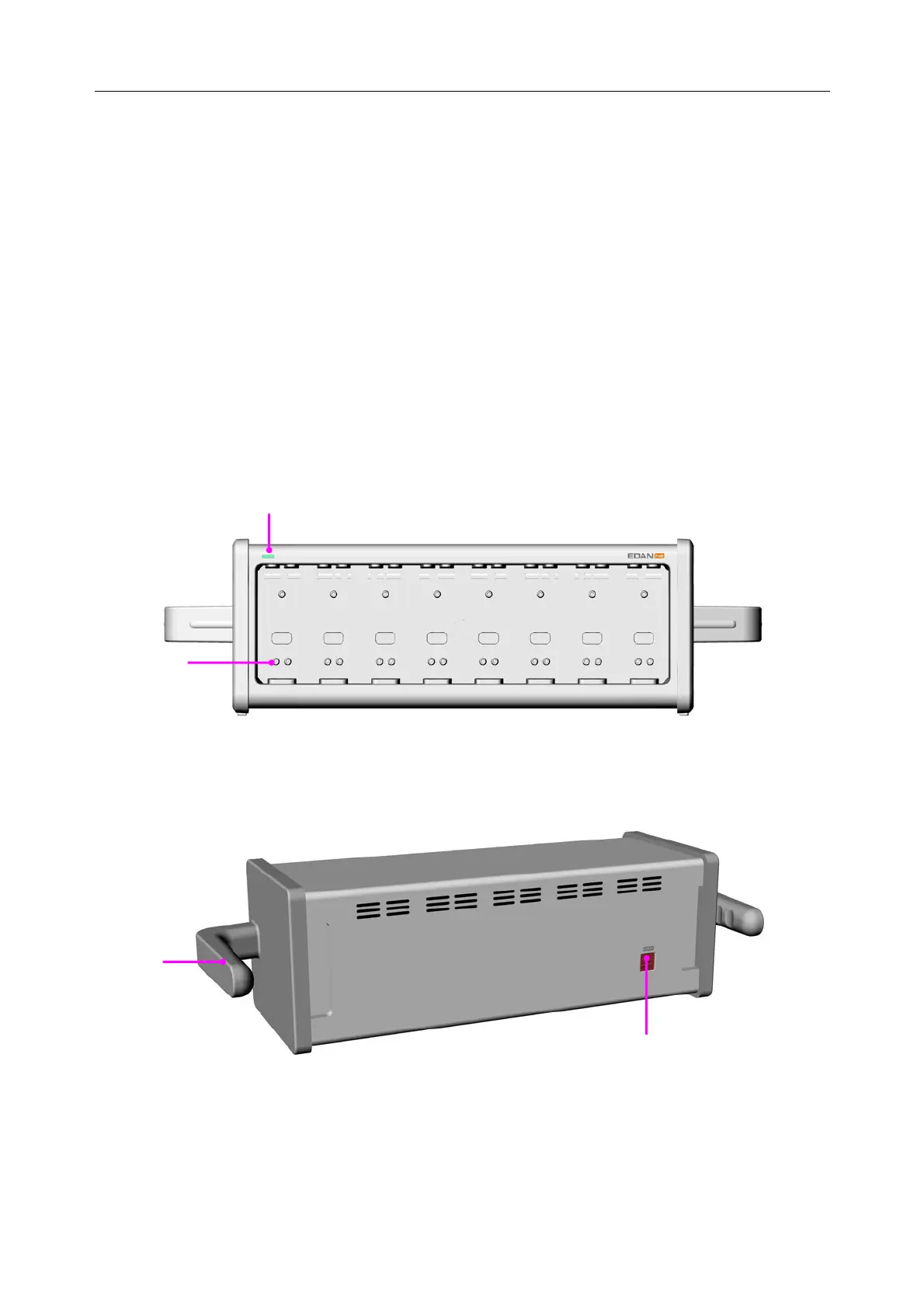

Front View
Rear View
1 Indicator
On: when the PAM works normally;
Off: when the PAM is disconnected from the monitor, power supply malfunction occurs
or the monitor is powered off.
3
4
2
1
To Next Page
