Patient Monitor User Manual Monitoring ICG
- 184 -

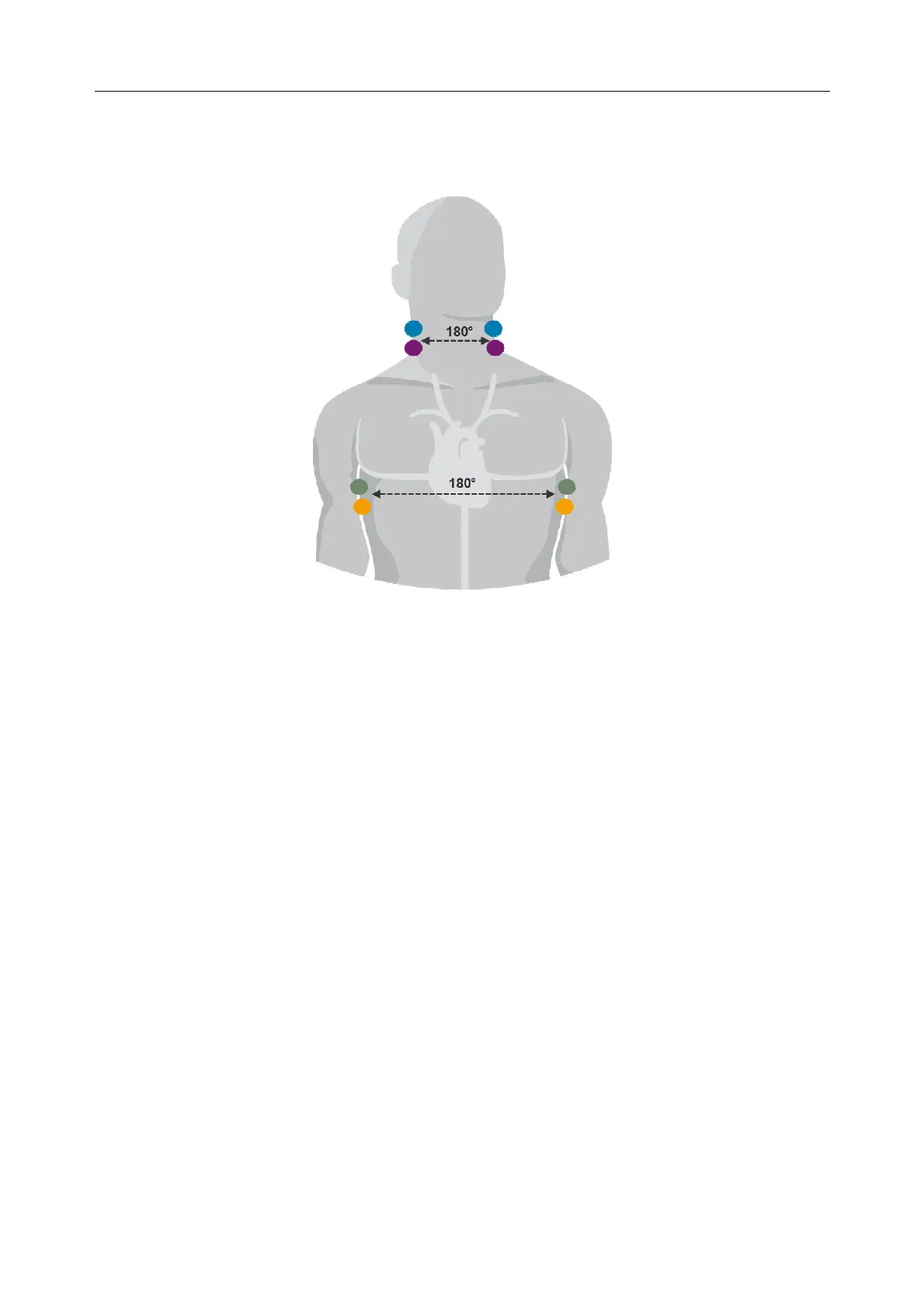

5. Indentify the right and left (with respect to the patient) branches of the ICG patient cable as
indicated on the patient cable yoke diagram and connect the respective leads in order from
top to bottom: blue, purple, green and orange.
20.5.3 Setting Patient Data
Choose ICG Setup > Input Info > Patient Info. Properly set the items including Height,
Weight, Gender and Date of Birth. The setting height should range from 130 cm to 250 cm;
weight 30 kg to 250 kg; age 13 to 130. If these items have not been set or the setting patient data
is invalid, you will be prompted to provide relevant information or reset the relevant items.
Choose
ICG Setup > Input Info and enter the ICG Input Info menu. The values of
physiological parameters including SYS, DIA, MAP, PAWP, CVP, Hb and SpO
2
are available to
set. You can also directly obtain the values of SYS, DIA, MAP, CVP and SpO
2
from the monitor
by selecting
Get Parameter Value. If any value of SYS, DIA, MAP, CVP or SpO
2
is absent or
invalid, the message
Get BP/ SpO
2
Value Unsuccess will appear in the menu.
20.6 Selecting Secondary Parameters
Choose ICG Setup > Secondary Param Select. You can select three secondary parameters to be
displayed on the ICG parameter area for your preference.
