Patient Monitor User Manual V-Link Module
- 186 -
WARNING
3 The monitor does not perform measurement, but only displays the measurement
result from the external device.
4 Settings on external device are independent of those on the monitor. Settings on the
monitor will not influence the external device’s setting.
5 Installation and debugging should be executed by service personnel or authorized
technician of the manufacturer.
6 If the value of the external device is inconsistent with that of the monitor, the external
device shall prevail.
7 When H&L device is connected with the monitor, H&L adopts the Request-oriented
mode for data transmission. In this mode, the data is updated every 5 seconds,
which may cause the displayed data on the monitor is not synchronized with that on
H&L, please refer to the data displayed on H&L device.
21.3 Connecting an External Device

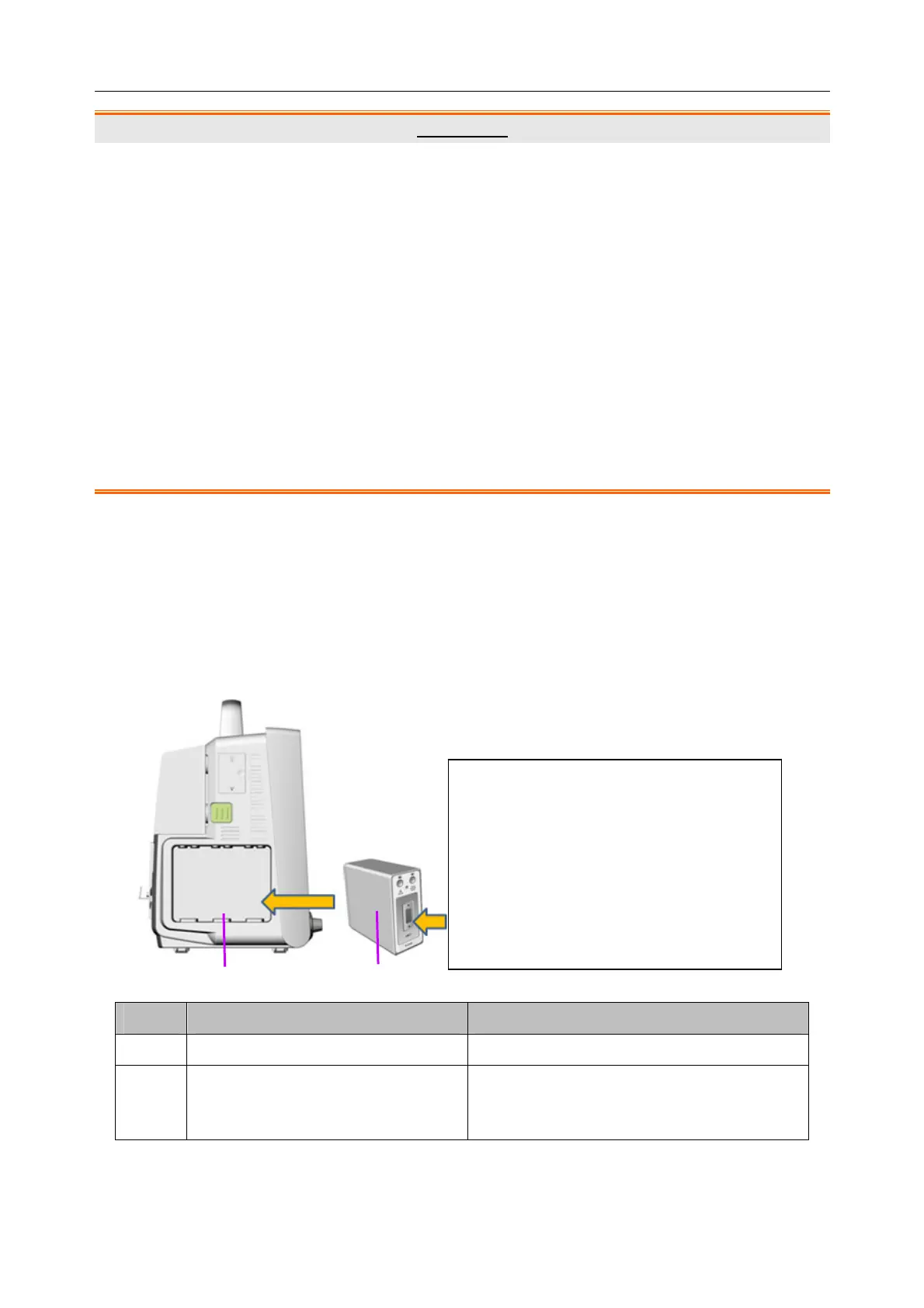

To connect an external device:
1.
Insert the V-Link module into the slot in the monitor.
2.
Connect the external device to the RS232 interface of V-Link module.
No. Name Function
1 eliteV5/V6/V8 Patient Monitor Display measurement results.
2 V-Link Module Connect the monitor and external device;
transmit information from external
device to the monitor.
