Patient Monitor User Manual Basic Operation
- 29 -
3.1.5 iM20
The monitor can be coupled with iM20 patient monitor, where iM20 acts as a multi-measurement
module, providing the measurements, trends, and patient information for the monitor. iM20 is
integrated with functions of multiple measurement modules of ECG, RESP, SpO
2
, TEMP, IBP
and NIBP. You can plug iM20 into elite VX series patient monitor directly (as below picture), or
connect the iM20 to elite VX series patient monitor via the cable.
For detailed information about how to use the monitor with iM20, please refer to the iM20
Patient Monitor User Manual.
3.2 Operating and Navigating
Everything you need to operate the monitor is contained on its screen. Almost every element on
the screen is interactive. Screen elements include measurement values, waveforms, screen keys,
information fields, alarms fields and menus. The configurability of the monitor means that often
you can access the same element in different ways. For example, you might be able to access an
item through its on-screen setup menu, via a hard key, or via a shortcut key. The User Manual
always describes how to access items via an on-screen menu. You may use whichever way you
find most convenient.

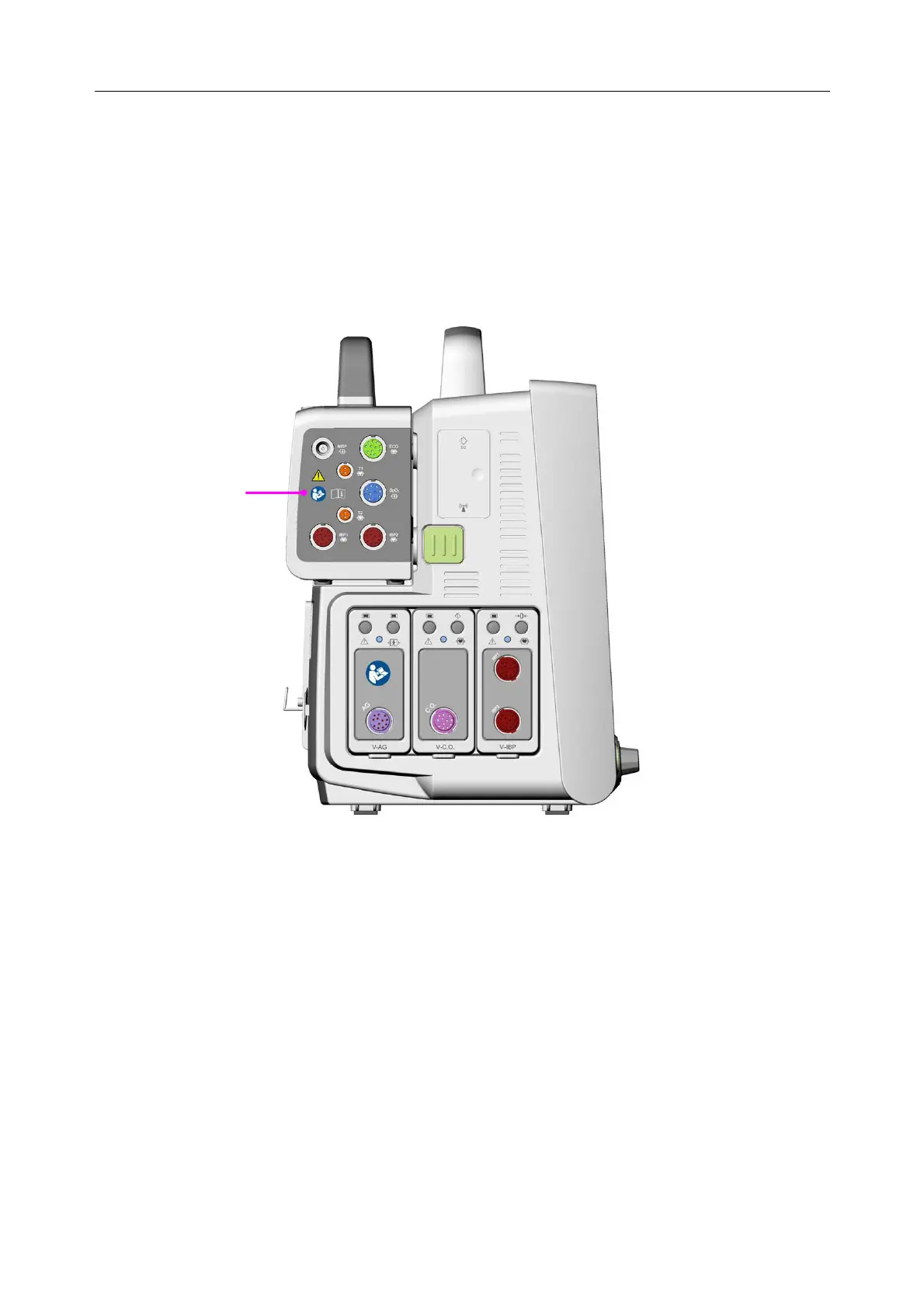

iM20
mounted on
the left of
the monitor
