EDAN elite V6 - Page 45

Patient Monitor User Manual Basic Operation
- 30 -

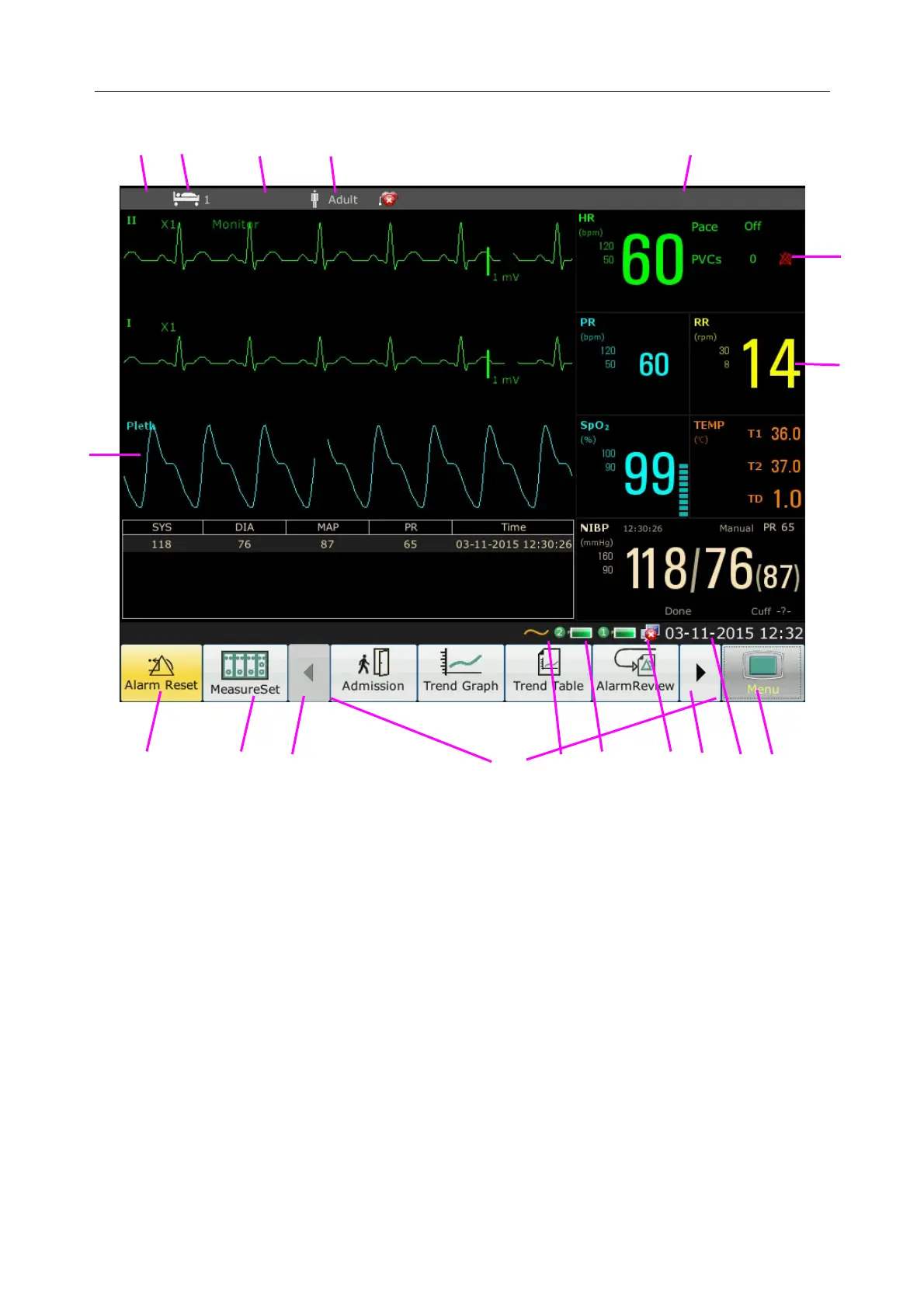

1 Department 10 Measurement setup key
2 Bed number 11 Scroll left to display more shortcut
keys
3 Patient name 12 Shortcut key area
4 Patient type 13 Symbol for AC power supply
5 Alarm status area 14 Symbol for battery status
6 Symbol for alarm off 15 Symbol for networking
7 Measurement value 16 Scroll right to display more
shortcut keys
8 Parameter waveform 17 Date and time
9 Alarm reset key 18 Menu key
1 2 3 4 5
6
7
8
9 10 11 12 13 14 15 16 17 18
