DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
148
Confidential

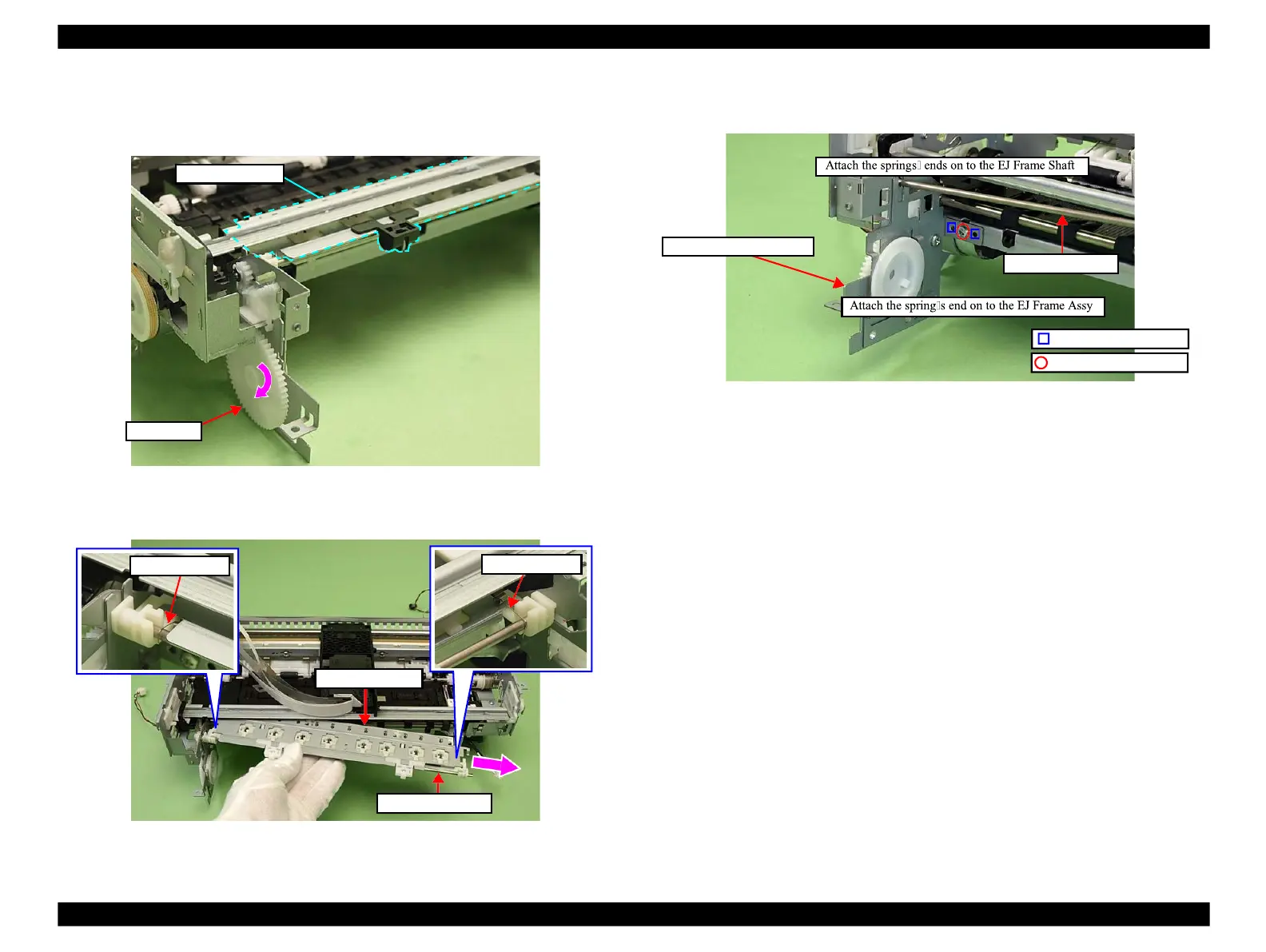

3. While holding the right side of the EJ Frame Assy, turn the Spur Gear on the
left side in the direction of the arrow, and move the EJ Frame Assy to the front
side.
Figure 4-111. Removing the EJ Frame Assy (1)
4. Pull out and remove the EJ Frame Assy from the EJ Frame Shaft.
Figure 4-112. Removing the EJ Frame Assy (2)
5. Remove the screw (x1) that secures the EJ Release Frame Assy L and remove
the EJ Release Frame Assy L with the EJ Frame Shaft.
Figure 4-113. Removing the EJ Release Frame Assy L
Spur Gear
EJ Frame Assy
EJ Frame Shaft
EJ Frame Assy
Grounding spring
Grounding spring
C.B.S. 3x6 (8±1Kgfcm)
Positioning hole & dowel
EJ Frame Shaft
EJ Release Frame Assy L
