4. Disconnect the cables and FFCs connected to the section B of the Main
Board. (See Fig. 4-229.)
5. Remove the screw (x1) that secures the Right Cable Frame and the Main
Board. (See Fig. 4-229.)
6. Remove the screws (x3) that secure the Main Board Unit and remove the
Main Board Unit.

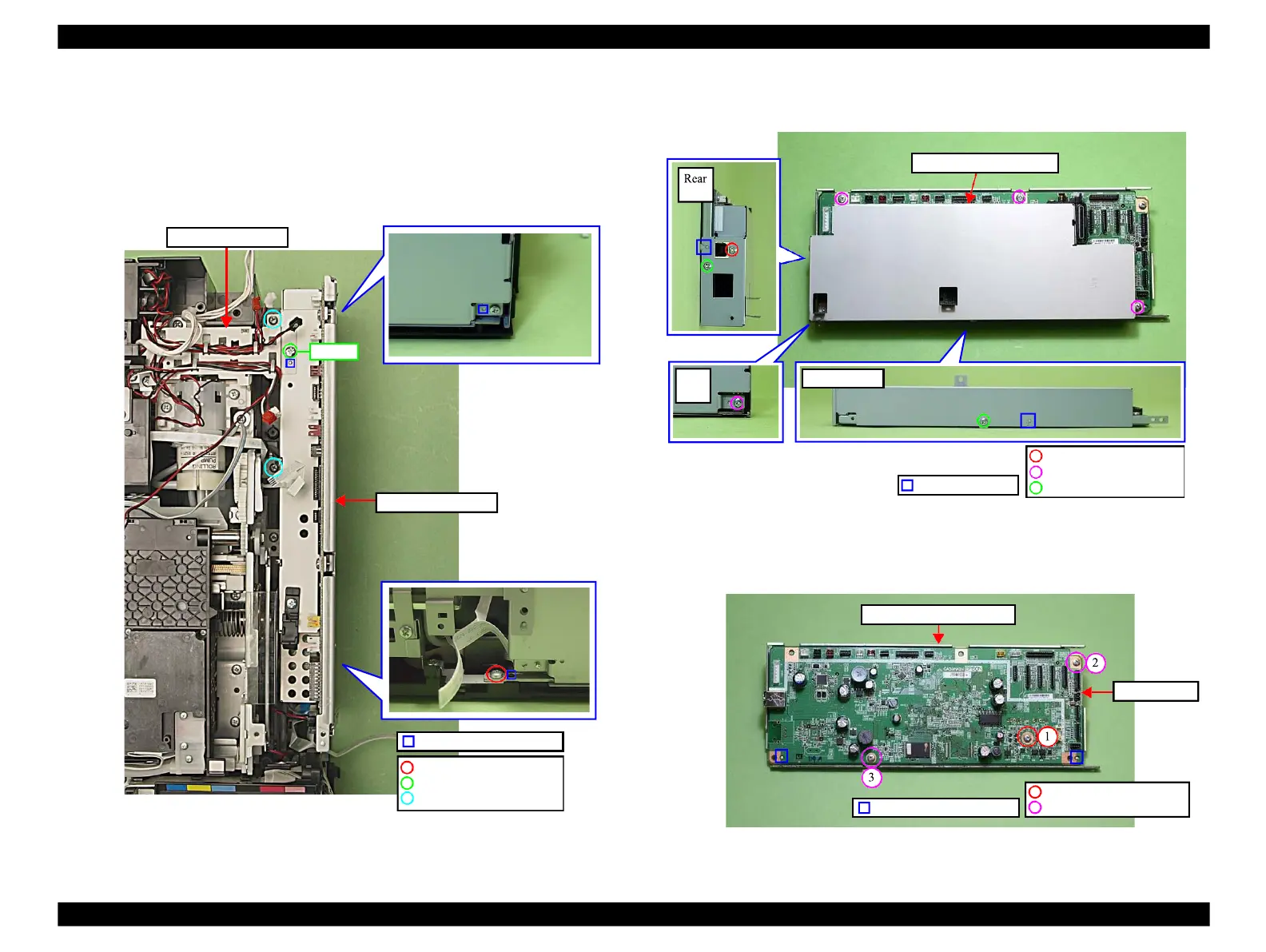

Figure 4-232. Removing the Main Board (1)
7. Remove the screws (x6) that secure the Upper Shield Plate M/B and remove
the Upper Shield Plate M/B.
Figure 4-233. Removing the Main Board (2)
8. Remove the screws (x3) that secure the Main Board, and remove the Lower
Shield Plate M/B from the Main Board.
Figure 4-234. Removing the Main Board (3)
C.B.P. 3x8 (6±1Kgfcm)
C.B.S. 3x6 (7±1Kgfcm)
C.B.P. 3x10 (6±1Kgfcm)
Main Board Unit
Step 5
Right Cable Frame
Positioning hole & dowel
Dowel & groove
side
Back
side
C.P. 3x6 (4±1Kgfcm)
C.B.S. 3x6 (4±1Kgfcm)
C.B.S. 3x6 (8±1Kgfcm)
Bottom side
Upper Shield Plate M/B
Positioning hole & dowel
C.B.S. 3x10 (8±1Kgfcm)
C.B.S. 3x6 (8±1Kgfcm)
Main Board
Lower Shield Plate M/B
