4.
To reduce measurement errors, lift and lower each part
press each part easily.
of the jigs lightly, then
5.
Check all the dial gauges, and adjust the parallelism adjustment bushings within
the standard values in the order of closest to the dial gauge indicating the biggest
value.
Front

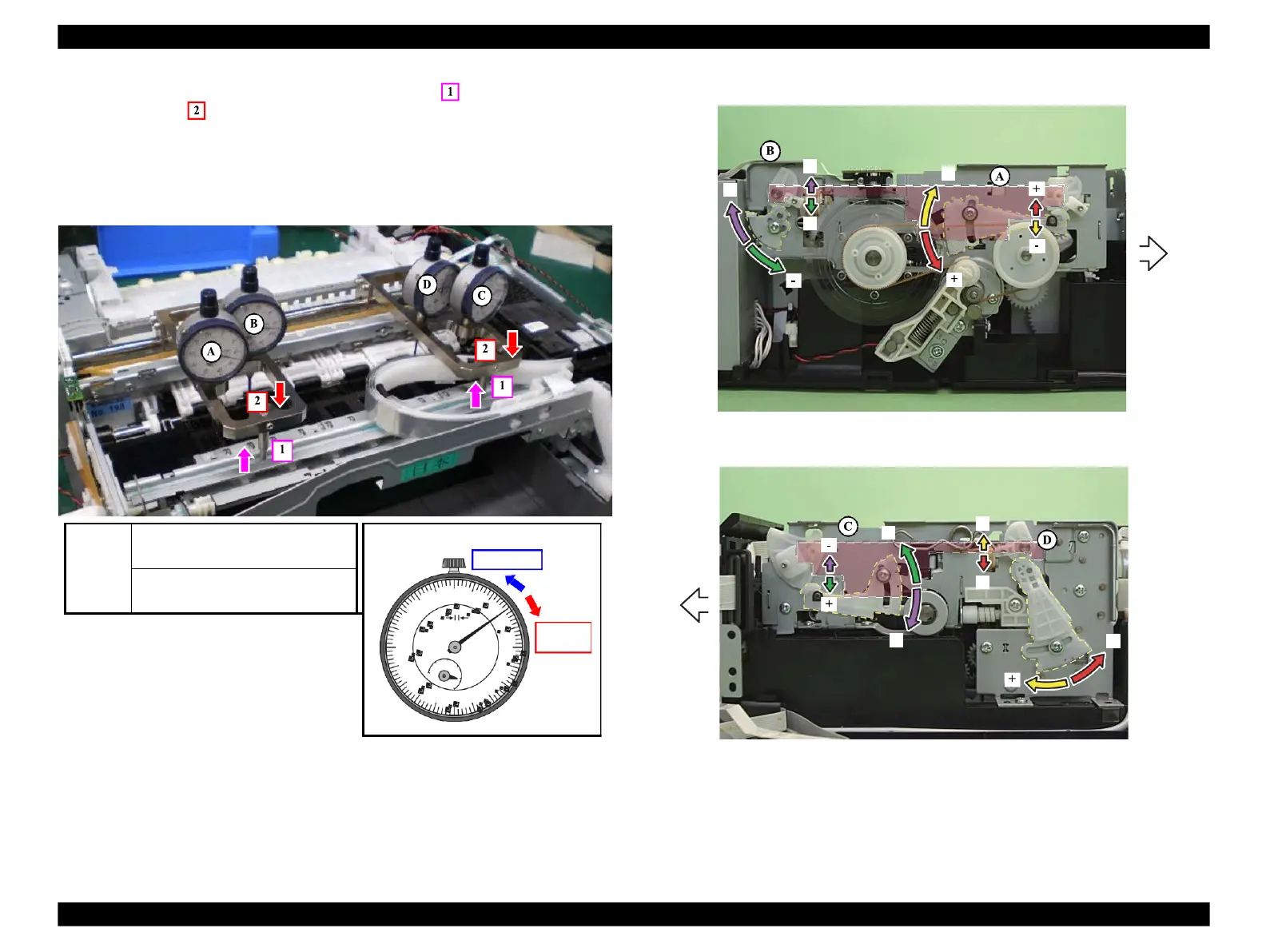

Figure 5-39. Operating the parallelism adjustment bushing (Left side)
Figure 5-38. PG adjustment
Front
Figure 5-40. Operating the parallelism adjustment bushing (Right side)
6.
Tighten the screw of each parallelism adjustment bushing to secure them. ( Fig.
5-34 )
7.
Remove the parallelism adjustment jigs from the printer mechanism.
To Next Page
